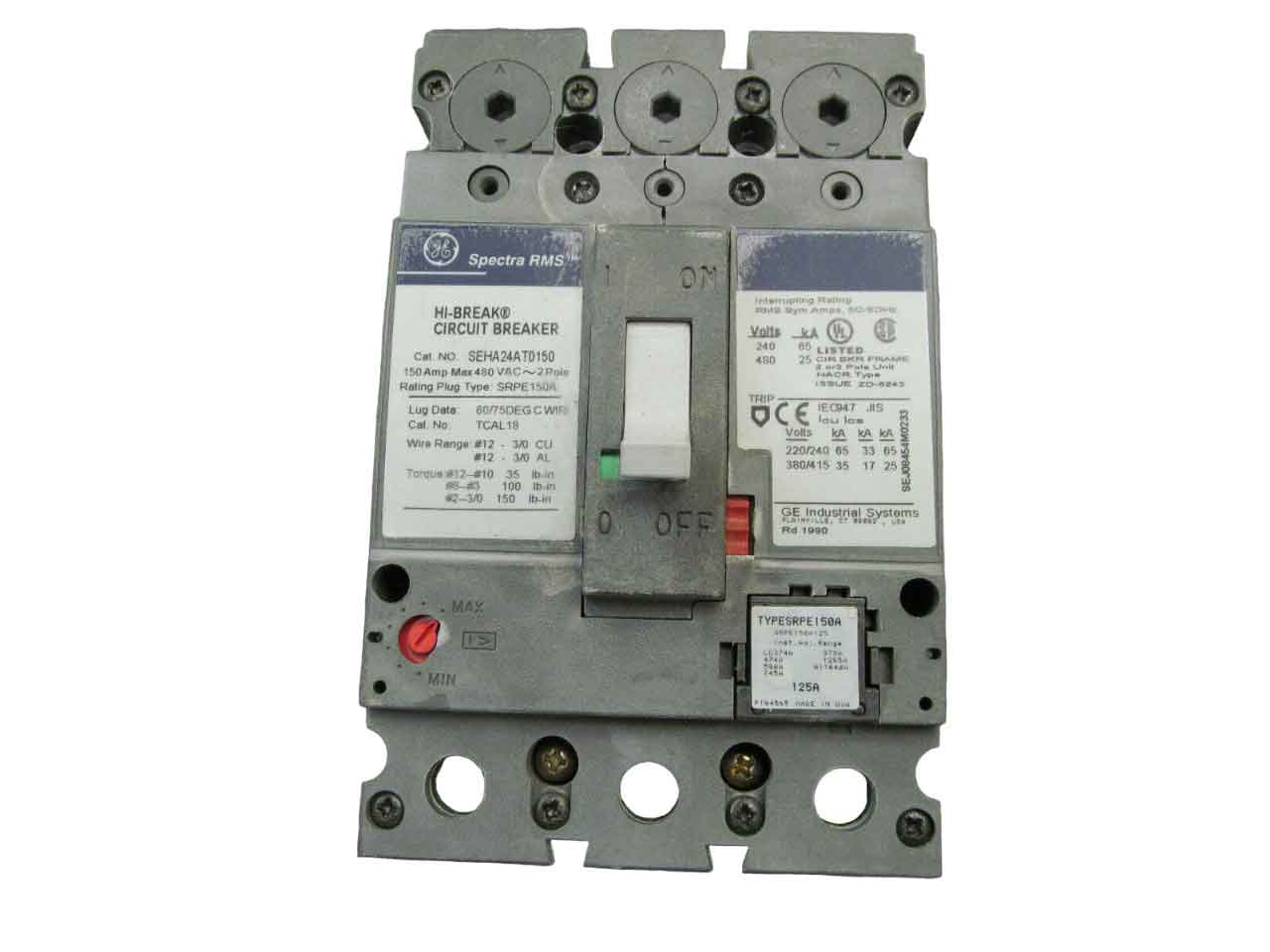

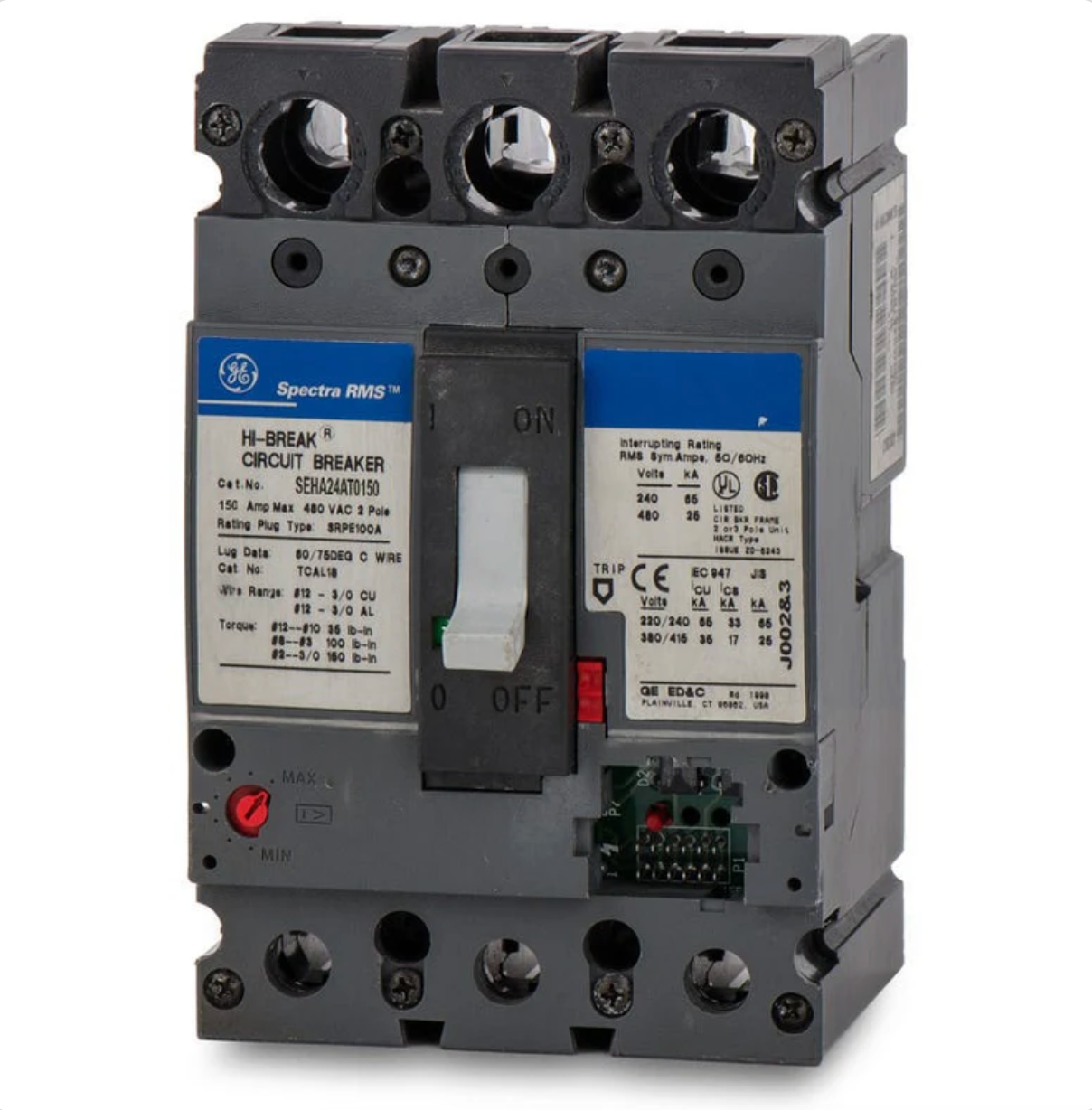

SEHA24AT0150 | General Electric 150A 2-Pole 480V Spectra Series Solid-State Circuit Breaker
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SEHA24AT0150
Description
The General Electric SEHA24AT0150 is a 2-pole solid-state molded case circuit breaker from the Spectra Series, engineered for dependable power distribution and circuit protection in industrial and commercial systems. Rated for 150 amps and 480 VAC, it provides 25 kA interrupting capacity at 480V, ensuring effective protection against overloads and short circuits. Its solid-state electronic trip unit with LSI (Long-Time, Short-Time, and Instantaneous) functions offers precise, adjustable protection for a variety of applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breakers |
| Part Number | SEHA24AT0150 |
| Subcategory | Molded Case Circuit Breakers |
| Series | Spectra RMS |
| Frame Type | E-Frame |
| Rated Current | 150 A |
| Number of Poles | 2 |
| Voltage Rating | 480 VAC |
| Interrupting Rating | 25 kA at 480 VAC |
| Trip Type | Solid-State (LSI: Long-Time, Short-Time, Instantaneous) |
| Connection Type | Bolt-On |
| Terminal Type | Lug (Load Side) |
| Phase | Single-Phase |
| Protection Type | Thermal-Magnetic (Electronic) |
| Standards Compliance | UL, CE, CSA, HACR, RoHS |
| Mounting Style | Bolt-On Panel Mount |
| Suitability for Reverse Feed | Yes |
| Dimensions (HxWxD) | 8.25 x 7.75 x 7 in |
| Operating Voltage Range | 240–480 VAC |
| Approvals | UL Listed, CSA Certified |
| Weight | 1.89 kg (4.17 lb) |
Information About SEHA24AT0150
The SEHA24AT0150 is part of General Electric’s Spectra RMS Series, a line of molded case circuit breakers known for advanced solid-state trip technology and high system reliability. Built with a compact E-frame design, it provides flexible bolt-on connections for secure installation in panelboards and switchgear. This model’s solid-state trip unit enhances coordination and reduces nuisance tripping through precise time-current characteristics. Designed to meet UL, CE, HACR, CSA, and RoHS standards, the SEHA24AT0150 is suitable for demanding environments requiring consistent and efficient circuit protection.
Key Features:
- Solid-State Protection: Utilizes an electronic trip unit for accurate time-current coordination.
- LSI Trip Functions: Provides Long-Time, Short-Time, and Instantaneous trip settings for adaptable protection.
- High Interrupting Rating: Delivers 25 kAIC at 480 VAC for reliable short-circuit interruption.
- Compact E-Frame Design: Enables space-efficient installation in modern distribution systems.
- Bolt-On Connection: Ensures secure mechanical and electrical connections for stability and safety.
- Reverse Feed Suitable: Designed for installation flexibility in various system orientations.
- UL and CE Certified: Complies with major international safety and performance standards.
- Durable Construction: Engineered to withstand heavy industrial usage with consistent performance.
- The SEHA24AT0150 delivers the reliability and precision required for industrial, commercial, and utility-grade circuit protection systems.
