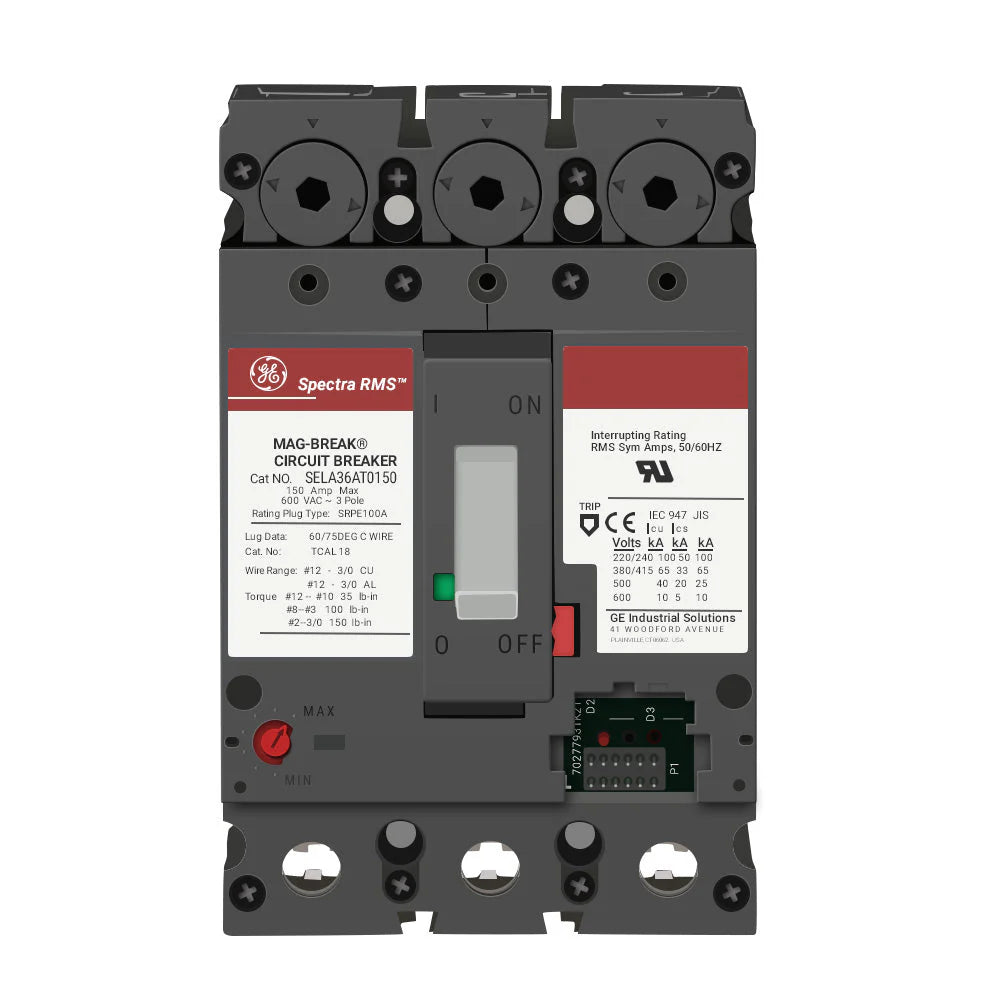

SELA36AT0150 | General Electric pectra Series SELA 3-Pole 150A 600V Solid State Molded Case Circuit Breaker
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SELA36AT0150
Description
The General Electric SELA36AT0150 is a molded case circuit breaker designed for three-phase power distribution systems requiring precise electronic protection. Rated at 150A and 600V, it uses a solid-state trip unit with LSI functions and a bolt-on connection for secure panel installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breaker |
| Part Number | SELA36AT0150 |
| Subcategory | Molded Case Circuit Breaker |
| Family | Spectra Series |
| Type | SELA |
| Voltage Rating | 600 V |
| Current Rating | 150 A |
| Poles | 3 |
| Phase | 3 |
| Protection Type | Solid State |
| Trip Functions | LSI – Long-Time, Short-Time, Instantaneous |
| Connection Type | Bolt-On |
| Interrupting Rating (AIC) | 65 kA @ 480 V |
| Current Limiting | Yes |
| Reverse Feed Suitable | Yes |
| Standards Compliance | UL Listed |
Information About SELA36AT0150
The SELA36AT0150 is a molded case circuit breaker from General Electric’s Spectra Series engineered for advanced system protection in industrial and commercial electrical installations. It is built with a three-pole configuration to support three-phase circuits operating up to 600 volts. The breaker uses a bolt-on mounting method that provides mechanical stability and reliable electrical contact within compatible panelboards. Its solid-state RMS trip unit enables accurate response to overloads and fault conditions through configurable LSI protection functions.
Key Features
- Spectra Series Platform: Designed as part of GE’s Spectra family for standardized high-performance protection.
- Solid-State Trip Technology: Uses an RMS electronic trip unit for precise fault detection.
- LSI Protection Functions: Provides long-time, short-time, and instantaneous trip capabilities.
- High Interrupting Capacity: Rated at 65 kA at 480 V for handling high fault currents.
- Bolt-On Connection: Ensures secure mounting and consistent electrical contact.
- Three-Pole Design: Supports balanced protection in three-phase power systems.
The SELA36AT0150 delivers the reliability and precision required for advanced overcurrent protection in high-capacity three-phase electrical distribution systems.
