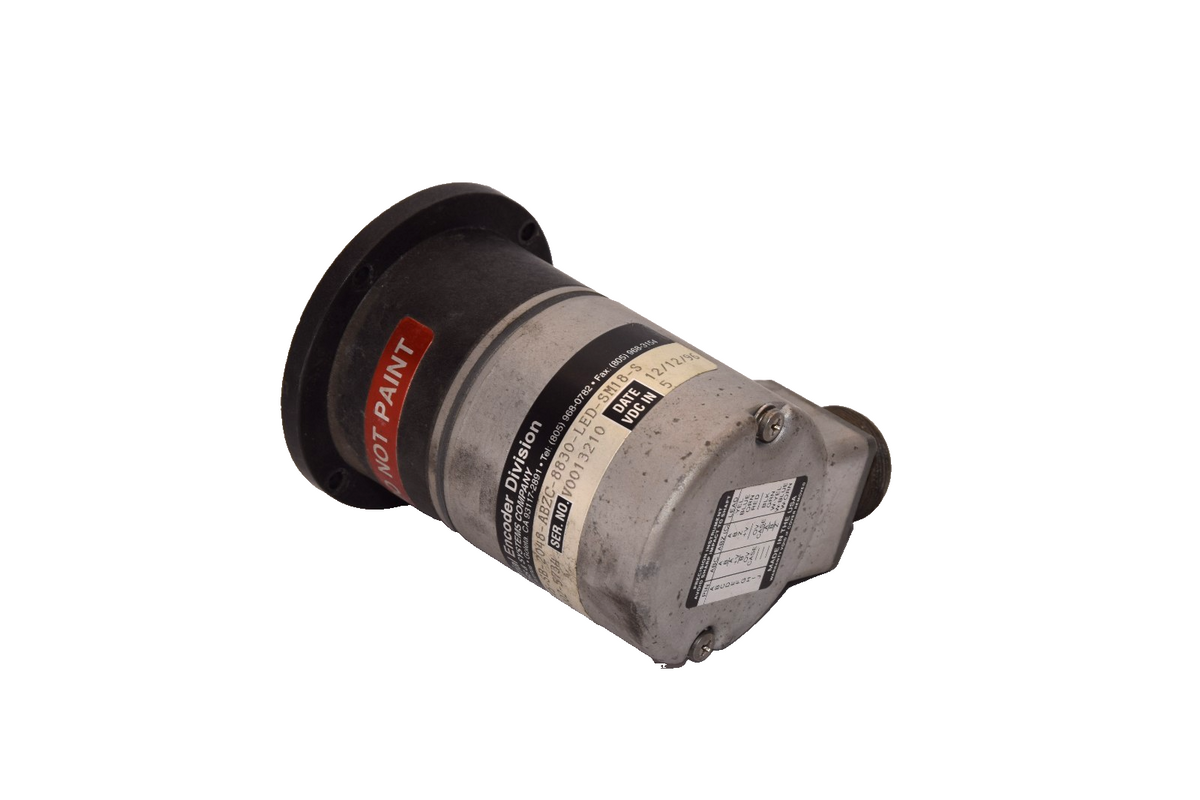

Sensata BEI H25 Optical Encoder 2048 CPT 2.5 Inch Servo Mount 5-28V
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: H25E-F45-SB-2048-ABZC-8830-LED-SM18-S
Description
The Sensata - BEI Sensors H25E-F45-SB-2048-ABZC-8830-LED-SM18-S is a heavy-duty industrial incremental optical encoder engineered for precision speed and position feedback in demanding environments. Featuring a rugged 2.50-inch diameter servo mount design, it delivers 2048 cycles per turn with dual channels, index, and complementary outputs. Operating on a versatile 5-28 VDC input/output range with a convenient side connection, this robust encoder ensures reliable performance under severe mechanical shock and vibration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Sensata - BEI Sensors |
| Category | Sensors & Switches |
| Part Number | H25E-F45-SB-2048-ABZC-8830-LED-SM18-S |
| Subcategory | Encoder / Resolver |
| Series | H25 Heavy-Duty Series |
| Encoder Type | Incremental Optical |
| Housing / Mount Size | 2.50-Inch Diameter Servo Mount |
| Resolution | 2048 Cycles Per Turn (CPT) |
| Output Type | Dual Channels with Index, Complementary Outputs |
| Operating Voltage | 5 to 28 VDC (In/Out) |
| Connection Type | Side Connection |
| Weight | 0.48 kg |
Information About H25E-F45-SB-2048-ABZC-8830-LED-SM18-S
This heavy-duty optical encoder belongs to BEI Sensors' renowned H25 series, built specifically for harsh industrial applications such as factory automation, robotics, motor control, and material handling. Its rugged mechanical construction includes a durable 2.50-inch housing, sealed bearings, and industrial-grade optics designed to resist dust, moisture, and temperature fluctuations. Compatibility covers standard PLC high-speed counter cards, industrial motion controllers, and standard servo mounting configurations. It is widely applied in steel mills, packaging machinery, conveyor systems, and CNC manufacturing equipment.
Key Features:
-
Encoder Type: Heavy-duty industrial incremental optical rotary encoder
-
Product Series: BEI Sensors H25 series with 2.50-inch diameter form factor
-
Mechanical Mounting: 2.50-inch diameter precision servo mount
-
Resolution: 2048 cycles per turn (CPT) high-precision feedback
-
Output Signals: Dual channels with index and complementary signal outputs
-
Electrical Rating: 5-28 Volts input/output voltage compatibility
-
Electrical Connection: Convenient side connection layout for easy wiring routing
-
Construction Weight: Sturdy heavy-duty industrial build weighing 0.48 kg
The H25E-F45-SB-2048-ABZC-8830-LED-SM18-S delivers the high resolution, durability, and signal integrity required for precise motion control applications.
