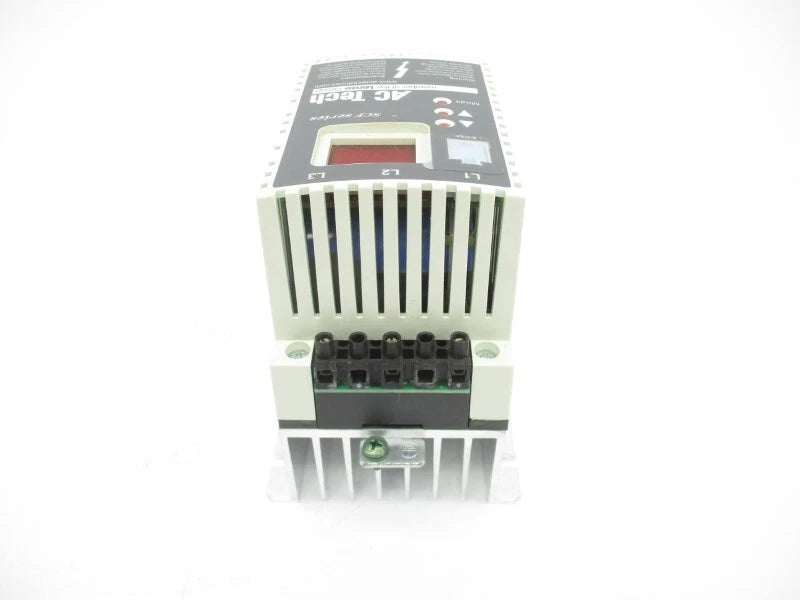

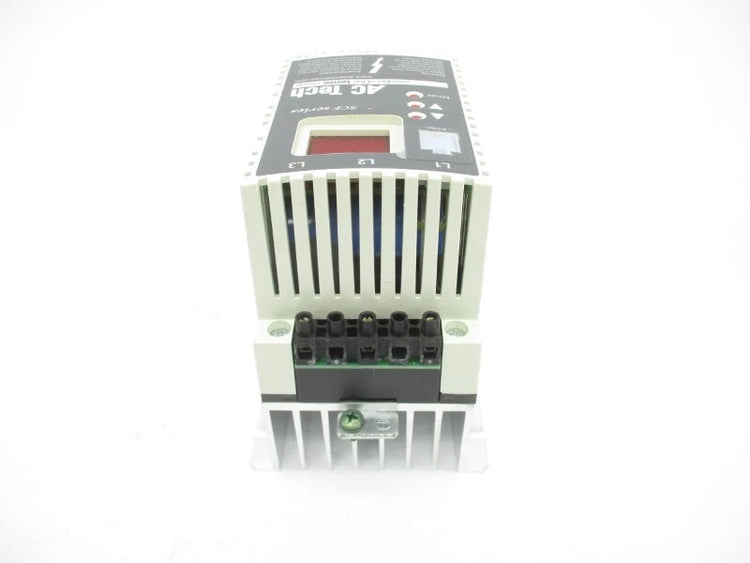

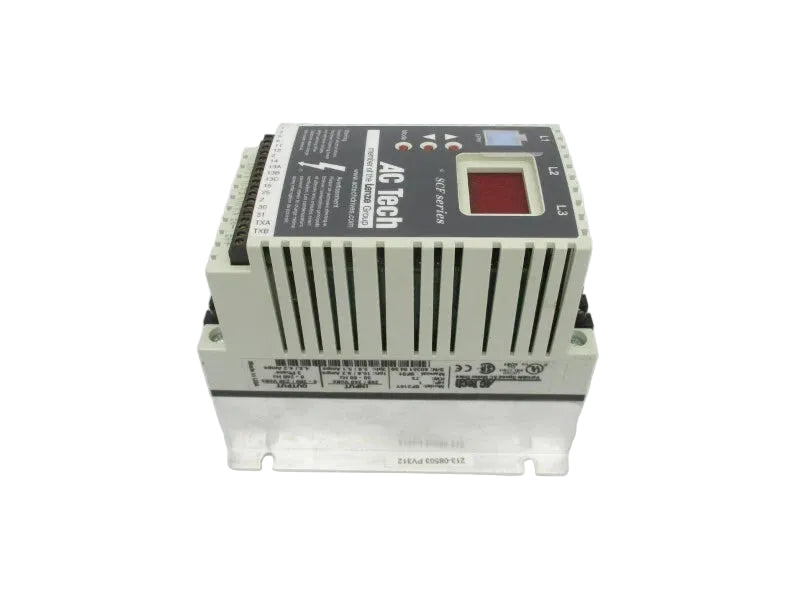

SF210Y | Lenze SCF Series 1HP AC Motor Drive 208–240VAC DIN Rail
- Regular price
- $3,799.00
- Sale price
- $3,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SF210Y
Description
The Lenze SF210Y is a compact AC motor drive from the SCF Series designed for precise variable speed control of 1 HP (0.75 kW) motors. Operating on 208/240 VAC at 50/60 Hz with single-phase or three-phase input, it delivers three-phase 240 VAC output for industrial motor applications. This frequency inverter supports advanced control modes and DIN rail mounting for efficient panel integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze / AC Tech |
| Category | Drives & Motor Control |
| Part Number | SF210Y |
| Subcategory | AC Drives |
| Series | SCF Series |
| Horsepower | 1.0 HP |
| Power Rating | 0.75 kW |
| Input Voltage | 200–240 VAC |
| Output Voltage | 240 VAC |
| Input Phase | Single-Phase or Three-Phase |
| Output Phase | Three-Phase |
| Rated Current | 4.2 A |
| Frequency | 50/60 Hz |
| Enclosure Rating | IP20 |
| Mounting Type | DIN Rail Mount |
| Communication | Modbus RTU (RS-485) |
| Operating Modes | Sensorless Vector, V/Hz Speed Control, Constant & Variable Torque Control |
| Analog Inputs | 1 (0–10 VDC), 1 (4–20 mA) |
| Analog Outputs | 2 (0–10 VDC / 2–10 VDC / 4–20 mA) |
| Digital Inputs | 5 (NPN) |
| Digital Outputs | 1 Relay, 2 NPN |
| Integrated EPM Module | Yes |
| Integrated Keypad | Yes |
| Height | 6 in |
| Width | 3 in |
| Depth | 5 in |
| Weight | 3 lbs |
Information About SF210Y
The SF210Y is a variable frequency drive engineered by Lenze / AC Tech as part of the SCF Series for compact automation systems. It supports 200–240 VAC input with both single-phase and three-phase configurations, converting power to a three-phase 240 VAC output for motor operation. Designed with IP20 enclosure protection and DIN rail mounting capability, it integrates easily into control cabinets with limited space. The unit features sensorless vector control technology, integrated Modbus RTU (RS-485) communication, and an embedded EPM module for parameter management and configuration flexibility.
Key Features:
- 1 HP / 0.75 kW Rating: Designed to control motors up to 1 horsepower in industrial applications.
- Flexible Input Configuration: Accepts single-phase or three-phase 200–240 VAC supply.
- Three-Phase Output: Delivers 240 VAC three-phase output for reliable motor operation.
- Multiple Control Modes: Supports sensorless vector, V/Hz speed control, and constant or variable torque control.
- Integrated Modbus RTU: Built-in RS-485 communication for networked control and monitoring.
- Comprehensive I/O Interface: Includes analog inputs (0–10 VDC, 4–20 mA), analog outputs, digital inputs (NPN), and relay/NPN outputs.
- DIN Rail Mount Design: Compact housing for efficient panel installation.
- Integrated EPM Module & Keypad: Enables parameter storage, duplication, and local configuration access.
The SF210Y delivers the reliability and precision required for variable speed motor control in compact industrial automation systems.
