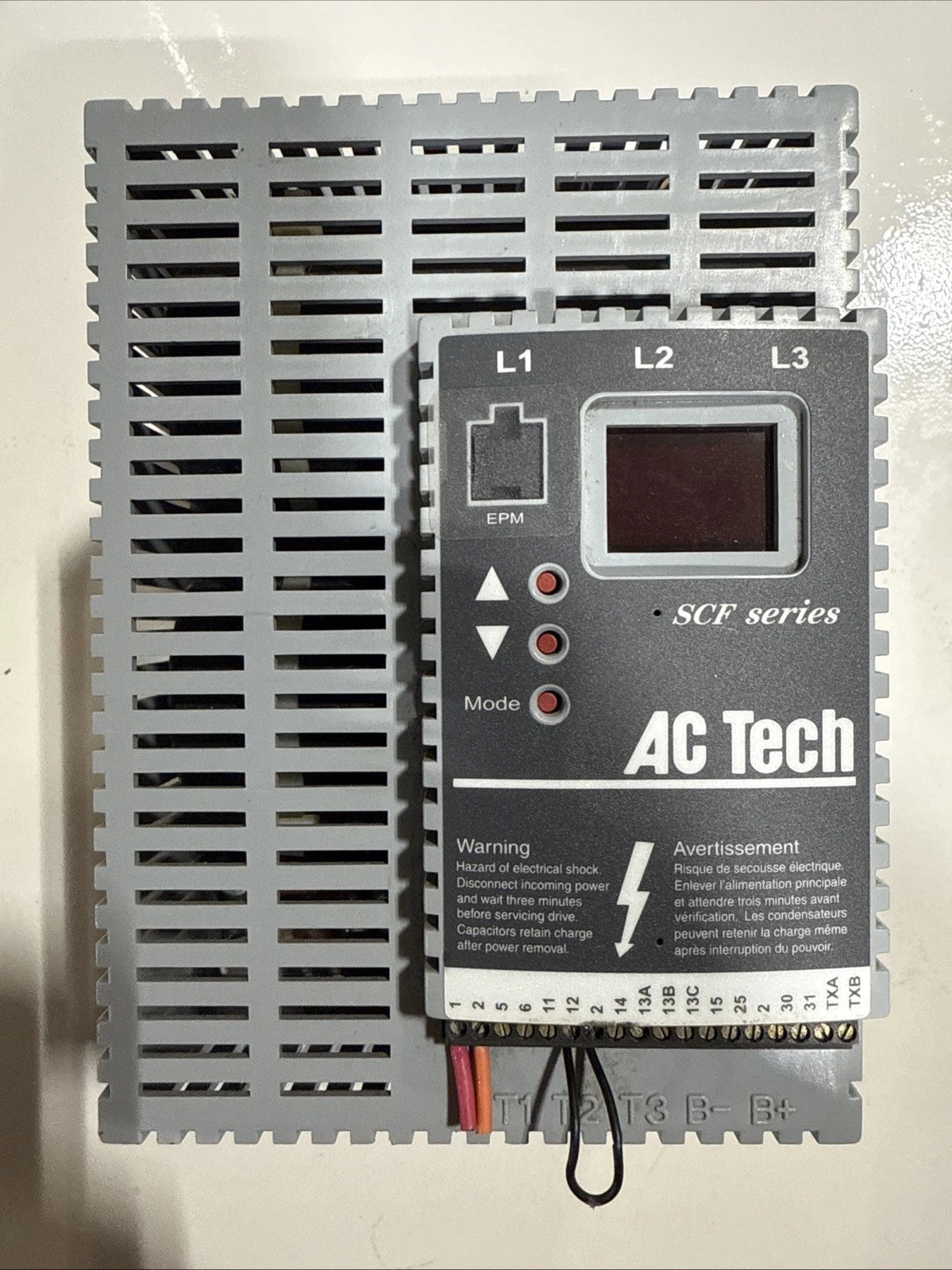

SF250Y | Lenze SCF 5HP 208–240V Variable Frequency Drive IP20
- Regular price
- $2,299.00
- Sale price
- $2,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SF250Y
Description
The Lenze SF250Y is an SCF Series variable frequency drive designed for 208–240 VAC motor control applications. Rated at 5 HP (3.7 kW), it accepts single-phase or three-phase input and delivers three-phase output with a rated current of 15.2 A. The compact IP20 drive is intended for panel or DIN rail mounting in industrial control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze / AC Tech |
| Category | Drives |
| Part Number | SF250Y |
| Subcategory | Drive |
| Series | SCF Series |
| Rated Power | 5 HP (3.7 kW) |
| Input Voltage | 200–240 VAC |
| Input Phase | 1 or 3 Phase |
| Output Voltage | 0–200/230 VAC |
| Output Phase | 3 Phase |
| Rated Output Current | 15.2 A |
| Input Frequency | 50/60 Hz |
| Control Modes | Sensorless Vector, V/Hz, Constant & Variable Torque |
| Communication | Modbus RTU (RS-485) |
| Enclosure Rating | IP20 |
| Mounting Type | Panel Mount / DIN Rail |
| Weight | 6.00 lbs |
Information About SF250Y
The SF250Y belongs to the Lenze / AC Tech SCF Series of sub-micro frequency inverters developed for compact automation installations. It operates on a 200–240 VAC supply and supports both single-phase and three-phase input configurations. The drive provides sensorless vector control, V/Hz control, and torque control modes for flexible motor performance. Designed for panel-mounted use with IP20 protection, it integrates Modbus RTU communication and local keypad operation for system configuration and monitoring.
Key Features:
-
SCF Series Platform: Compact sub-micro AC drive architecture.
-
5 HP (3.7 kW) Rating: Suitable for light- to medium-duty motor control.
-
200–240 VAC Input: Accepts single-phase or three-phase supply.
-
3-Phase Output: Provides regulated motor power up to 15.2 A.
-
Sensorless Vector Control: Supports accurate speed and torque regulation.
-
Modbus RTU Communication: RS-485 interface for automation integration.
-
Integrated Keypad and EPM Module: Local configuration and parameter storage.
-
DIN Rail / Panel Mount Design: Space-efficient installation.
-
IP20 Enclosure: Intended for indoor cabinet environments.
The SF250Y delivers the reliability and precision required for compact industrial variable frequency drive applications.
