SFP-10G-SR | Cisco Transceiver Module
- Regular price
- $104.00
- Sale price
- $104.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SFP-10G-SR
Description
The Cisco SFP-10G-SR is a 10 Gigabit Ethernet SFP+ transceiver module designed for short-range multimode fiber (MMF) connections.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Telecommunication Accessories
|
| Part Number | SFP-10G-SR |
| Subcategory |
Telecom Modulators
|
| Form Factor | SFP+ |
|
Wavelength
|
850nm |
|
Connector
|
Duplex LC |
| Transmitter Type | VCSEL |
| TX Power | -7.3~-1dBm |
| Power Budget | 3.8dB |
| Typical Power Consumption | ≤1W |
| Core Size | 50/125µm |
| Max Data Rate | 10.3125Gbps |
| Max Cable Distance | 300m@OM3/400m@OM4 |
| Receiver Type | PIN |
| Receiver Sensitivity | < -11.1dBm |
| Receiver Overload | -1dBm |
| Extinction Ratio | >3dB |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Weight | 0.16 kgs |
Information About SFP-10G-SR
SFP-10G-SR stands for Small Form-factor Pluggable 10 Gigabit Short Range. It's a type of optical transceiver module used in data communication and telecommunication networks to transmit and receive data over optical fiber.
Key Features:
-
Data Rate: Supports 10 Gbps Ethernet (10GBASE-SR).
-
Distance Support:
-
Up to 300 meters over OM3 multimode fiber.
-
Up to 400 meters over OM4 multimode fiber.
-
Around 26–33 meters over OM2 fiber.
-
-
Wavelength: Operates at 850 nm (short wavelength).
-

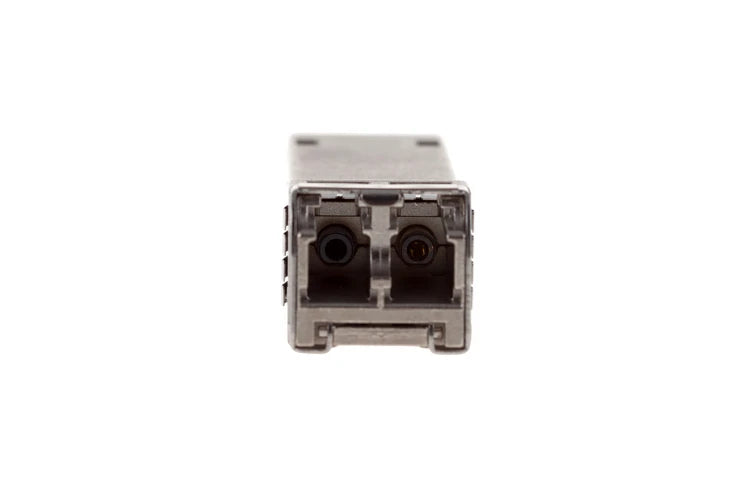

Connector Type: LC duplex (common in fiber optics).
-
Form Factor: SFP+ (enhanced version of standard SFP).
-
Compatibility: Hot-pluggable with SFP+ ports; interoperable with most major switch and router brands (e.g., Cisco, Juniper, HP, Dell), though some may require vendor-specific firmware or coded transceivers.
-
Power Consumption: Typically <1W.
Description
The Cisco SFP-10G-SR is a 10 Gigabit Ethernet SFP+ transceiver module designed for short-range multimode fiber (MMF) connections.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Telecommunication Accessories
|
| Part Number | SFP-10G-SR |
| Subcategory |
Telecom Modulators
|
| Form Factor | SFP+ |
|
Wavelength
|
850nm |
|
Connector
|
Duplex LC |
| Transmitter Type | VCSEL |
| TX Power | -7.3~-1dBm |
| Power Budget | 3.8dB |
| Typical Power Consumption | ≤1W |
| Core Size | 50/125µm |
| Max Data Rate | 10.3125Gbps |
| Max Cable Distance | 300m@OM3/400m@OM4 |
| Receiver Type | PIN |
| Receiver Sensitivity | < -11.1dBm |
| Receiver Overload | -1dBm |
| Extinction Ratio | >3dB |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Weight | 0.16 kgs |
Information About SFP-10G-SR
SFP-10G-SR stands for Small Form-factor Pluggable 10 Gigabit Short Range. It's a type of optical transceiver module used in data communication and telecommunication networks to transmit and receive data over optical fiber.
Key Features:
-
Data Rate: Supports 10 Gbps Ethernet (10GBASE-SR).
-
Distance Support:
-
Up to 300 meters over OM3 multimode fiber.
-
Up to 400 meters over OM4 multimode fiber.
-
Around 26–33 meters over OM2 fiber.
-
-
Wavelength: Operates at 850 nm (short wavelength).
-
Connector Type: LC duplex (common in fiber optics).
-
Form Factor: SFP+ (enhanced version of standard SFP).
-
Compatibility: Hot-pluggable with SFP+ ports; interoperable with most major switch and router brands (e.g., Cisco, Juniper, HP, Dell), though some may require vendor-specific firmware or coded transceivers.
-
Power Consumption: Typically <1W.
