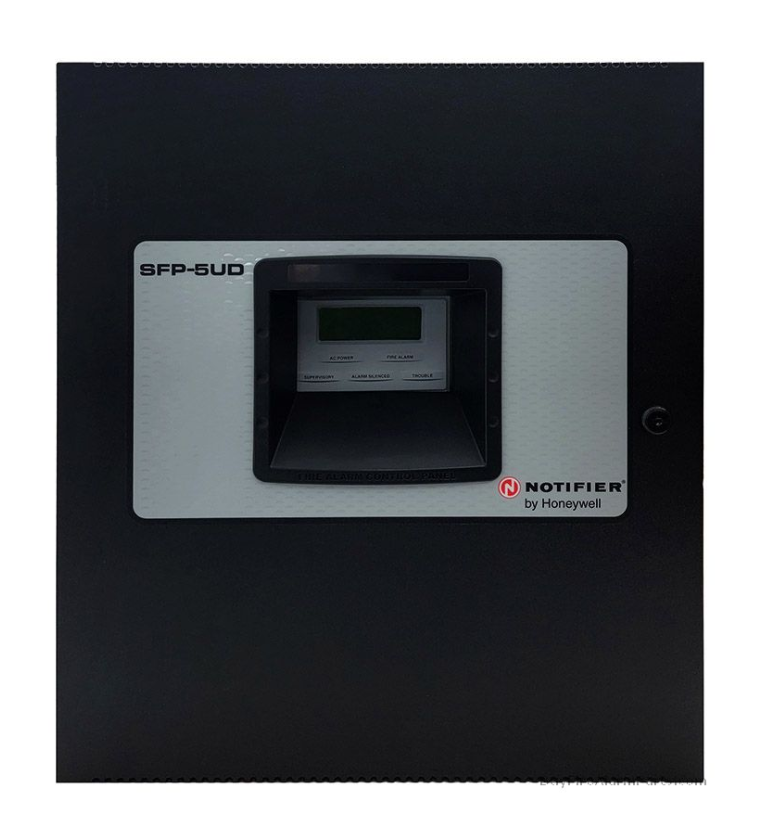

SFP-5UD | Notifier Conventional Fire Alarm Control Panel
- Regular price
- $1,544.00
- Sale price
- $1,544.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SFP-5UD
Description
The Notifier SFP-5UD is a 5-zone conventional fire alarm control panel that combines robust detection capability with a built-in digital alarm communicator. It delivers reliable protection for small to medium-sized buildings, with user-friendly features and expandability options.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Notifier |
| Category |
Controls & Indicators
|
| Part Number | SFP-5UD |
| Subcategory | CPU/Control Board |
| Detection Zones | 5 Class B (Class A optional with N-CAC-5X) |
| Notification Appliance Circuits | 4 Class B (2.5 A each, Class A optional) |
| Power Supply | 3.0 Amps total |
| Communicator | Built-in DACT (dual line), optional IP |
| Annunciator Support | Up to 8 ANN-BUS devices |
| Display | 80-character LCD |
| Printer Interface | Serial and parallel |
| Cabinet | Red backbox (SFP-5UDR) or standard |
| Certification |
UL (S635), FM, CSFM (7165-0028:246), MEA (333-07-E) |
| Weight | 15.00 lbs |
Information About SFP-5UD
The SFP-5UD is a UL-listed conventional FACP with support for five Class B zones and optional Class A conversion using the N-CAC-5X module. It features four NAC outputs, programmable for various notification appliance types, and a 3.0 amp system power supply. The system supports up to eight ANN-BUS devices, including remote LCD annunciators. Built-in upload/download functionality enables remote configuration, and the DACT communicator provides dual phone line alarm reporting. An optional IP communicator allows enhanced monitoring flexibility.
Key Features:
- Five Detection Zones: Supports five Class B (or optional Class A) Initiating Device Circuits for zone-based fire detection.
- Four Notification Circuits: Includes four Class B NACs rated at 2.5 A (Class A conversion optional), for horns, strobes, and other alerting devices.
- Integrated DACT Communicator: Sends alarm, trouble, and supervisory signals over telephone lines to central stations.
- 3.0 Amp Power Supply: Provides reliable power for initiating devices, NACs, and system components.
- ANN-BUS Support: Connects up to eight annunciators or auxiliary devices via the ANN-BUS protocol.
- Onboard LCD Interface: Large 80-character display with built-in keypad for local status and programming.
- Remote Programming: Supports uploading and downloading system configurations via modem connection.
- Optional IP Communication: Enhances connectivity and reliability with modern communication methods.
- Compact Design: Fits well in small control rooms or wall-mount applications.
- Agency Certifications: UL, FM, CSFM, and NYC MEA certified for code-compliant installations.
The SFP-5UD offers reliable zone-based fire detection with flexible communication, ample power, and easy programming in a compact design.
