SG550XG-8F8T-K9-NA | Cisco L3 Managed Switch 16 Ports

Description

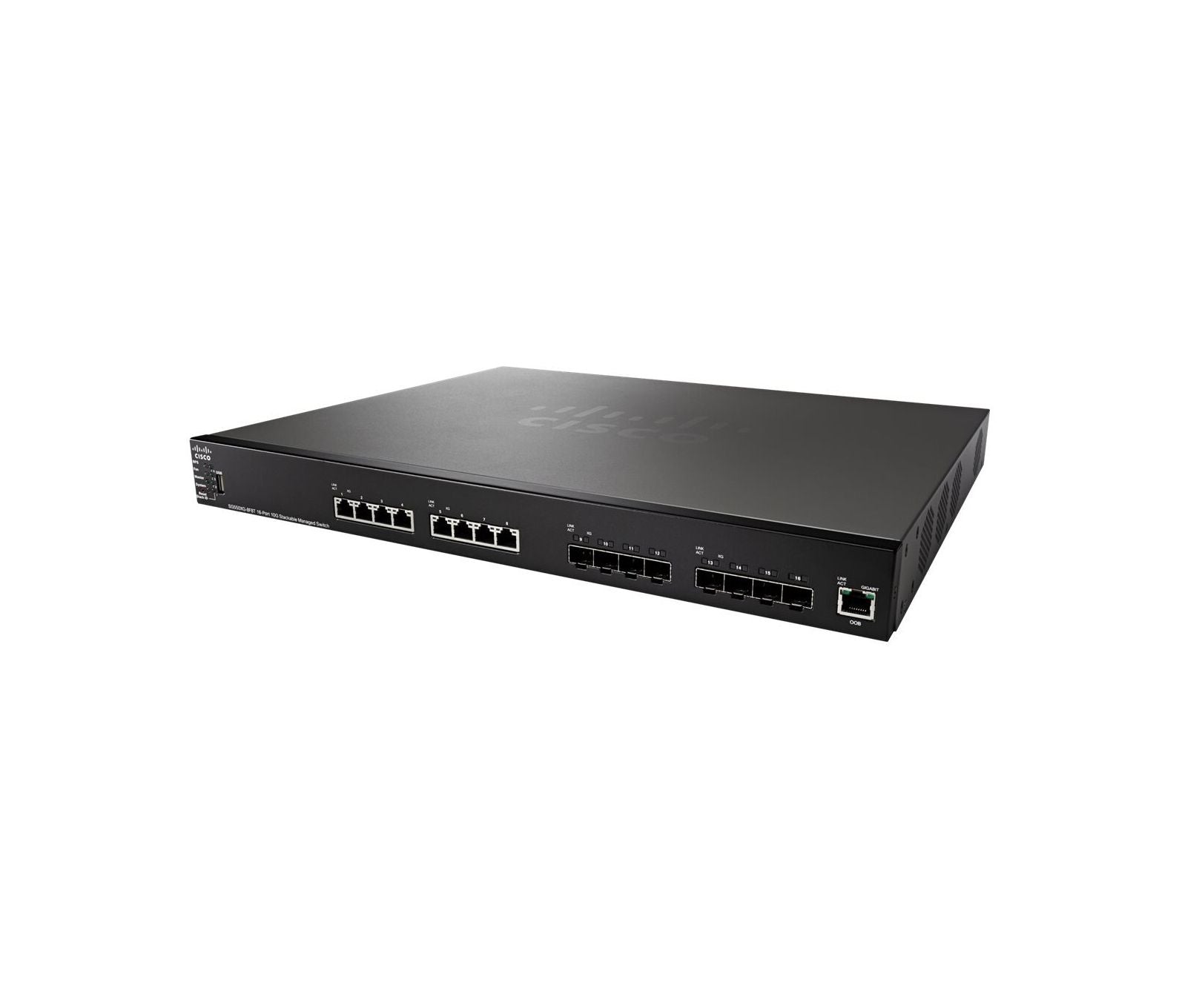

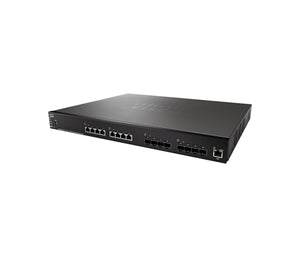

The SG550XG-8F8T-K9-NA is a Cisco 550XG Series 16-port Layer 3 managed switch that combines eight 10GBase-T copper ports and eight SFP+ fiber uplink ports. Designed for high-performance small business and branch office networks, it delivers advanced routing, strong security, and rich manageability for demanding network environments.

Technical Specifications

Information About SG550XG-8F8T-K9-NA

The Cisco SG550XG-8F8T-K9-NA is an enterprise-class switch built for high-bandwidth aggregation and core-level switching in growing business networks. With 8 x 10GBase-T and 8 x SFP+ 10G ports, it enables flexible connectivity using both twisted-pair copper and fiber-optic media types, supporting 10 Gigabit Ethernet end-to-end. Equipped with full Layer 3 routing functionality, the switch supports up to 8000 IPv4 static routes, 4000 IPv6 static routes, 4094 VLANs, and advanced protocols including RIP, IGMP, and VRRP, ensuring seamless interoperability in multi-device environments.

Key Features:

• 16 Total Ports: 8 x 10GBase-T copper + 8 x 10G SFP+ uplink slots.

• Flexible Media Support: Optical fiber and twisted pair for deployment versatility.

• Layer 3 Capabilities: Static routing for both IPv4 (8000 routes) and IPv6 (4000 routes).

• Rich Protocol Support: RIP, IGMP, VRRP for robust and intelligent routing.

• Advanced VLANs and ACLs: Supports up to 4094 VLANs and 2000 ACL rules.

• High-Capacity MAC Table: Up to 64,000 MAC addresses for scalable growth.

• Enterprise-Grade QoS: 8 hardware queues ensure smooth traffic prioritization.

The SG550XG-8F8T-K9-NA combines high-density 10G connectivity with advanced Layer 3 features to support scalable and secure business networks.
