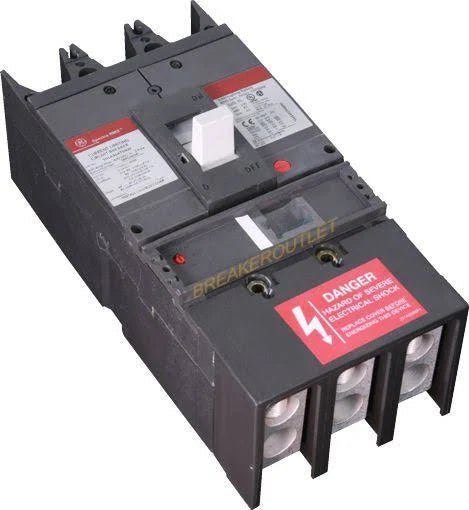

SGLA36AT0600 | GE Spectra 600A 3-Pole 600V SG600 Electronic LSI Molded Case Circuit Breaker
- Regular price
- $7,125.00
- Sale price
- $7,125.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SGLA36AT0600
Description
The General Electric SGLA36AT0600 is a 600-amp, 3-pole molded case circuit breaker engineered for high-capacity protection in 600-volt electrical systems. Featuring a solid-state interchangeable LSI trip unit, it provides precise Long-Time, Short-Time, and Instantaneous protection for demanding installations. Designed within the Spectra Series SG600 frame, the SGLA36AT0600 delivers 65 kA interrupting capability at 480V and supports bolt-on mounting for secure panel integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breaker |
| Part Number | SGLA36AT0600 |
| Subcategory | Molded Case Circuit Breaker |
| Manufacturer | General Electric |
| Type | SGLA |
| Frame | SG600 |
| Amperage Rating | 600 A |
| Poles | 3 |
| Phase | 3-Phase |
| Voltage Rating | 600 VAC |
| Trip Type | Electronic LSI / Interchangeable |
| Functions | LSI – Long-Time, Short-Time, Instantaneous |
| Protection | Solid-State Electronic |
| Interrupt Rating | 65 kA @ 480V |
| Connection Type | Bolt-On |
| Actuator Type | Pivot / Toggle Handle |
| Frequency Rating | 50–60 Hz |
| Material | Molded Plastic Case |
| Enclosure Compatibility | NEMA 1 / 3R / 4 / 4X / 12 |
| Mounting Type | Panel |
| Dimensions | 5.5" W × 3.81" D × 10.09" H |
| Temperature Rating | 104°F |
| Wire Size Range | 2/0 AWG to 500 kcmil; 8 AWG to 600 kcmil; 6 AWG to 600 kcmil |
| Application | Industrial and commercial high-capacity distribution |
Information About SGLA36AT0600
The SGLA36AT0600 is part of GE’s Spectra Series lineup, utilizing the SG600 frame to support high-current applications requiring dependable electronic protection. It features a solid-state LSI trip system capable of delivering accurate RMS sensing for both sinusoidal and non-sinusoidal currents. The breaker installs using a bolt-on connection method and supports reverse-fed applications, enhancing flexibility for various system configurations. Designed for industrial-grade environments, its 600A current capacity, 600V rating, and 65 kA interrupting capability at 480V make it suitable for rigorous commercial and industrial power distribution requirements.
Key Features
- 600A molded case protection: Supports high-capacity three-phase distribution circuits.
- Spectra Series SG600 frame: Built for robust industrial electrical systems.
- Solid-state LSI trip unit: Provides Long-Time, Short-Time, and Instantaneous protection.
- High interrupting rating: 65 kA at 480V for demanding fault conditions.
- Current-limiting design: Reduces available short-circuit energy.
- Bolt-on mounting: Enables secure installation within panel assemblies.
- Reverse-feed capable: Supports additional flexibility in system design.
- NEMA enclosure compatibility: Usable within Types 1, 3R, 4, 4X, and 12 environments.
The SGLA36AT0600 delivers the reliability and precision required for high-capacity protection in Spectra Series industrial power systems.
