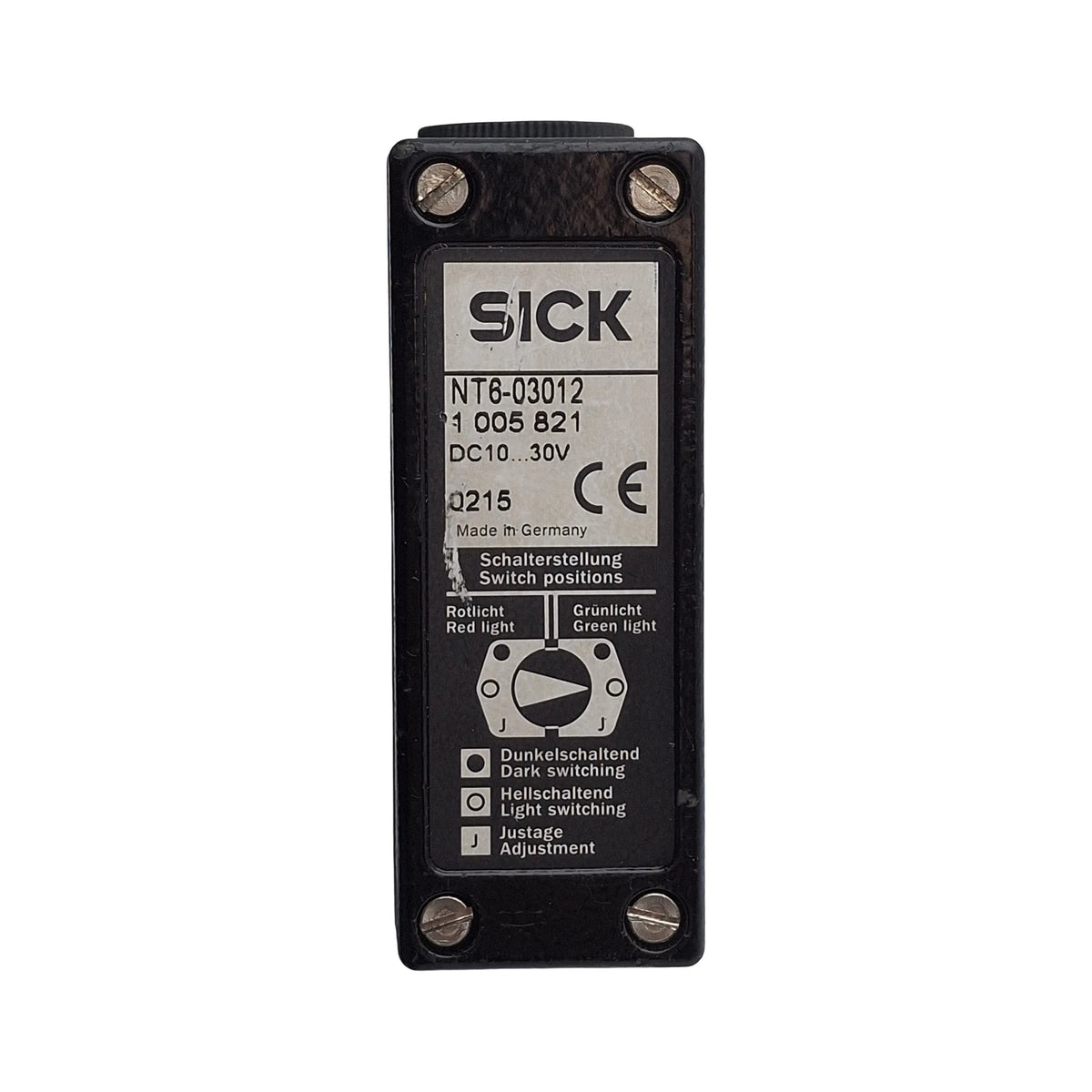

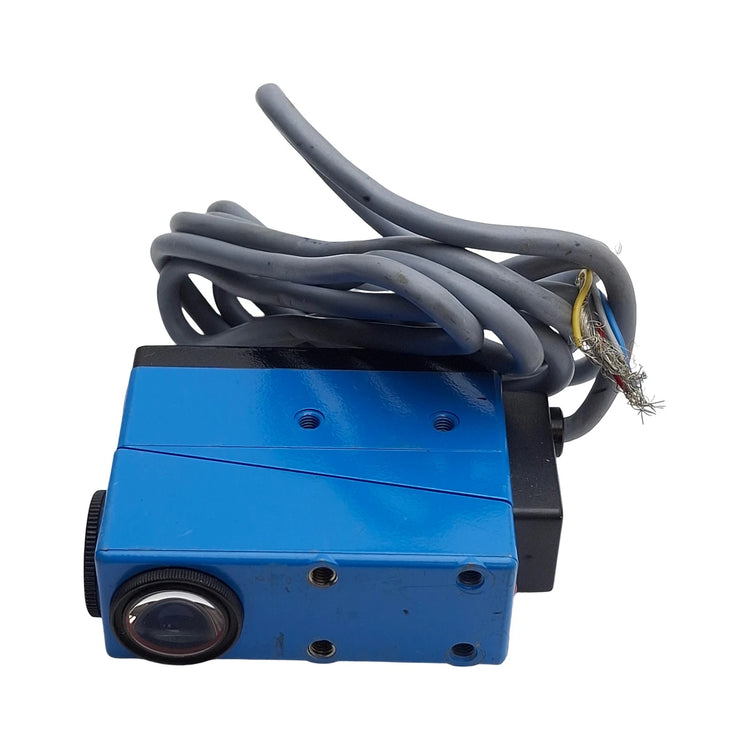

SICK 1005821 NT6-03012 Contrast Sensor for Print Mark Detection
- Regular price
- $1,135.00
- Sale price
- $1,135.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1005821
Description

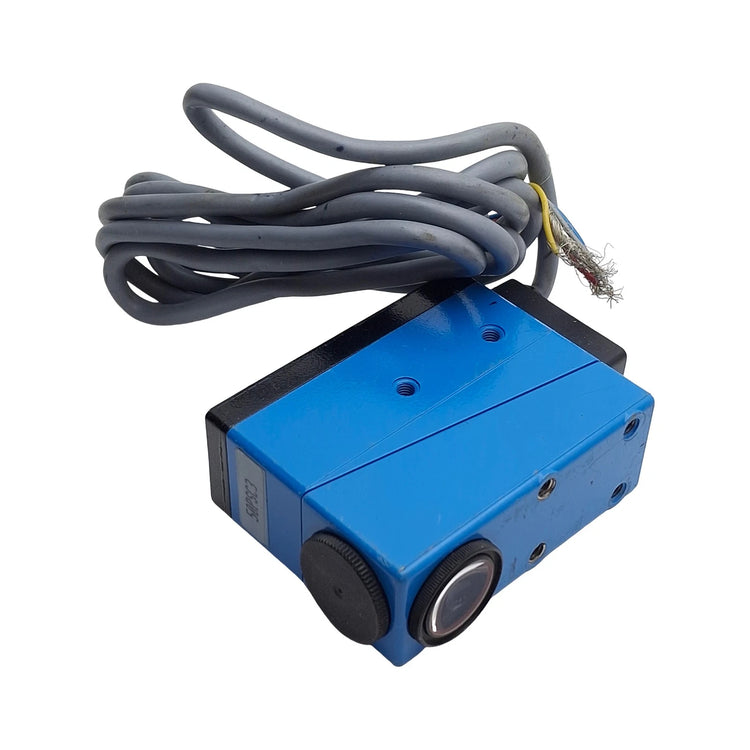

The SICK 1005821 is an NT6-03012 contrast sensor designed to detect color and contrast differences in packaging, labeling, and industrial production processes. It uses selectable red and green LED light sources to identify printed marks and registration marks on different materials. The sensor features a compact die-cast zinc housing, a 9 mm sensing distance, and a 2 m shielded cable for industrial installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | 1005821 |
| Subcategory | Contrast Sensors |
| Model | NT6-03012 |
| Product Series | NT6 |
| Sensor Type | Contrast sensor |
| Detection Principle | Optical contrast detection |
| Light Source | Red and green LEDs |
| Sensing Distance | 9 mm |
| Sensing Distance Tolerance | ±2 mm |
| Light Spot Size | 1.5 × 4 mm (red); 1.5 × 5 mm (green) |
| Supply Voltage | 10–30 V DC |
| Maximum Current Consumption | Less than 80 mA, without load |
| Switching Frequency | Up to 10 kHz |
| Response Time | Greater than 50 μs, under specified conditions |
| Output Current | Up to 200 mA |

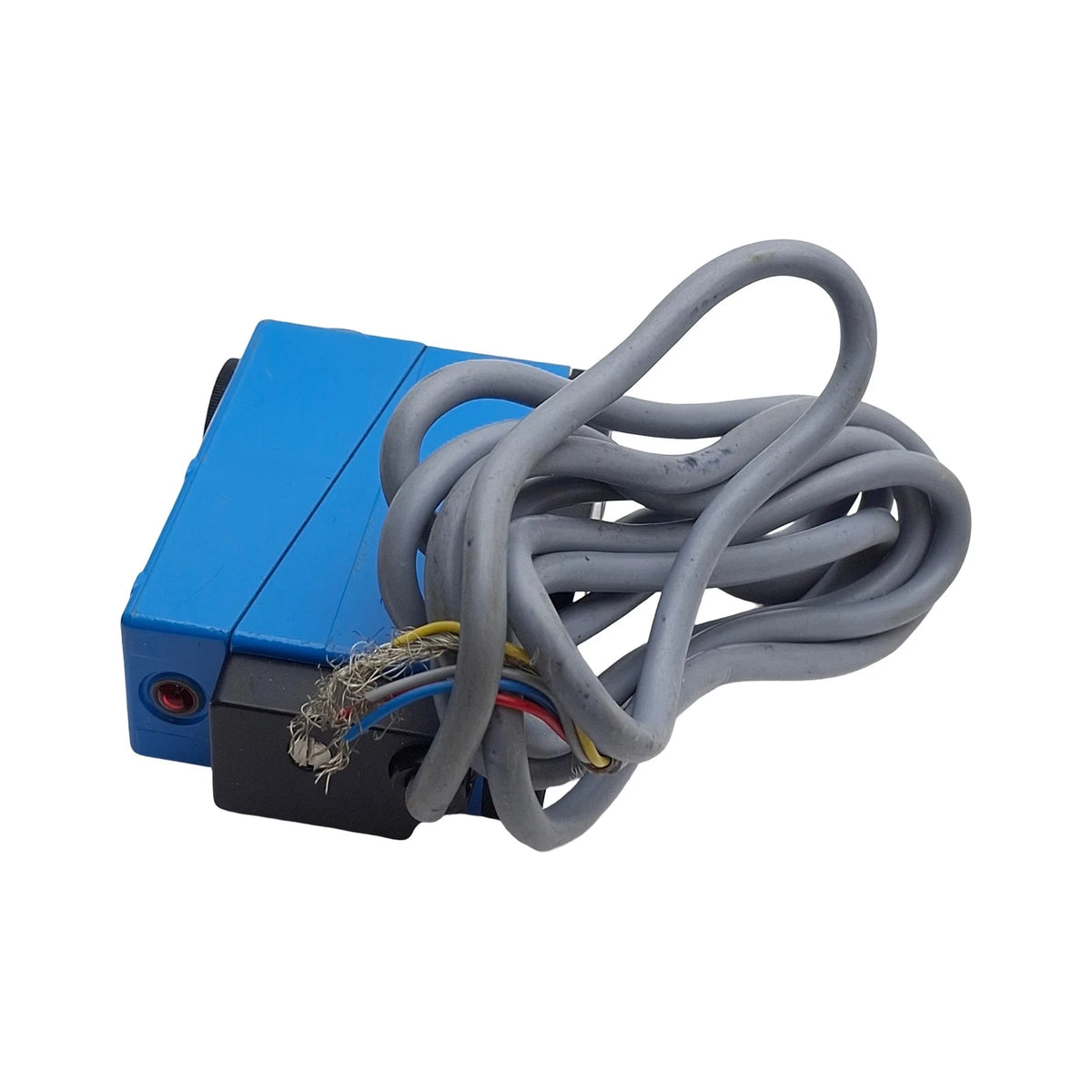

| Connection Type | 2 m shielded cable, 4 × 0.34 mm² |
| Adjustment | Manual potentiometer |
| Housing Material | Die-cast zinc |
| Enclosure Rating | IP67 |
| Operating Temperature | 0 °C to +50 °C |
| Dimensions (L × W × H) | 64 × 80 × 30.4 mm |
| Weight | 1.19 lb |
Information About 1005821
The 1005821 is part of SICK’s NT6 series of contrast sensors. Its sensing distance is 9 mm, with a tolerance of ±2 mm, and the light emission direction can be configured for different mounting arrangements. The sensor operates on a 10–30 V DC supply and supports a switching frequency of up to 10 kHz under specified conditions. Its IP67 enclosure rating and compact metal housing support use in packaging machinery and automated production equipment.
Key Features:
-
Contrast Detection: Identifies contrast differences between printed marks and background materials.
-
Selectable Light Sources: Uses red and green LEDs for different detection conditions.
-
Sensing Distance: Operates at a nominal sensing distance of 9 mm.
-
Fast Switching: Supports switching frequencies up to 10 kHz under specified conditions.
-
Adjustable Settings: Provides manual adjustment using a potentiometer.
-
Flexible Light Emission: Supports light emission from the long or short side of the housing.
-
Electrical Protection: Includes short-circuit protection and reverse-polarity protection for supply connections.
-
Industrial Enclosure: Features a die-cast zinc housing with IP67 protection.
The 1005821 delivers the reliability and precision required for print mark detection, packaging control, and automated label positioning applications.
