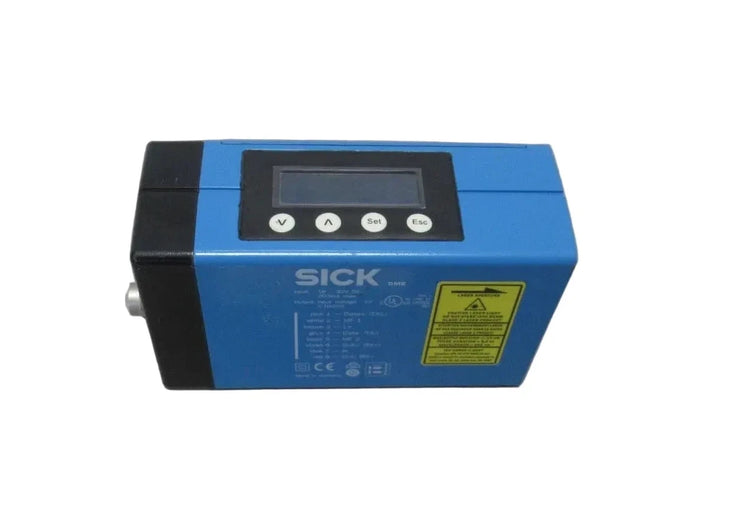

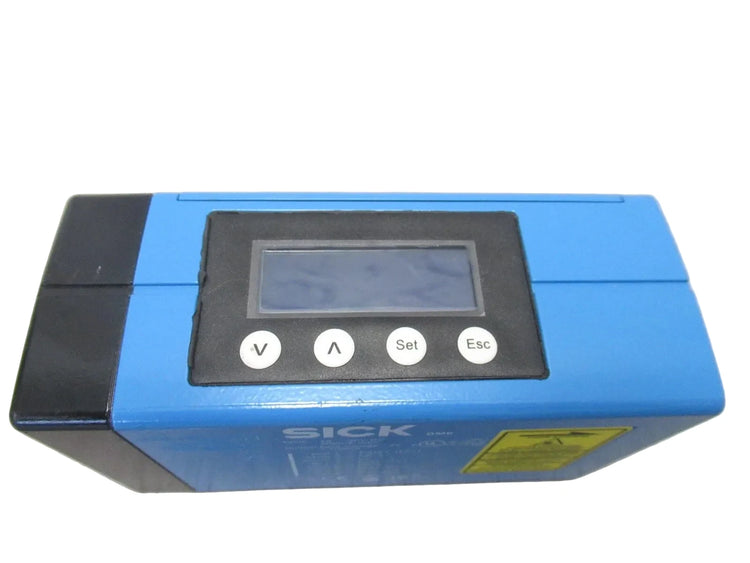

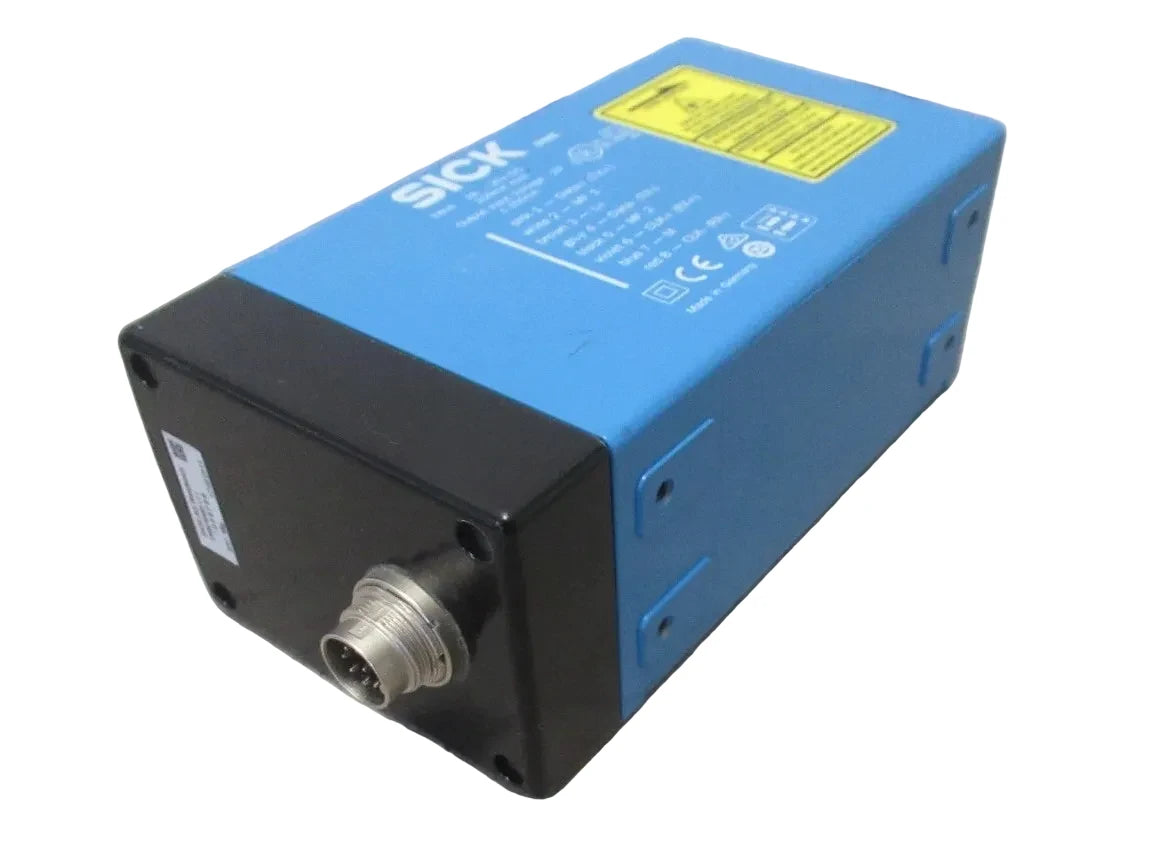

SICK 1029789 DME4000-111 Long-Range Laser Distance Sensor
- Regular price
- $2,499.00
- Sale price
- $2,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1029789
Description
The SICK 1029789 is a DME4000-111 long-range laser distance sensor designed for precise, non-contact distance measurement in industrial automation systems. It measures distances of up to 50 meters using compatible reflective tape and provides SSI communication for positioning, movement monitoring, and control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | 1029789 |
| Subcategory | Laser Distance Sensors |
| Model | DME4000-111 |
| Product Series | DME4000 |
| Sensor Technology | Optical time-of-flight |
| Measuring Range | 0.15–50 m |
| Measurement Target | Reflector |
| Measurement Accuracy | ±3 mm |
| Repeatability | ≤1 mm |
| Resolution | 0.05–5 mm |
| Light Source | Visible red laser |
| Laser Classification | Class 2 |
| Communication Interface | SSI |
| Output Time | 1 ms |
| Supply Voltage | 18–30 VDC |
| Current Consumption | Less than 250 mA at 24 VDC |
| Connection Type | M16 male connector, 8-pin |
| Housing Material | Zinc die-cast metal |
| Window Material | Glass |
| Protection Rating | IP65 |
| Dimensions (W × H × D) | 61 × 85 × 166 mm |
| Weight | 3.64 lb |
Information About 1029789
The 1029789 belongs to SICK's DME4000 series of optical time-of-flight distance sensors, developed for automated storage systems, industrial cranes, and material handling equipment. Its red Class 2 laser measures the distance to a reflector, with a measurement range determined by the reflective target and operating conditions. The sensor features an SSI communication interface, a 1 ms output time, and repeatability of 1 mm or better under specified conditions. Its zinc die-cast metal housing, integrated display, and eight-pin M16 connector support industrial installation and configuration.
Key Features:
-
Long-Range Measurement: Measures distances from 0.15 m to 50 m using compatible diamond-grade reflective tape.
-
Optical Technology: Uses time-of-flight laser measurement for non-contact distance detection.
-
Measurement Accuracy: Provides accuracy of ±3 mm under specified operating conditions.
-
Repeatability: Achieves repeatability of 1 mm or better under constant environmental conditions.
-
SSI Communication: Transfers distance data through a synchronous serial interface.
-
Fast Output: Provides a 1 ms output time for responsive positioning applications.
-
Integrated Display: Displays measurement values and supports sensor configuration.
-
Industrial Construction: Features a zinc die-cast metal housing with IP65 ingress protection.
The 1029789 delivers the reliability and precision required for industrial positioning, automated storage systems, and long-range distance measurement applications.
