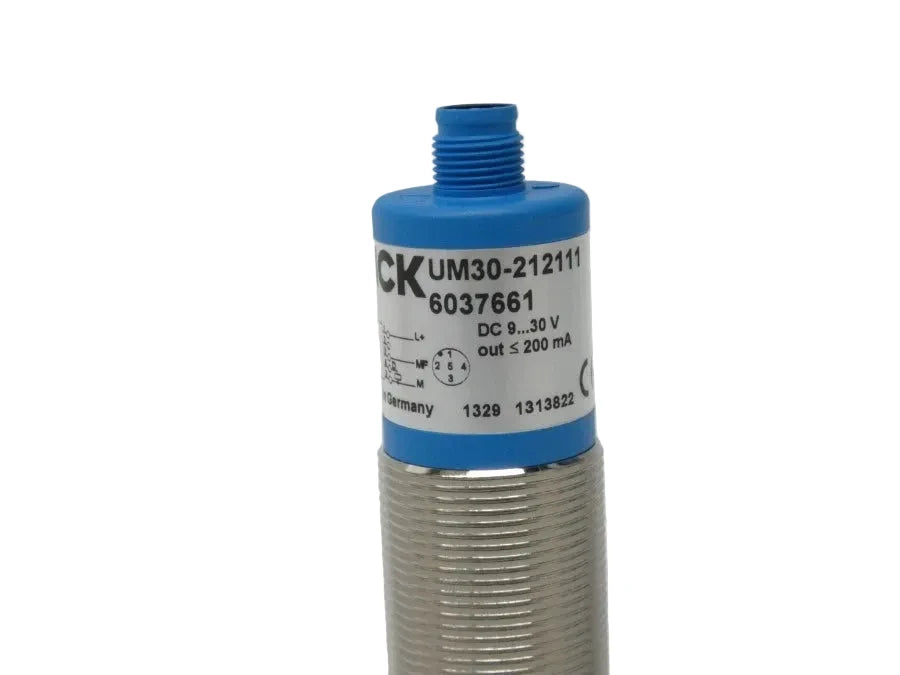

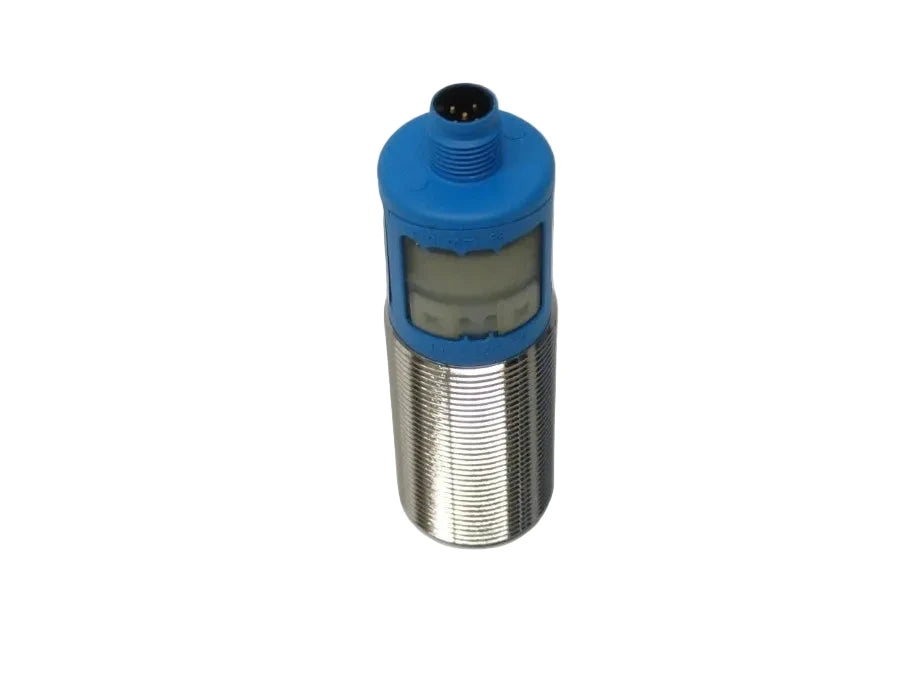

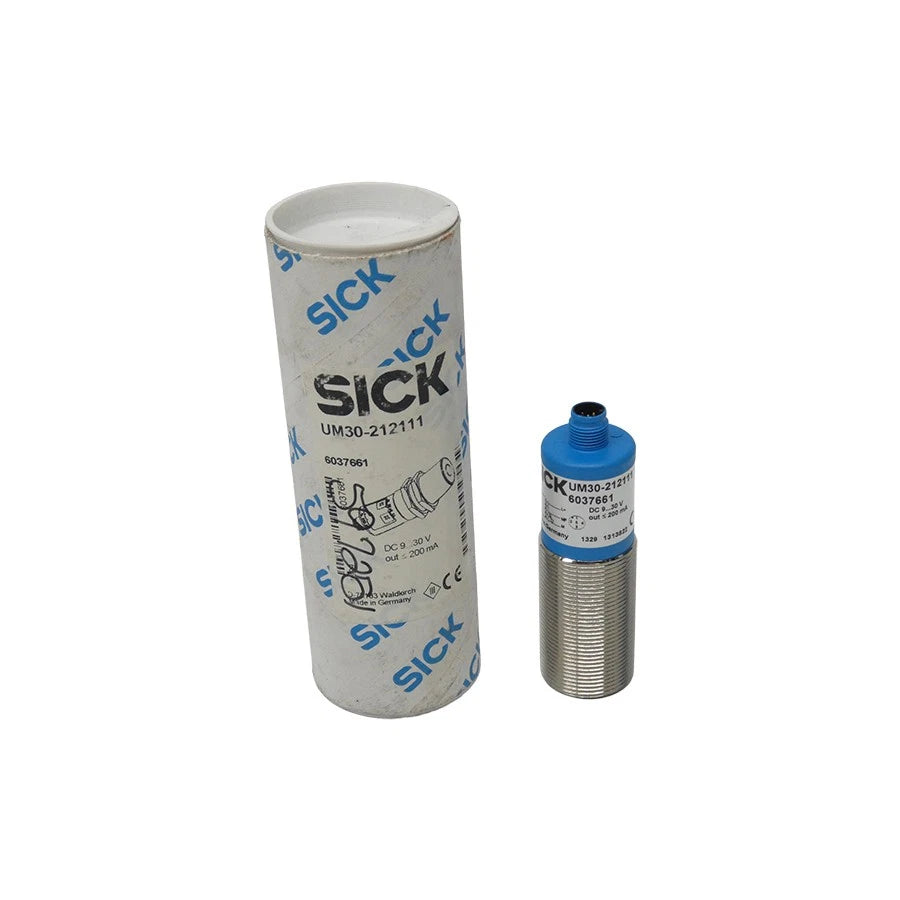

SICK 6037661 UM30-212111 Ultrasonic Distance Sensor 350 mm
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6037661
Description
The SICK 6037661 is a UM30-212111 ultrasonic distance sensor designed for non-contact object detection and distance measurement in industrial automation systems. It measures natural objects within a 65–350 mm operating range and provides a PNP digital switching output for monitoring object presence and position.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | 6037661 |
| Subcategory | Ultrasonic Distance Sensors |
| Model | UM30-212111 |
| Product Series | UM30 |
| Sensor Type | Ultrasonic distance sensor |
| Operating Range | 65–350 mm |
| Limiting Range | 600 mm |
| Target Type | Natural objects |
| Measurement Resolution | ≥ 0.18 mm |
| Measurement Accuracy | ±1% of measured value |
| Repeatability | ±0.15% of measured value |
| Ultrasonic Frequency | 400 kHz typical |
| Response Time | 64 ms |
| Switching Frequency | 12 Hz |
| Output Time | 16 ms |
| Digital Output | 1 × PNP |
| Supply Voltage | 9–30 VDC |
| Power Consumption | ≤ 2.4 W |
| Connection Type | M12 male connector, 5-pin |
| Thread Size | M30 × 1.5 |
| Housing Material | Nickel-plated brass and PBT |
| Protection Rating | IP65/IP67 |
| Dimensions | 30 × 30 × 84 mm |
| Operating Temperature | −25°C to +70°C |
| Weight | 0.33 lb |
Information About 6037661
The 6037661 belongs to SICK's UM30 series of ultrasonic sensors, designed for industrial applications requiring dependable detection without relying on optical contrast or object color. It uses a 400 kHz ultrasonic transducer and temperature compensation to maintain measurement performance under changing environmental conditions. The sensor supports configurable switching modes, teach-in setup, adjustable measurement filters, and synchronization of up to 50 sensors to reduce mutual interference. Its cylindrical M30 housing, five-pin M12 connector, and IP65/IP67 protection ratings support integration into industrial machinery and production equipment.
Key Features:
-
Ultrasonic Detection: Detects natural objects using sound waves rather than optical sensing.
-
Operating Range: Measures distances from 65 mm to 350 mm, with a limiting range of 600 mm.
-
PNP Digital Output: Provides one PNP switching output for object detection and control.
-
Measurement Resolution: Supports resolution of 0.18 mm or better.
-
Measurement Accuracy: Provides accuracy of ±1% of the measured value under specified conditions.
-
Temperature Compensation: Compensates for temperature-related effects on ultrasonic measurements.
-
Adjustable Configuration: Supports configurable switching points, switching windows, output delays, and measurement filters.
-
Industrial Protection: Features an M30 cylindrical housing with IP65/IP67 ingress protection.
The 6037661 delivers the reliability and precision required for industrial object detection, distance measurement, and automated positioning applications.
