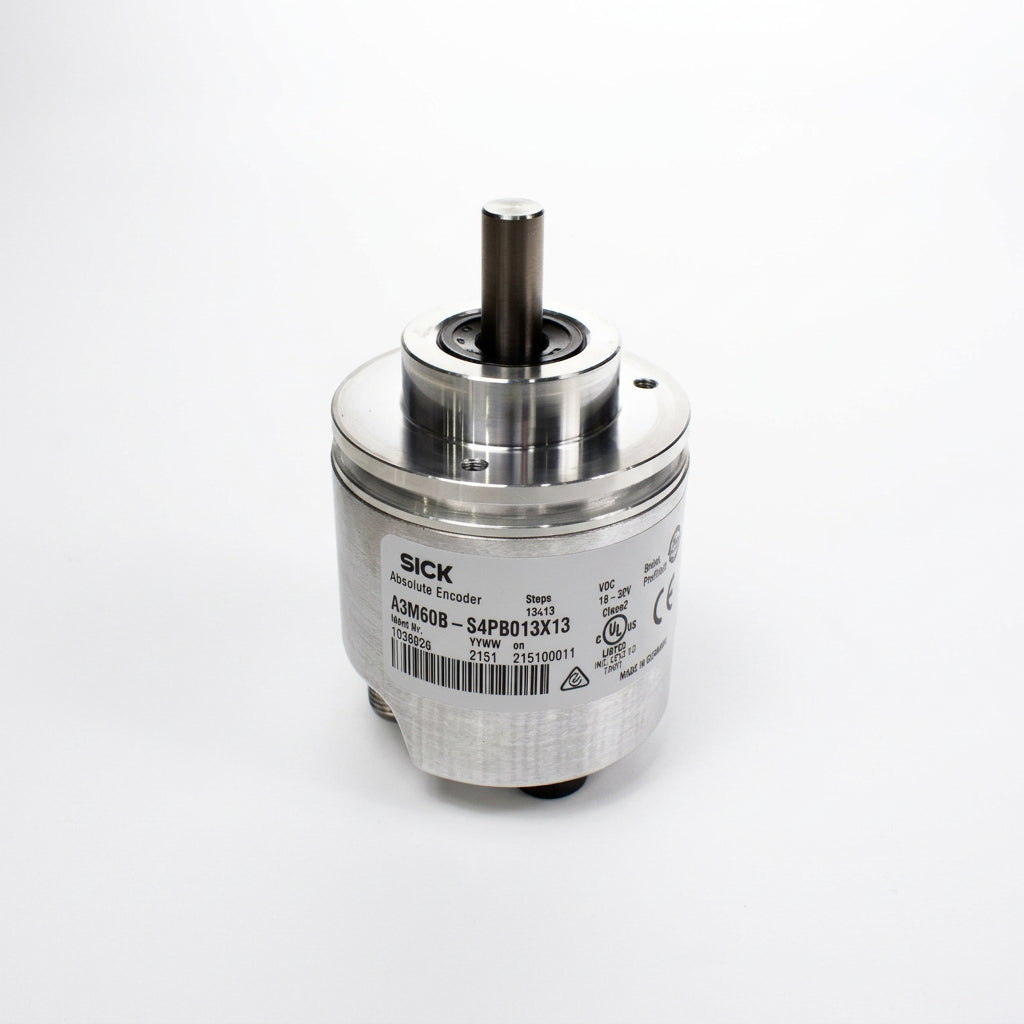

SICK A3M60B-S4PB013X13 Absolute Multiturn Encoder with PROFIBUS DP
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A3M60B-S4PB013X13
Description
The SICK A3M60B-S4PB013X13 is an absolute multiturn rotary encoder designed to provide precise rotational position feedback for industrial automation and motion-control systems. It offers 13-bit singleturn and 13-bit multiturn resolution, with a PROFIBUS DP interface for transmitting position data to compatible controllers and PLCs.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors & Switches |
| Part Number | A3M60B-S4PB013X13 |
| Subcategory | Absolute Encoders |
| Manufacturer Part Number | 1038826 |
| Series | A3M60 |
| Singleturn Resolution | 8,192 steps per revolution (13 bit) |
| Multiturn Resolution | 8,192 revolutions (13 bit) |
| Total Resolution | 13 bit × 13 bit |
| Communication Interface | PROFIBUS DP, DPV0 |
| Maximum Data Rate | 12 Mbaud |
| Shaft Type | Solid shaft |
| Supply Voltage | 10–32 V DC |
| Protection Rating | IP65 / IP67 |
| Weight | 0.56 lb |
Information About A3M60B-S4PB013X13

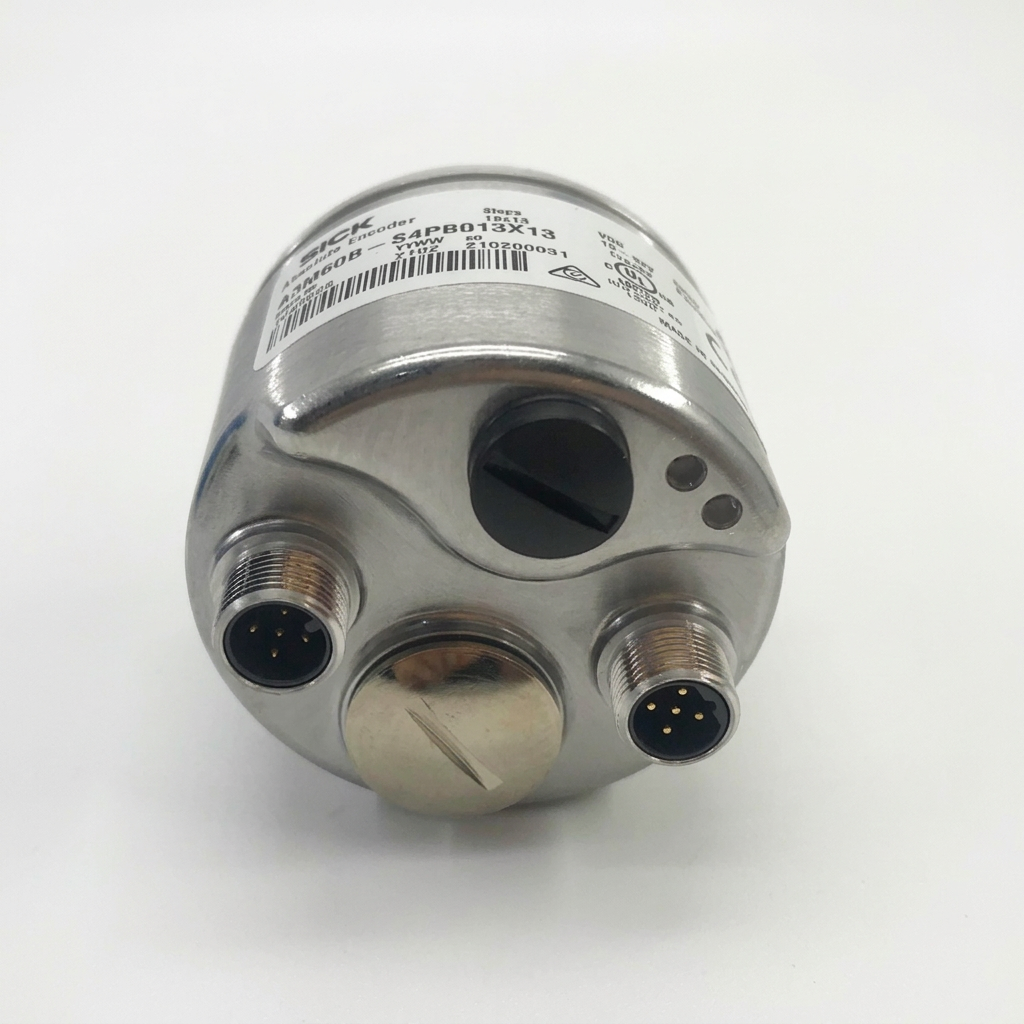

The A3M60B-S4PB013X13 belongs to SICK’s A3M60 series of absolute encoders for industrial position measurement. Its solid 10 mm shaft and face-mount flange support mechanical integration into compatible drive assemblies and rotary equipment. The encoder communicates through PROFIBUS DP using the DPV0 protocol, with data transmission rates up to 12 Mbaud and configurable parameters including resolution, preset, and counting direction. Two axial five-pin M12 male connectors and one axial five-pin M12 female connector provide the specified bus connections.
Key Features:
-
Absolute Multiturn Measurement: Reports position across both a single revolution and multiple shaft revolutions.
-
Singleturn Resolution: Provides 8,192 steps per revolution, equivalent to 13-bit resolution.
-
Multiturn Resolution: Tracks up to 8,192 revolutions with 13-bit multiturn resolution.
-
PROFIBUS DP Interface: Uses the DPV0 communication protocol for integration with compatible industrial control systems.
-
Configurable Parameters: Supports setting resolution, preset position, and counting direction.
-

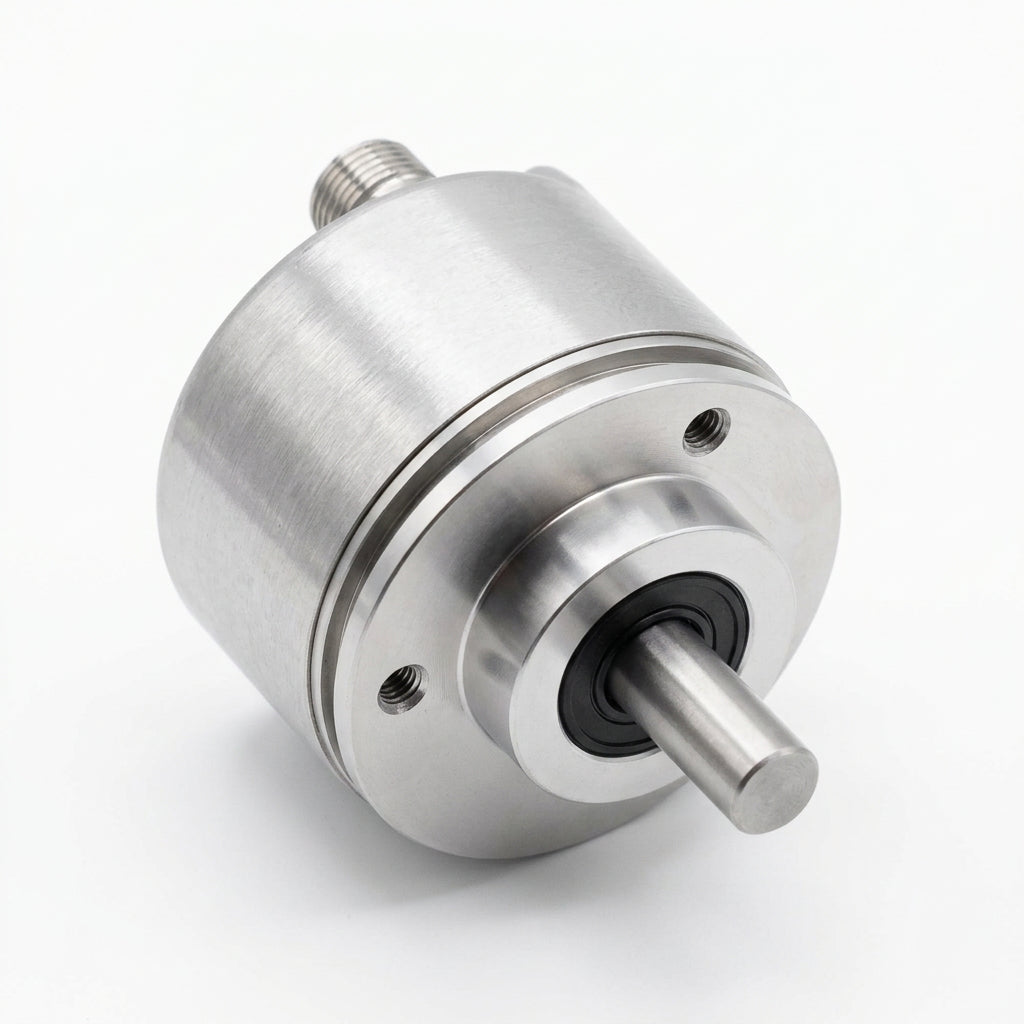

Solid Shaft Design: Features a 10 mm shaft and face-mount flange for mechanical installation.
-
M12 Connections: Uses axial five-pin M12 connectors for the PROFIBUS connection.
-
Position Accuracy: Specifies a 0.5° error limit at room temperature.
The A3M60B-S4PB013X13 delivers the reliability and precision required for rotary position feedback, machine automation, and industrial motion-control applications.
