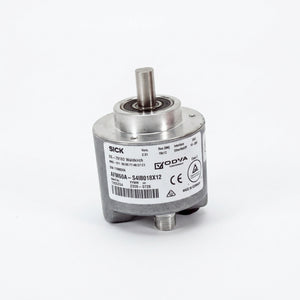

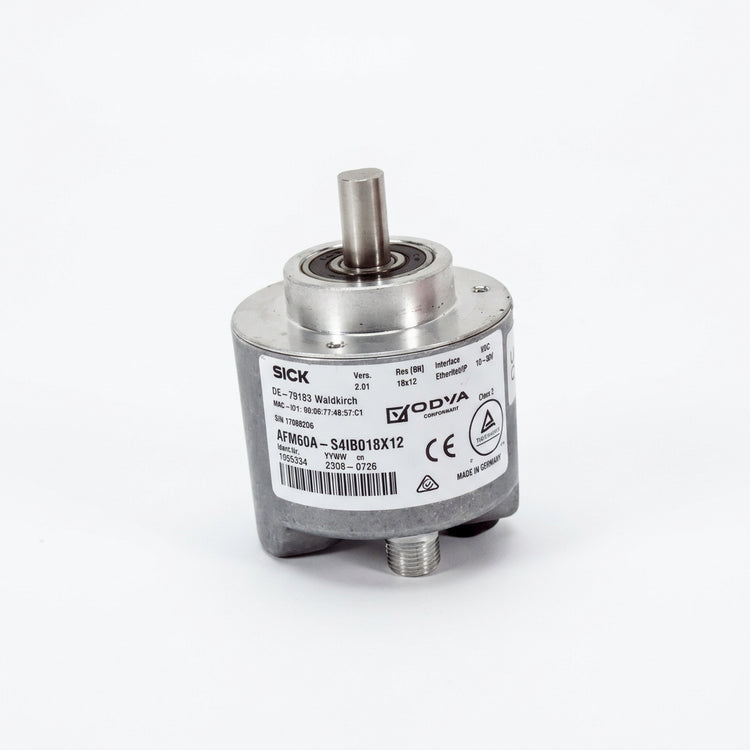

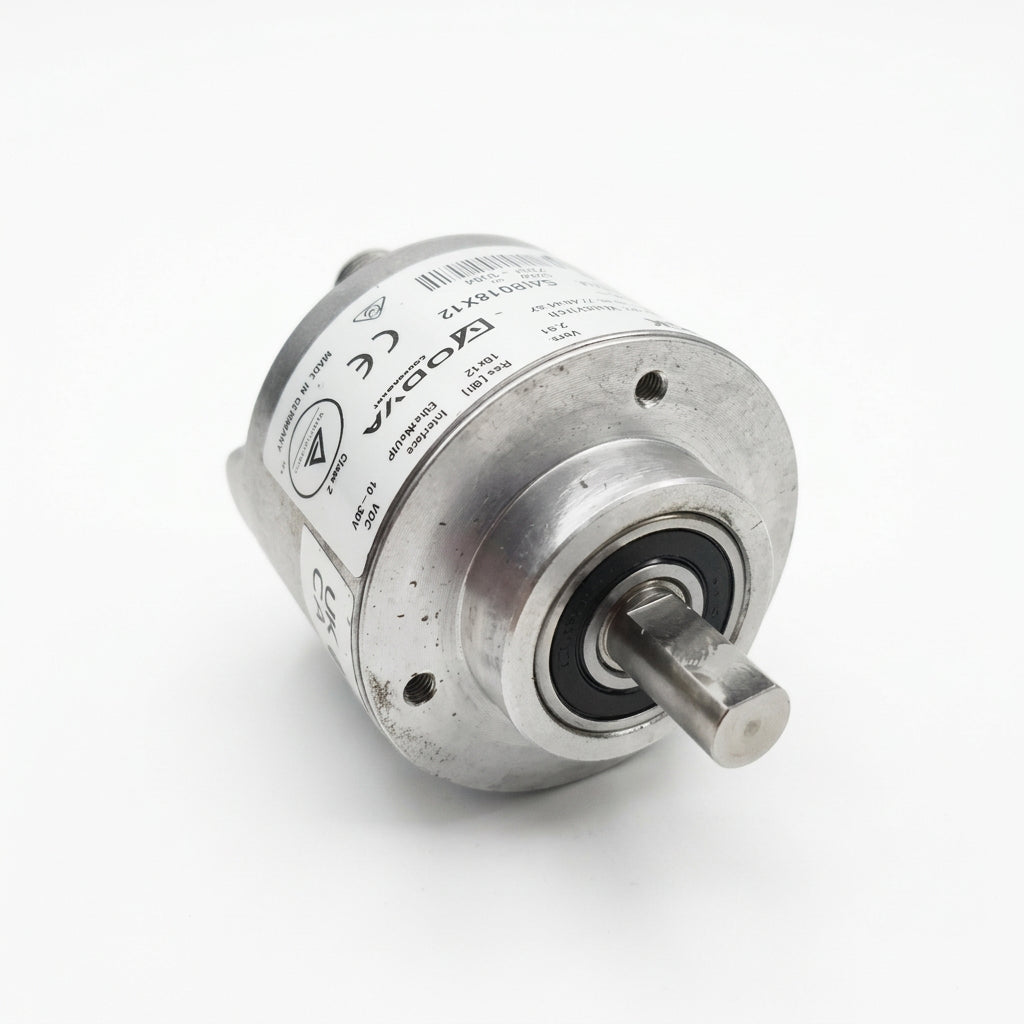

SICK AFM60A-S4IB018X12 Absolute Multiturn Encoder with EtherNet/IP
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AFM60A-S4IB018X12
Description
The SICK AFM60A-S4IB018X12 is a multiturn absolute rotary encoder designed to provide precise position feedback for industrial automation and motion control systems. It features 18-bit single-turn resolution, 12-bit multiturn resolution, and an EtherNet/IP communication interface for transmitting position data to compatible industrial controllers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors & Switches |
| Part Number | AFM60A-S4IB018X12 |
| Subcategory | Absolute Rotary Encoders |
| Manufacturer Order Number | 1055334 |
| Encoder Type | Absolute multiturn |
| Communication Interface | EtherNet/IP |
| Single-Turn Resolution | 18 bit (262,144 steps per revolution) |
| Multiturn Resolution | 12 bit (4,096 revolutions) |
| Supply Voltage | 10–30 V DC |
| Power Consumption | ≤ 3 W (without load) |
| Shaft Type | Solid shaft |
| Shaft Diameter | 10 mm |
| Shaft Length | 19 mm |
| Shaft Material | Stainless steel |
| Housing Material | Aluminum |
| Maximum Operating Speed | 9,000 rpm |
| Enclosure Rating | IP65 shaft side; IP67 housing side |
| Operating Temperature | −40 °C to +85 °C |
| Weight | 0.66 lb |
Information About AFM60A-S4IB018X12
The AFM60A-S4IB018X12 belongs to SICK’s AFS/AFM60 Ethernet series of absolute encoders. Its solid stainless-steel shaft and aluminum housing are designed for integration into industrial machinery and rotating equipment. The encoder uses a 10 mm shaft, a face-mount clamping flange, and M12 connectors for electrical and network connections. Its multiturn measurement capability records both angular position within a revolution and the number of revolutions, supporting accurate machine positioning and movement monitoring.
Key Features:
-
Absolute Multiturn Measurement: Provides position information without relying solely on incremental pulse counting.
-
High Resolution: Combines 18-bit single-turn resolution with 12-bit multiturn resolution.
-
EtherNet/IP Communication: Connects with compatible PLCs and industrial automation networks.
-
Solid Shaft Design: Features a 10 mm diameter shaft with a 19 mm shaft length.
-
Industrial Mounting: Uses a face-mount clamping flange for mechanical installation.
-
M12 Connectors: Includes one 4-pin male connector and two 4-pin female connectors.
-
Wide Supply Voltage: Operates from 10–30 V DC with power consumption of up to 3 W without load.
-
Environmental Protection: Provides IP65 protection on the shaft side and IP67 protection on the housing side when the mating connector is fitted.
The AFM60A-S4IB018X12 delivers the precision and dependable position feedback required for industrial robotics, packaging machinery, material handling, and automated motion control systems.
