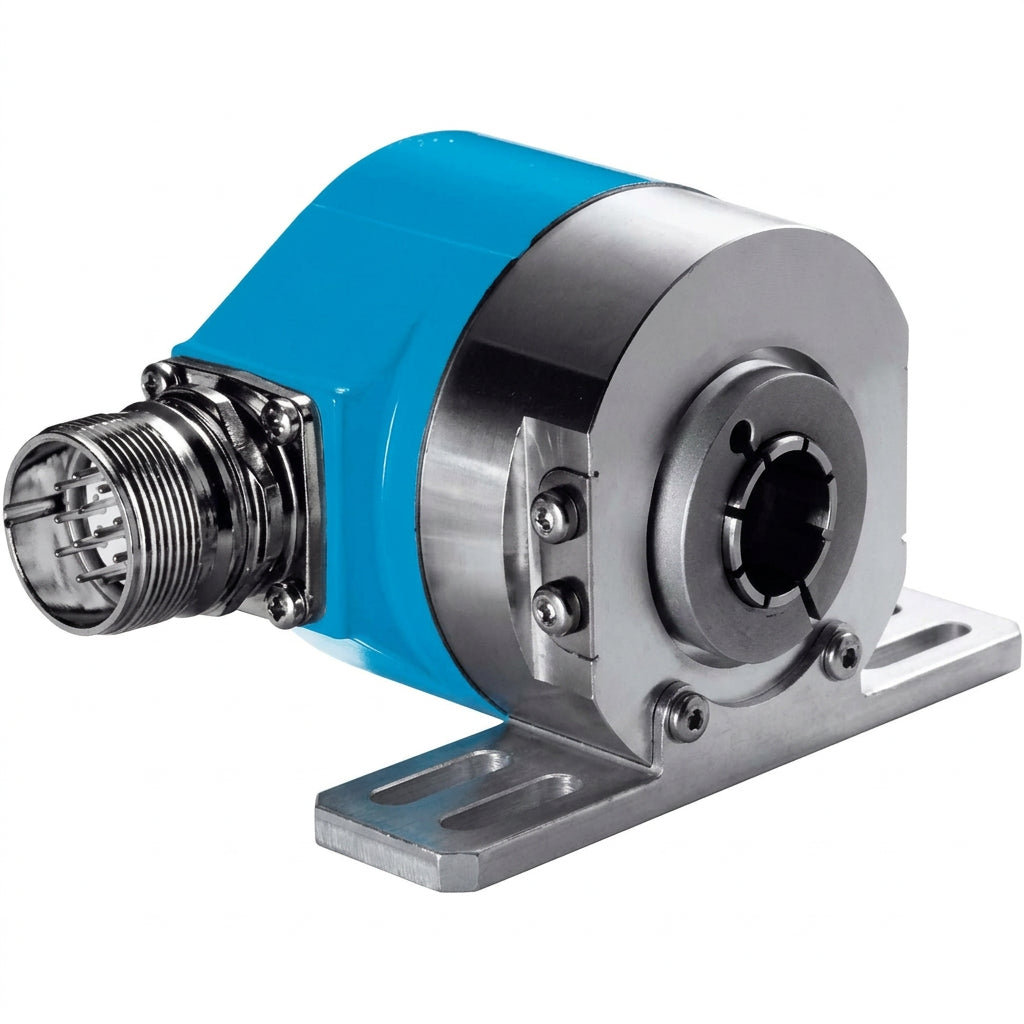

SICK ATM60-AAA12X12 Absolute Multiturn Encoder, 24-Bit Resolution, SSI Interface
- Regular price
- $1,325.00
- Sale price
- $1,325.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ATM60-AAA12X12
Description
The SICK ATM60-AAA12X12 is an absolute multiturn rotary encoder designed to provide precise shaft-position feedback for industrial automation and motion-control systems. It uses an SSI interface and supports up to 24-bit resolution, enabling accurate position tracking across multiple revolutions in machinery, production equipment, and positioning applications.
Technical Specifications
| Specification | Details |
|---|---|
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation |
| Part Number | ATM60-AAA12X12 |
| Subcategory | Absolute Encoders |
| Manufacturer Part Number | 1030009 |
| Product Type | Absolute multiturn rotary encoder |
| Resolution | 12-bit singleturn + 12-bit multiturn |
| Interface / Code | SSI; Gray or binary |
| Supply Voltage | 10–32 VDC |
| Connection | M23 male connector, 12-pin, radial |
| Protection / Operating Temperature | Up to IP67 with shaft seal; −20 to +85 °C |
| Communication Interface | RS-422 measured-data output; SICK EFI communication |
| Weight | 0.4 kg |
Information About ATM60-AAA12X12
The ATM60-AAA12X12 belongs to SICK’s ATM60 series of absolute encoders and uses a blind hollow shaft for direct integration with compatible rotating shafts. It provides 12-bit singleturn and 12-bit multiturn resolution, with selectable Gray or binary coding. The encoder operates from a 10–32 VDC supply and connects through a radial 12-pin M23 male connector. Its metal housing and configurable protection level support use in industrial environments.
Key Features:
-
Absolute Multiturn Measurement: Retains shaft-position information across multiple revolutions.
-
24-Bit Resolution: Combines 12-bit singleturn and 12-bit multiturn resolution.
-
SSI Interface: Supports digital position-data transmission to compatible controllers.
-
Blind Hollow Shaft: Designed for mounting on compatible shafts.
-
Adjustable Code Sequence: Supports configurable clockwise/counterclockwise counting direction.
-
Industrial Construction: Features an aluminum flange and stainless-steel shaft.
-
Wide Supply Range: Operates from 10–32 VDC.
-
Environmental Protection: Supports IP67 with shaft seal, depending on installation.
The ATM60-AAA12X12 delivers the reliability and precision required for rotary positioning, motion feedback, and industrial automation control.
