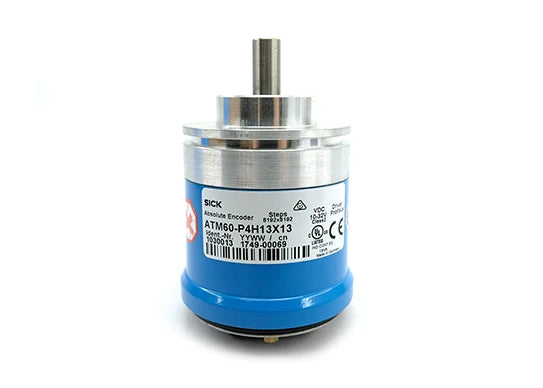

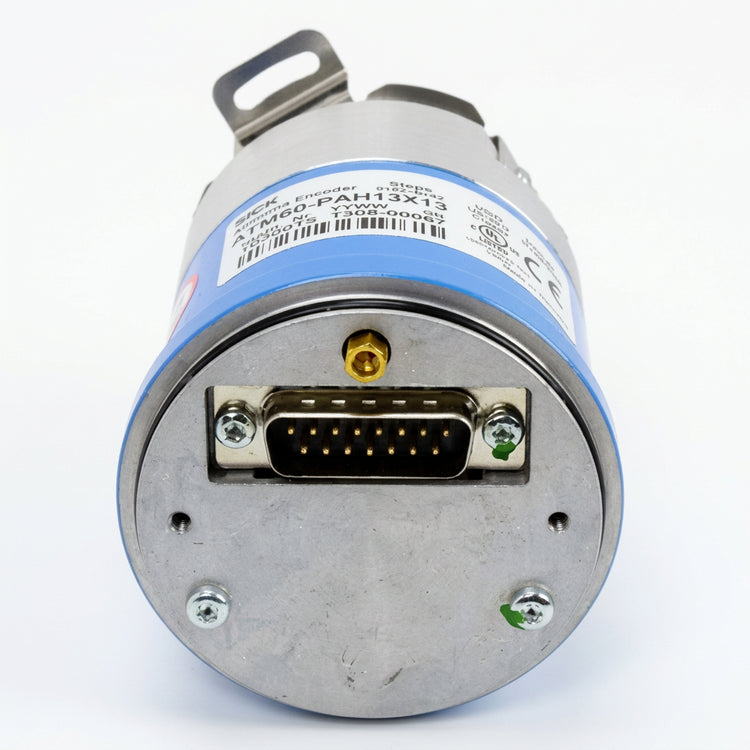

SICK ATM60-PAH13X13 Absolute Multiturn Encoder with PROFIBUS DP
- Regular price
- $1,175.00
- Sale price
- $1,175.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ATM60-PAH13X13
Description
The SICK ATM60-PAH13X13 is an absolute multiturn rotary encoder designed to measure shaft position and rotation count in industrial automation systems. It provides 13-bit singleturn and 13-bit multiturn resolution, with a PROFIBUS DP interface for communicating position data to compatible PLCs and motion-control equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors & Switches |
| Part Number | ATM60-PAH13X13 |
| Subcategory | Absolute Encoders |
| Manufacturer Part Number | 1030015 |
| Encoder Type | Absolute multiturn rotary encoder |
| Singleturn Resolution | 13 bit (8,192 steps per revolution) |
| Multiturn Resolution | 13 bit (8,192 revolutions) |
| Communication Interface | PROFIBUS DP |
| Mechanical Design | Blind hollow shaft |
| Shaft Diameter | 15 mm |
| Supply Voltage | 10–32 V DC |
| Maximum Operating Speed | 3,000 rpm |
| Operating Temperature | −20°C to +85°C |
| Enclosure Rating | IP67 with shaft seal; IP66 or IP43 depending on sealing configuration |
| Weight | 1.08 lb |
Information About ATM60-PAH13X13
The ATM60-PAH13X13 belongs to SICK’s ATM60 series of absolute encoders for industrial position feedback. It uses a blind hollow shaft with a nominal 15 mm diameter, a stainless-steel shaft interface, and an aluminum die-cast housing. The encoder communicates over PROFIBUS DP using the encoder profile and supports electronic preset adjustment through a push button or communication protocol. Its bus adapter is ordered separately, so the required connection hardware should be confirmed when planning installation.
Key Features:
-
Absolute Multiturn Measurement: Records angular position within a revolution and across multiple revolutions.
-
Singleturn Resolution: Provides 8,192 measurement steps per revolution (13 bit).
-
Multiturn Resolution: Tracks up to 8,192 revolutions with 13-bit multiturn resolution.
-
PROFIBUS DP Interface: Transfers position data to compatible industrial control systems.
-
Electronic Preset: Allows position adjustment through the PRESET button or communication protocol.
-
Blind Hollow Shaft: Uses a 15 mm shaft opening for direct integration with compatible rotating equipment.
-
Electrical Supply: Operates on 10–32 V DC with reverse-polarity protection.
-
Environmental Resistance: Supports operating temperatures from −20°C to +85°C and offers IP67 protection with the shaft seal fitted.
The ATM60-PAH13X13 delivers the reliability and precision required for rotary position feedback, industrial automation, and closed-loop motion-control applications.
