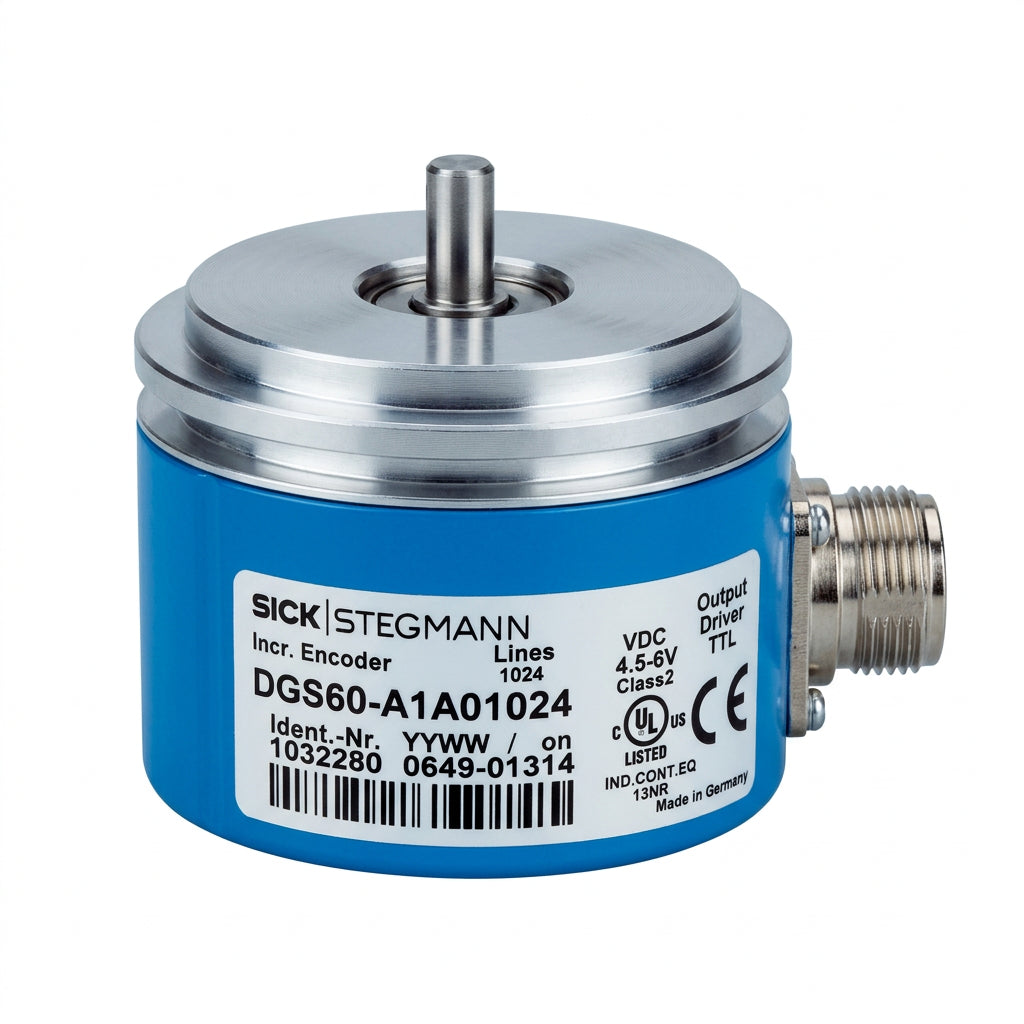

SICK DGS60-A1A01024 Incremental Rotary Encoder with 1024 PPR
- Regular price
- $505.00
- Sale price
- $505.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DGS60-A1A01024
Description
The SICK DGS60-A1A01024 is an incremental rotary encoder designed to measure rotational movement and provide pulse signals for position and speed feedback in industrial machinery. It delivers 1,024 pulses per revolution and uses a solid shaft, servo flange, and TTL-compatible RS-422 output for integration with compatible motion-control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors & Switches |
| Part Number | DGS60-A1A01024 |
| Subcategory | Incremental Encoders |
| Manufacturer Part Number | 1032280 |
| Encoder Type | Incremental rotary encoder |
| Series | DGS60 |
| Resolution | 1,024 pulses per revolution |
| Electrical Interface | TTL / RS-422 |
| Supply Voltage | 6 V DC |
| Shaft Design | Solid shaft, servo flange |
| Shaft Diameter | 6 mm |
| Shaft Length | 10 mm |
| Connection | Radial 12-pin M23 male connector |
|
Weight |
5.00 lb |
Information About DGS60-A1A01024
The DGS60-A1A01024 belongs to SICK’s DGS60 series of incremental encoders, developed for compact installation in industrial drive and automation equipment. Its solid shaft has a 6 mm diameter and a 10 mm shaft length, while the servo flange provides the mounting interface. The encoder uses a radial 12-pin M23 male connector and a TTL/RS-422 electrical interface to transmit incremental position signals. This model has been discontinued by the manufacturer, so replacement compatibility should be checked against the original electrical and mechanical requirements.
Key Features:
-
Incremental Measurement: Generates pulse signals for rotational position and speed feedback.
-
Resolution: Provides 1,024 pulses per revolution.
-
Solid Shaft: Uses a 6 mm diameter shaft for mechanical coupling.
-
Servo Flange: Supports installation in compatible encoder mounting arrangements.
-
Electrical Interface: Uses TTL signals with an RS-422 line-driver interface.
-
Connector: Features a radial 12-pin M23 male connector.
-
Compact Design: Supports integration into space-constrained industrial machinery.
-
Product Status: Discontinued by the manufacturer; verify suitable replacements before installation.
The DGS60-A1A01024 delivers the reliability and precision required for rotational feedback, speed monitoring, and industrial motion-control applications.
