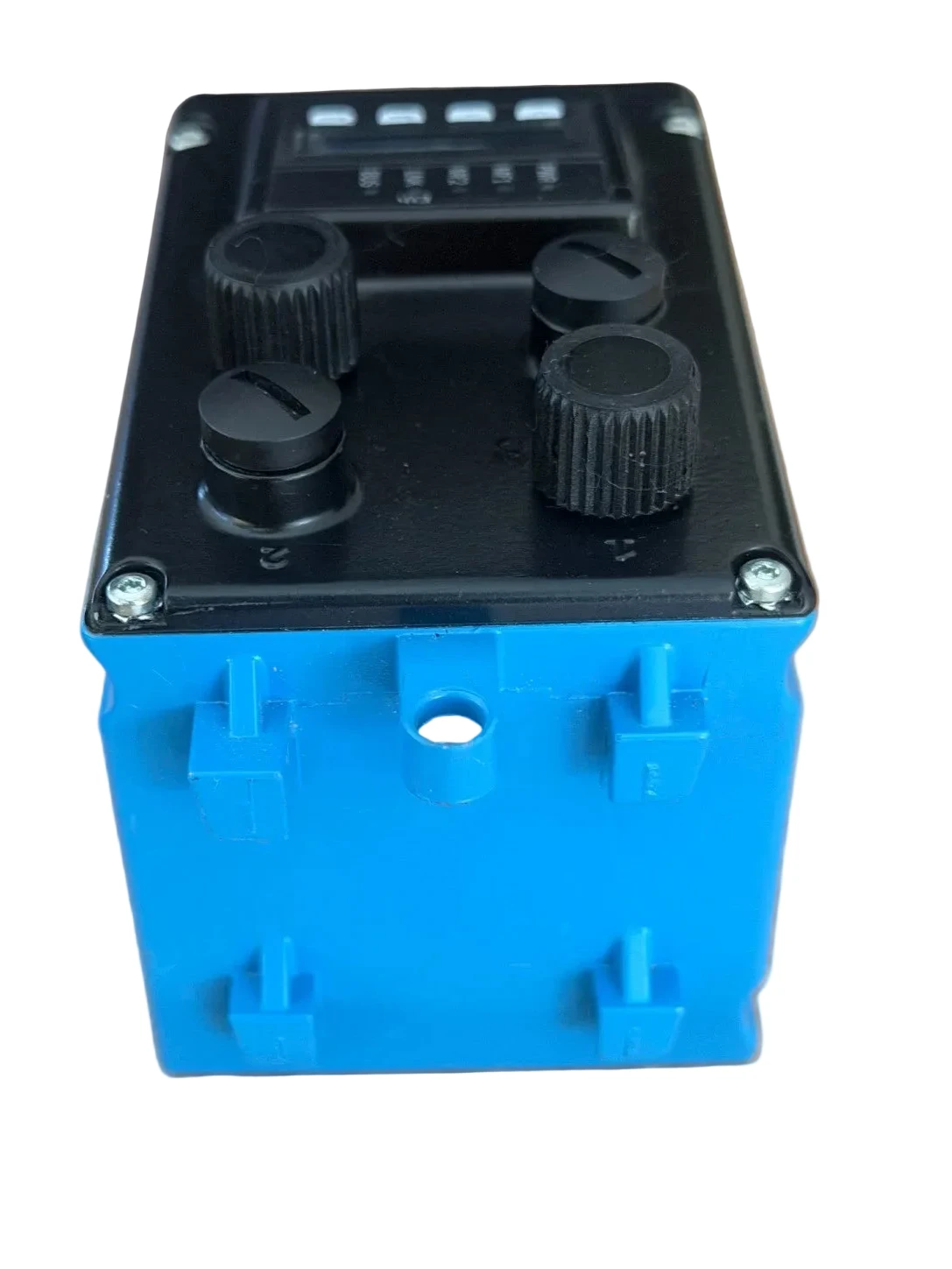

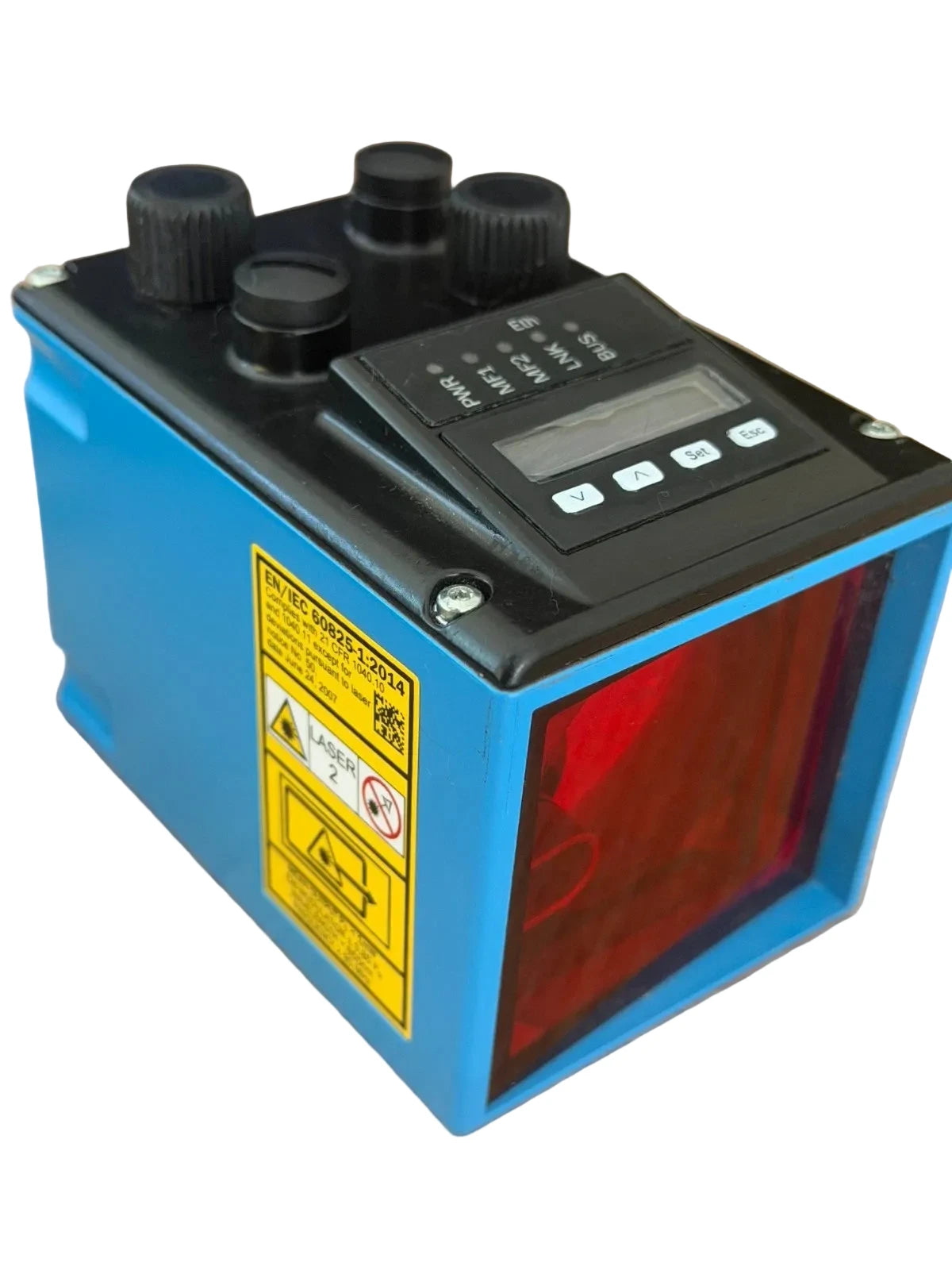

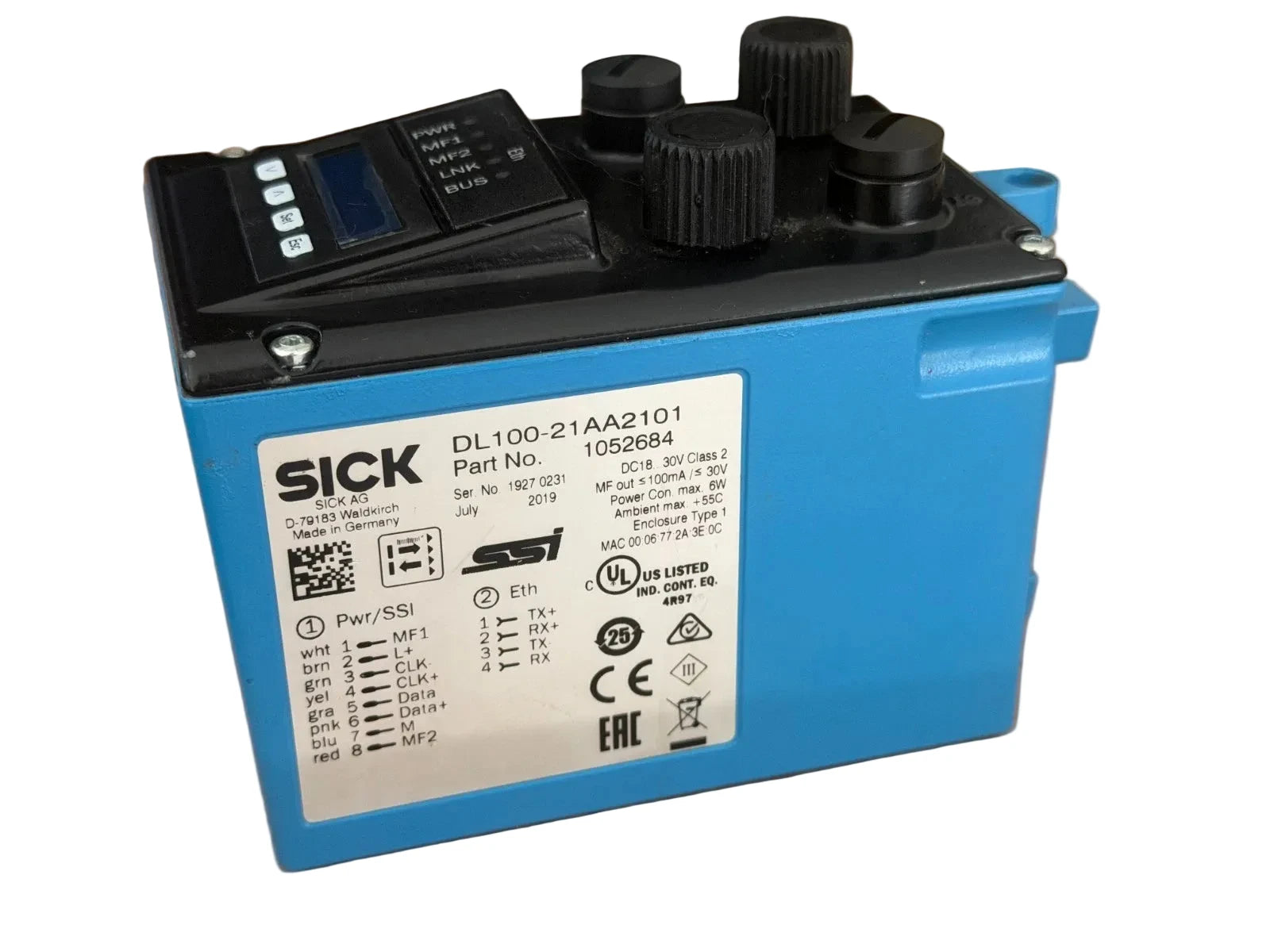

SICK DL100-21AA2101 Dx100 Long-Range Laser Distance Sensor 100 m
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DL100-21AA2101
Description
The SICK DL100-21AA2101 is a long-range laser distance sensor from the Dx100 series, designed for precise position and distance measurement in industrial automation systems. It measures distances of up to 100 meters using a suitable reflective target and provides SSI communication and digital outputs for integration with compatible control equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | DL100-21AA2101 |
| Subcategory | Laser Distance Sensors |
| Product Series | Dx100 |
| Manufacturer Article Number | 1052684 |
| Sensor Type | Long-range optical distance sensor |
| Measuring Range | 0.15–100 m with compatible reflective tape |
| Measurement Accuracy | Typically ±2 mm |
| Repeatability | 0.5 mm |
| Resolution | Selectable: 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm |
| Light Source | Visible red laser |
| Laser Classification | Class 2 |
| Communication Interface | SSI |
| Digital Outputs | 2 × push-pull, PNP/NPN |
| Supply Voltage | 18–30 VDC |
| Current Consumption | Less than 250 mA at 24 VDC |
| Connection Type | M12 male connector, SPEEDCON-compatible |
| Protection Rating | IP65 |
| Housing Material | Die-cast aluminum |
| Dimensions (W × H × D) | 69.4 × 82.5 × 100.2 mm |
| Operating Temperature | −20°C to +55°C |
| Weight | 1.76 lb |
Information About DL100-21AA2101
The DL100-21AA2101 is part of SICK's Dx100 family of optical distance sensors, developed for applications such as automated storage systems, crane positioning, transfer vehicles, and industrial material handling. Its visible red Class 2 laser measures the distance to a reflector, with measurement performance depending on the target and operating conditions. The sensor features an SSI interface, two configurable push-pull digital outputs supporting PNP/NPN signaling, and a multifunction input for control functions. Its die-cast aluminum housing, M12 SPEEDCON-compatible connector, and IP65 enclosure rating support installation in demanding indoor industrial environments.
Key Features:
-
Long-Range Measurement: Measures distances from 0.15 m to 100 m using compatible reflective tape.
-
Laser Technology: Uses a visible red Class 2 laser for optical distance measurement.
-
Measurement Accuracy: Provides typical accuracy of ±2 mm, with deviations possible at very short measuring distances.
-
Repeatability: Achieves 0.5 mm repeatability under specified constant environmental conditions.
-
SSI Communication: Transfers measurement data through a synchronous serial interface for industrial controller integration.
-
Digital Outputs: Provides two push-pull outputs supporting PNP/NPN signaling.
-
Industrial Housing: Uses a die-cast aluminum enclosure with an IP65 ingress protection rating.
-
M12 Connection: Features an M12 male connector compatible with the SPEEDCON connection system.
The DL100-21AA2101 delivers the reliability and precision required for industrial distance measurement, automated positioning, and material handling applications.
