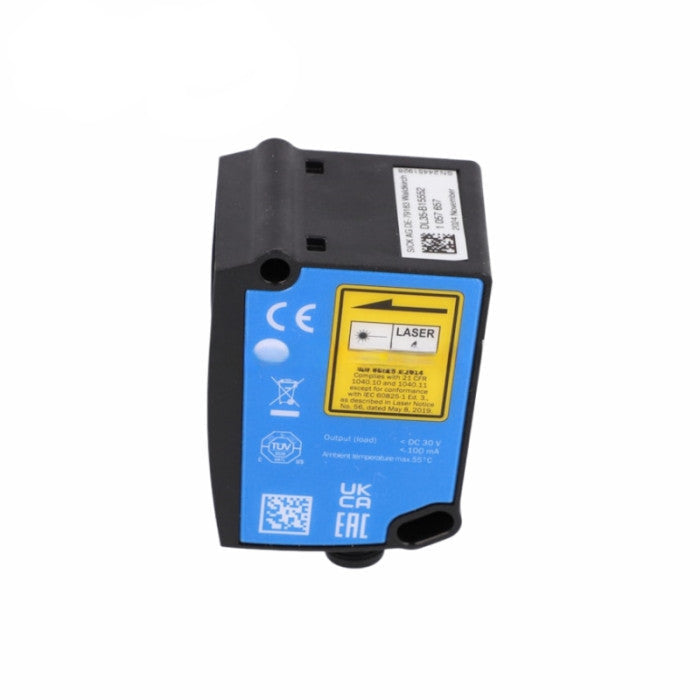

Sick DL35-B15552 Dx35 Laser Distance Sensor
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DL35-B15552
Description
The Sick DL35-B15552 is a mid-range laser distance sensor from the Dx35 series, designed for non-contact distance measurement in industrial automation systems. It measures distances from 200 mm to 35,000 mm using a compatible reflector and provides configurable digital and analog outputs for integration with PLCs and industrial control equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Sick |
| Category | Industrial Automation |
| Part Number | DL35-B15552 |
| Series | Dx35 |
| Subcategory | Laser Distance Sensors |
| Sensor Type | Mid-Range Laser Distance Sensor |
| Measuring Range | 200–35,000 mm (with specified reflective tape) |
| Repeatability | ≥ 0.5 mm, depending on conditions |
| Typical Accuracy | ±15 mm |
| Light Source | Red laser, 658 nm |
| Laser Class | Class 1 |
| Supply Voltage | 12–30 V DC |
| Digital Outputs | Push-pull, PNP/NPN configurable |
| Analog Output | 4–20 mA or 0–10 V, configurable |
| Response Time | 2.5–96.5 ms, configurable |
| Connection Type | M12, 5-pin male connector |
| Housing Material | ABS/PC Plastic |
| Dimensions (W × H × D) | 32 × 58.67 × 42.7 mm |
| Storage Temperature | −40°C to +75°C |
| Weight | 65 g |
Information About DL35-B15552
The DL35-B15552 uses red laser technology to measure the distance to a target reflector. It offers a measuring range of up to 35 m when used with diamond-grade reflective tape, with a typical measurement accuracy of ±15 mm and a resolution of 0.1 mm. The sensor supports IO-Link communication, a configurable digital output, and an analog output selectable between current and voltage signals. Its compact housing, five-pin M12 connector, and IP65/IP67 enclosure rating make it suitable for industrial environments
Key Features:
- Laser Distance Measurement: Measures target distance without physical contact.
- Extended Measuring Range: Measures from 200 mm to 35 m with a suitable reflector.
- Red Laser Source: Uses visible red laser light at a wavelength of 658 nm.
- High Resolution: Provides a measurement resolution of 0.1 mm.
- Flexible Outputs: Supports push-pull digital outputs and configurable analog current or voltage output.
- Fast Response: Configurable response times starting at 2.5 ms.
- Industrial Protection: Features IP65/IP67 protection and a compact ABS/PC housing.
The Sick DL35-B15552 provides long-range optical distance measurement and flexible signal integration for industrial automation and positioning applications.
