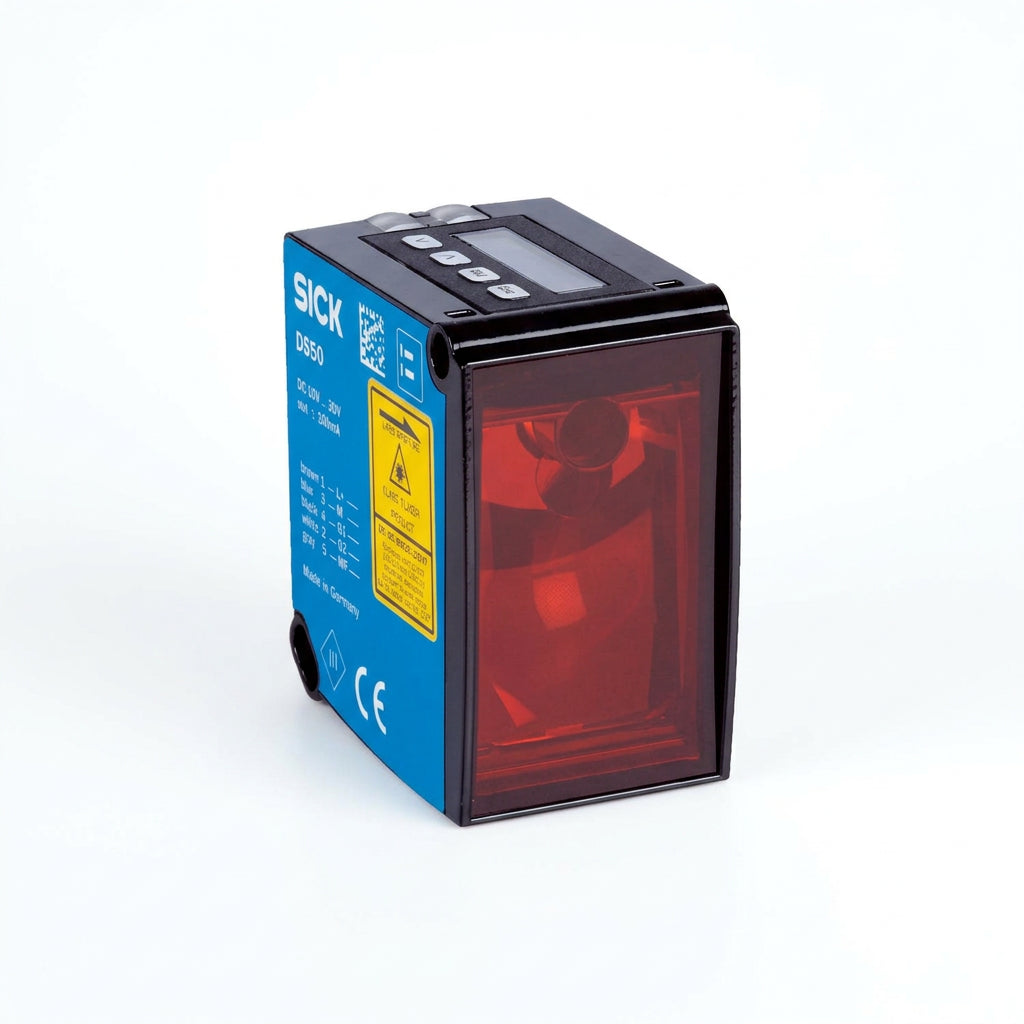

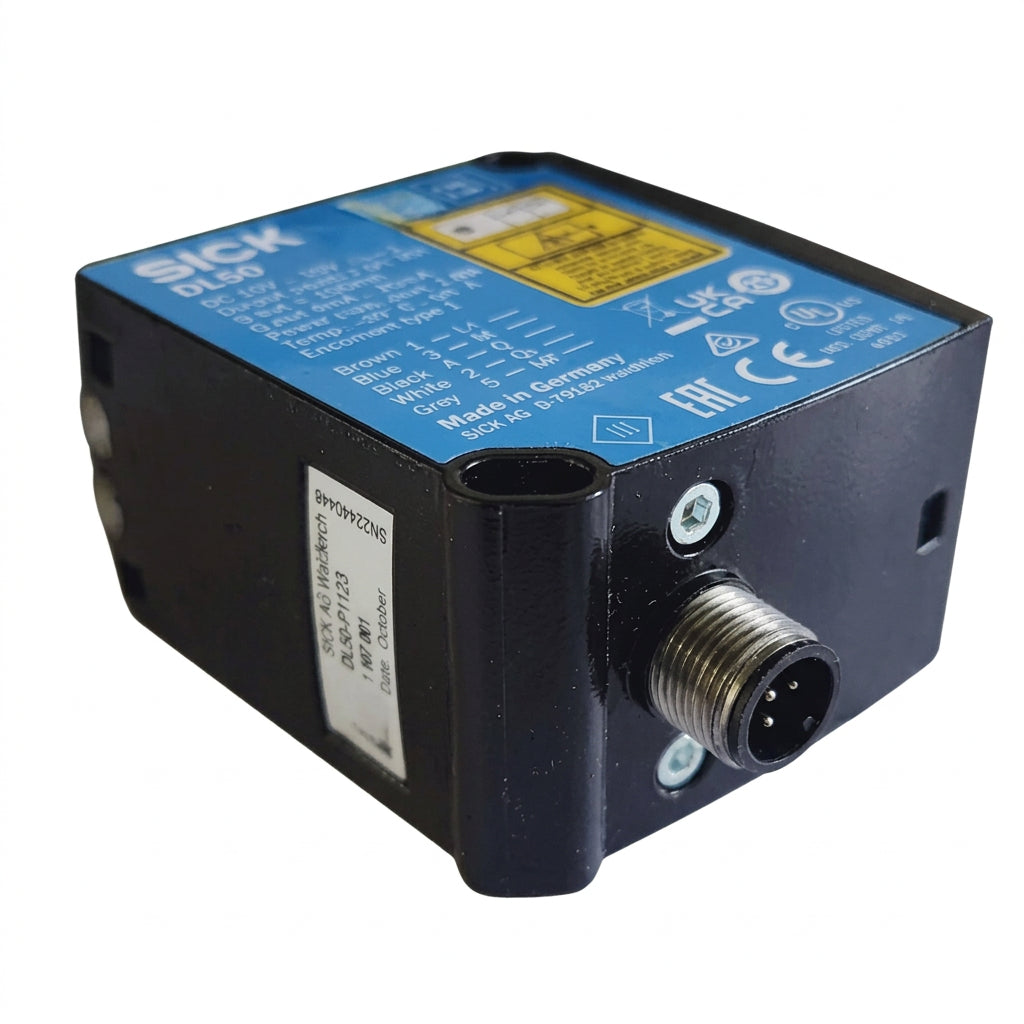

SICK DL50-P1123 Dx50 Laser Distance Sensor 50 m with Analog Output
- Regular price
- $649.00
- Sale price
- $649.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DL50-P1123
Description
The SICK DL50-P1123 is a mid-range laser distance sensor designed for precise, non-contact distance measurement and positioning in industrial automation systems. Part of the SICK Dx50 series, it measures distances from 200 mm to 50 m when used with compatible Diamond Grade reflective tape, providing a 1 mm resolution, ±7 mm accuracy, and analog and digital outputs for integration with industrial controllers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors & Switches |
| Part Number | DL50-P1123 |
| Subcategory | Laser Distance Sensors |
| Manufacturer Order Number | 1047361 |
| Product Series | Dx50 |
| Sensor Type | Mid-range laser distance sensor |
| Measurement Principle | Time-of-flight |
| Measuring Range | 200 mm–50,000 mm with compatible Diamond Grade reflective tape |
| Target Type | Reflector |
| Resolution | 1 mm |
| Measurement Accuracy | ±7 mm |
| Repeatability | ≥ 2 mm, depending on averaging settings |
| Response Time | 15–30 ms |
| Light Source | Visible red laser, 658 nm |
| Laser Class | Class 1 |
| Supply Voltage | 10–30 V DC |
| Power Consumption | ≤ 2.1 W, without load |
| Analog Output | 4–20 mA, 16-bit resolution |
| Digital Output | 1 × PNP, maximum 100 mA |
| Multifunctional Input | 1 |
| Connection | M12 male connector, 5-pin |
| Enclosure Rating | IP65 |
| Housing Material | Zinc die-cast metal |
| Dimensions (W × H × D) | 36.1 × 62.7 × 57.7 mm |
| Operating Temperature | −30 °C to +65 °C; higher limits possible with specified cooling and protection accessories |
| Weight | 0.99 lb |
Information About DL50-P1123
The DL50-P1123 is a reflector-based distance sensor with SICK manufacturer order number 1047361. It uses a visible red Class 1 laser with a wavelength of 658 nm to measure distance to a compatible reflector. The sensor provides a 4–20 mA analog output, one PNP digital output, and a multifunctional input for configuration and control. Its zinc die-cast metal housing, compact dimensions, and IP65 protection rating support installation in industrial environments.
Key Features:
-
Long-Range Measurement: Measures from 200 mm to 50 m using compatible Diamond Grade reflective tape.
-
High-Resolution Output: Provides 1 mm measurement resolution for distance monitoring.
-
Measurement Accuracy: Offers ±7 mm accuracy under specified operating conditions.
-
Fast Response: Supports response times of 15–30 ms, depending on configuration and measurement conditions.
-
Red Class 1 Laser: Uses visible red laser light at 658 nm for optical distance measurement.
-
Analog Output: Supplies a 4–20 mA signal with 16-bit resolution.
-
PNP Switching Output: Includes one digital output rated for a maximum output current of 100 mA.
-
Industrial Protection: Features an IP65 enclosure and an M12 5-pin male connector.
The DL50-P1123 delivers reliable distance feedback for automated storage systems, conveyor positioning, material handling, and industrial machine monitoring.
