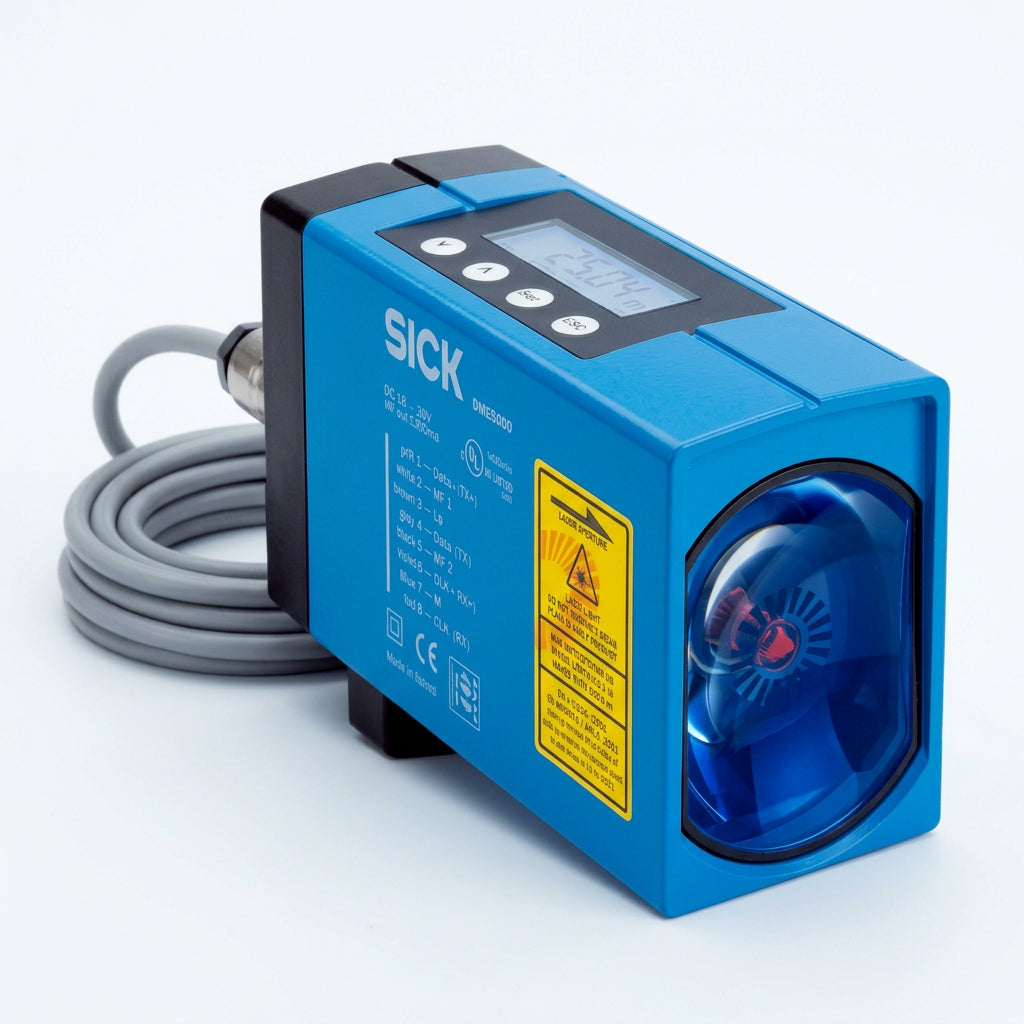

SICK DME5000-113 Long-Range Laser Distance Sensor 70 m RS-422
- Regular price
- $2,199.00
- Sale price
- $2,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DME5000-113
Description
The SICK DME5000-113 is a long-range laser distance sensor designed for precise, non-contact distance measurement in industrial automation and positioning systems. With a measuring range of 0.15 to 70 meters when used with compatible reflective tape, it provides ±2 mm measurement accuracy and RS-422 communication for reliable distance feedback in automated material handling and storage systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors & Switches |
| Part Number | DME5000-113 |
| Subcategory | Laser Distance Sensors |
| Manufacturer Order Number | 1025248 |
| Product Series | DME5000 |
| Sensor Type | Long-range laser distance sensor |
| Measuring Range | 0.15–70 m with compatible diamond-grade reflective tape |
| Repeatability | 0.5 mm under specified conditions |
| Response Time | 6 ms |
| Laser Type | Visible red laser, Class 2 |
| Supply Voltage | 18–30 V DC |
| Current Consumption | Less than 250 mA at 24 V DC |
| Communication Interface | RS-422 |
| Maximum Output Current | 100 mA |
| Connection | M16 male connector, 8-pin |
| Housing Material | Zinc die-cast metal |
| Operating Temperature | −10 °C to +55 °C |
| Weight | 4.08 lb |
Information About DME5000-113
The DME5000-113 belongs to SICK’s DME5000 series of long-range distance sensors and carries manufacturer order number 1025248. It uses a visible red Class 2 laser and a reflector-based measurement method to determine distance accurately over long ranges. The device features two push-pull digital outputs configurable for PNP or NPN operation, along with an RS-422 serial interface and a multifunctional input. Its zinc die-cast metal housing, glass optical window, and IP65 enclosure rating support use in demanding industrial environments.
Key Features:
-
Long-Range Measurement: Measures distances from 0.15 to 70 meters when used with compatible diamond-grade reflective tape.
-
High Measurement Accuracy: Provides measurement accuracy of ±2 mm under specified operating conditions.
-
Repeatable Results: Offers 0.5 mm repeatability under consistent environmental conditions.
-
Fast Response: Features a 6 ms response time for dynamic positioning applications.
-
Visible Red Laser: Uses a Class 2 laser source for non-contact distance measurement.
-
Flexible Digital Outputs: Includes two push-pull outputs supporting PNP or NPN configurations.
-
Serial Communication: Provides an RS-422 interface for transmitting measurement data to compatible control systems.
-
Industrial Construction: Features an IP65-rated enclosure with a zinc die-cast metal housing and glass window.
The DME5000-113 delivers the measurement precision and dependable feedback required for automated storage and retrieval systems, conveyor positioning, industrial material handling, and machine positioning applications.
