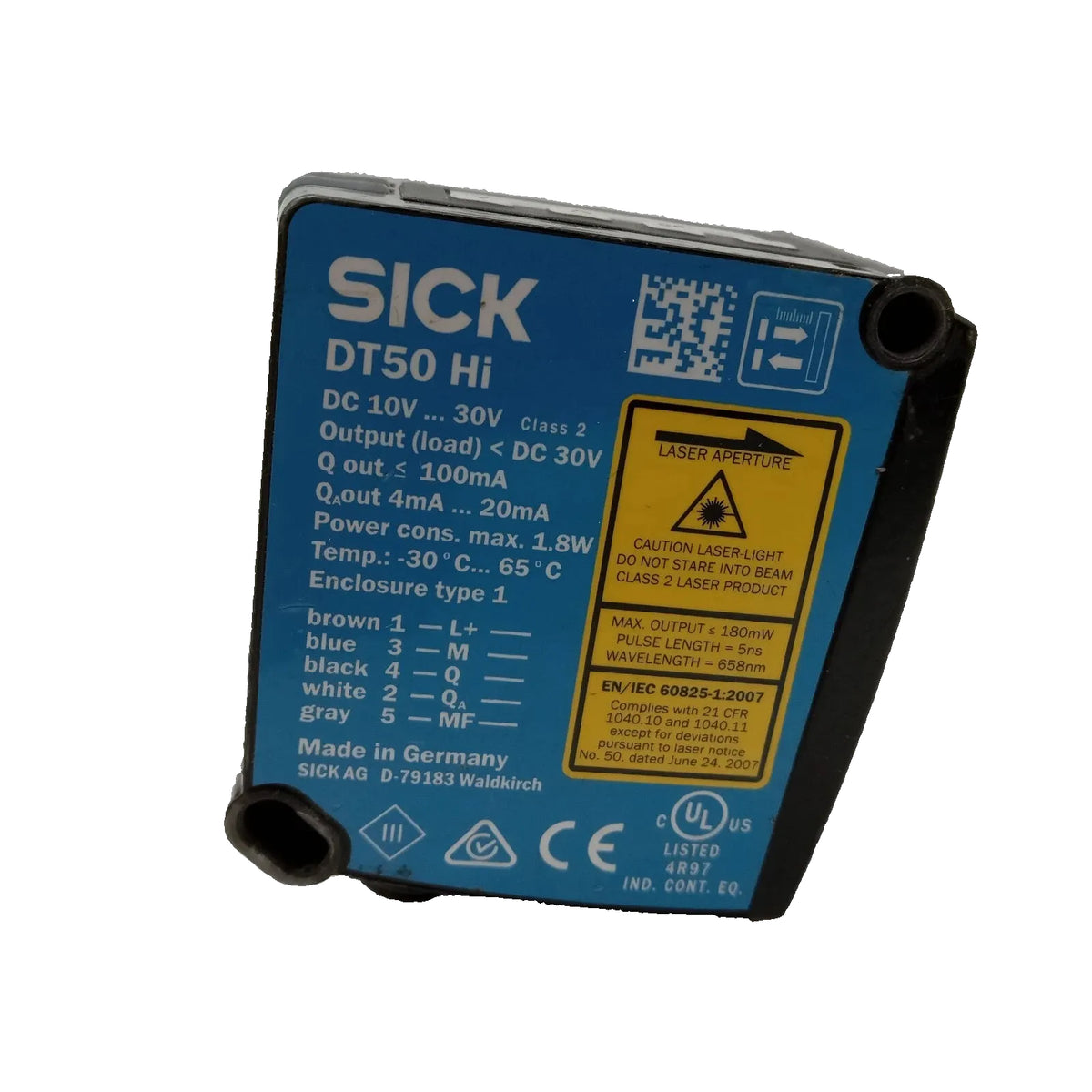

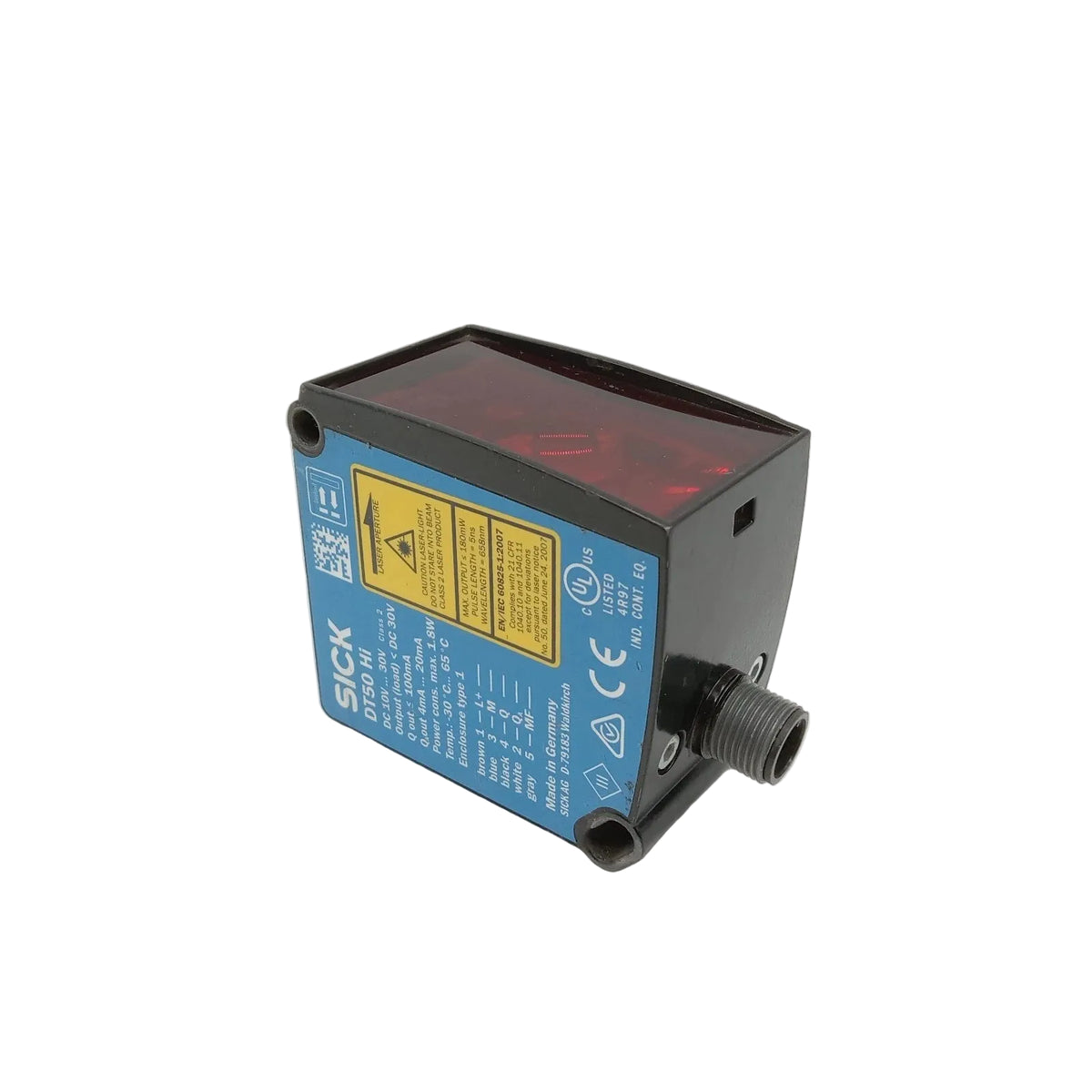

SICK DT50-P2113 Laser Distance Sensor, 20 m Range, PNP and 4–20 mA Output
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DT50-P2113
Description
The SICK DT50-P2113 is a laser distance sensor designed for non-contact distance measurement and object-position monitoring in industrial automation systems. With a measuring range of up to 20 m, a PNP switching output, and a 4–20 mA analog output, it supports distance feedback, material positioning, and process monitoring in manufacturing and material-handling applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation |
| Part Number | DT50-P2113 |
| Subcategory | Laser Distance Sensors |
| Manufacturer Part Number | 1047314 |
| Product Type | Time-of-flight laser distance sensor |
| Measuring Range | 200 mm–20 m, depending on target reflectivity |
| Outputs | 1 × PNP digital; 1 × 4–20 mA analog |
| Supply Voltage | 10–30 VDC |
| Response Time | 15, 30, or 80 ms |
| Connection / Protection | M12 5-pin; IP65 |
| Protection Rating | IP67 |
| Housing Material | Plastic |
| Performance Level | PL d, EN ISO 13849 |
| Safety Category | Category 3, EN ISO 13849 |
| Supply Voltage | 24 VDC nominal; 16.8–28.8 VDC |
| Power Consumption | 0.8 A without output load; up to 2.3 A at maximum output load |
| Communication Interface | RS-422 measured-data output; SICK EFI communication |
| Laser Class | Class 1 |
| Enclosure Rating | IP65 |
| Weight | 200 g |
Information About DT50-P2113
The DT50-P2113 belongs to SICK’s Dx50 series and uses time-of-flight laser technology to measure distances to natural objects. Its visible red 658 nm laser supports alignment and setup, while the integrated display and control interface allow users to configure measurement behavior. The sensor operates on 10–30 VDC and connects through a five-pin M12 male connector. Its IP65 housing and configurable response times make it suitable for a range of industrial measurement tasks.
Key Features:
-
Long Measuring Range: Measures distances from 200 mm up to 20,000 mm under specified target-reflectivity conditions.
-
Time-of-Flight Technology: Supports non-contact distance measurement for industrial applications.
-
Analog Output: Provides a 4–20 mA signal for PLCs and process-control systems.
-
PNP Switching Output: Provides a discrete output for object-position or threshold monitoring.
-
Adjustable Response Time: Selectable 15 ms, 30 ms, or 80 ms settings support different measurement requirements.
-

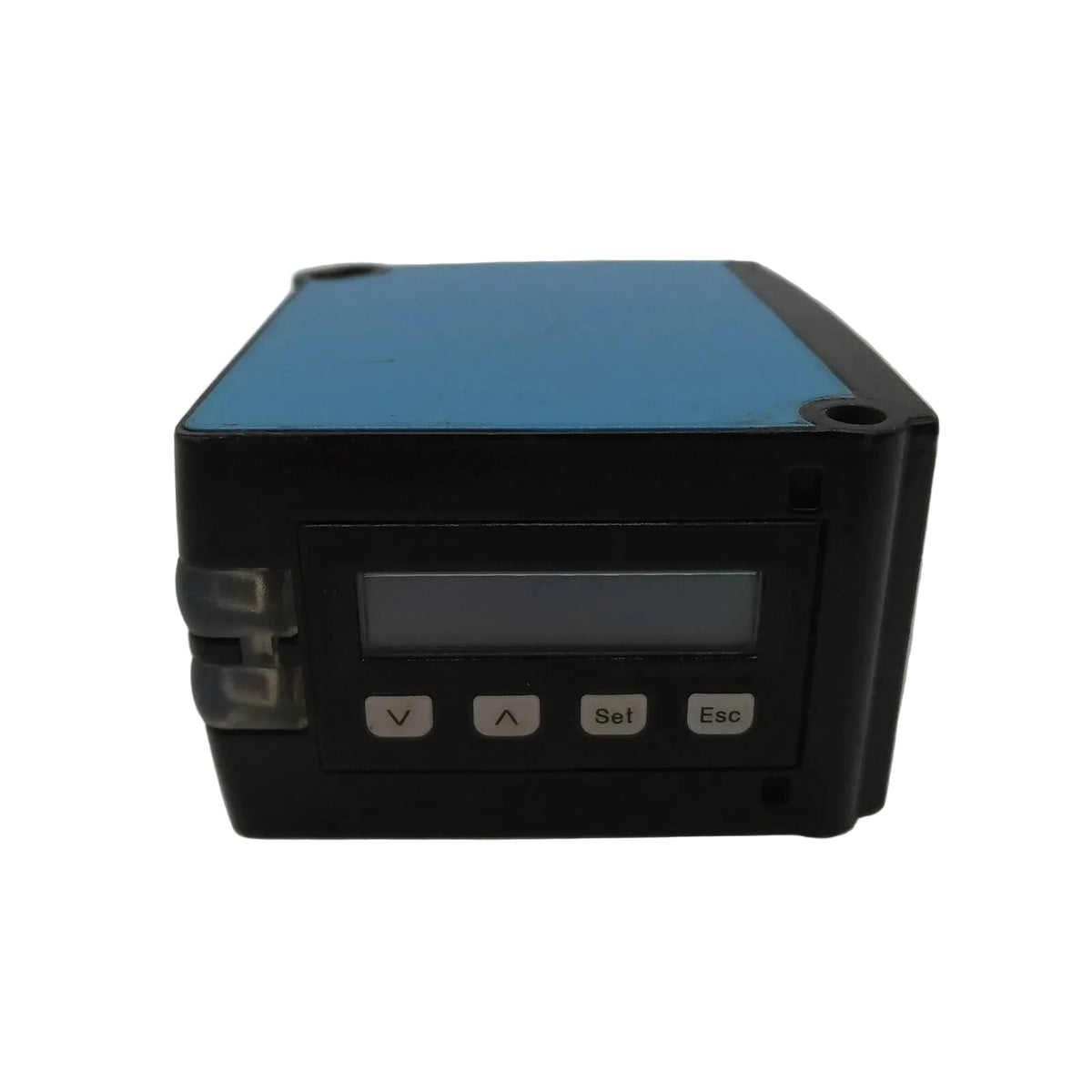

Integrated Display: Includes an LCD and LED indicators for configuration and status monitoring.
-
M12 Connector: Uses a five-pin connection for industrial wiring.
-
IP65 Protection: Supports installation in environments requiring dust and water-jet protection.
The DT50-P2113 delivers the reliability and precision required for long-range distance measurement, positioning, and industrial process monitoring.
