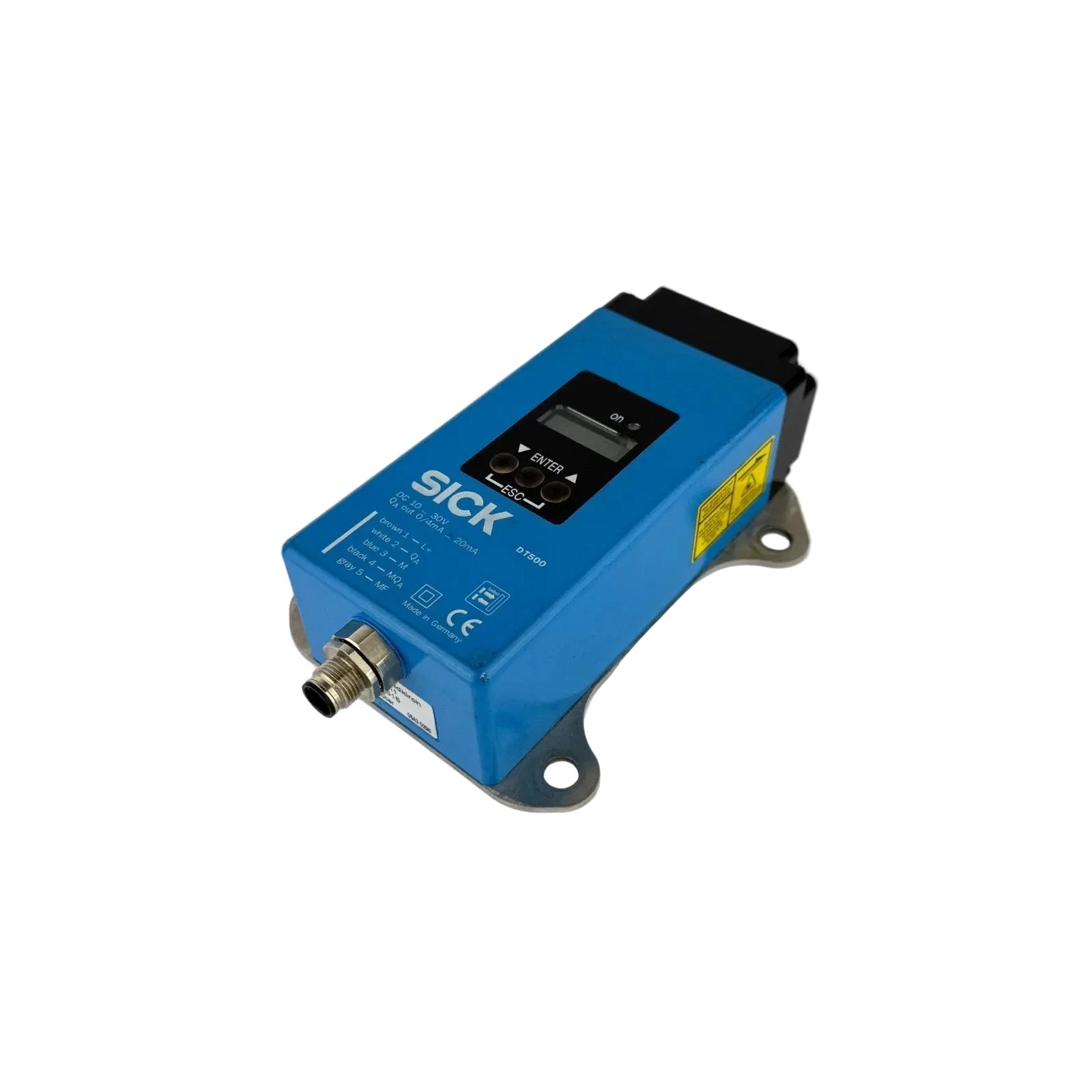

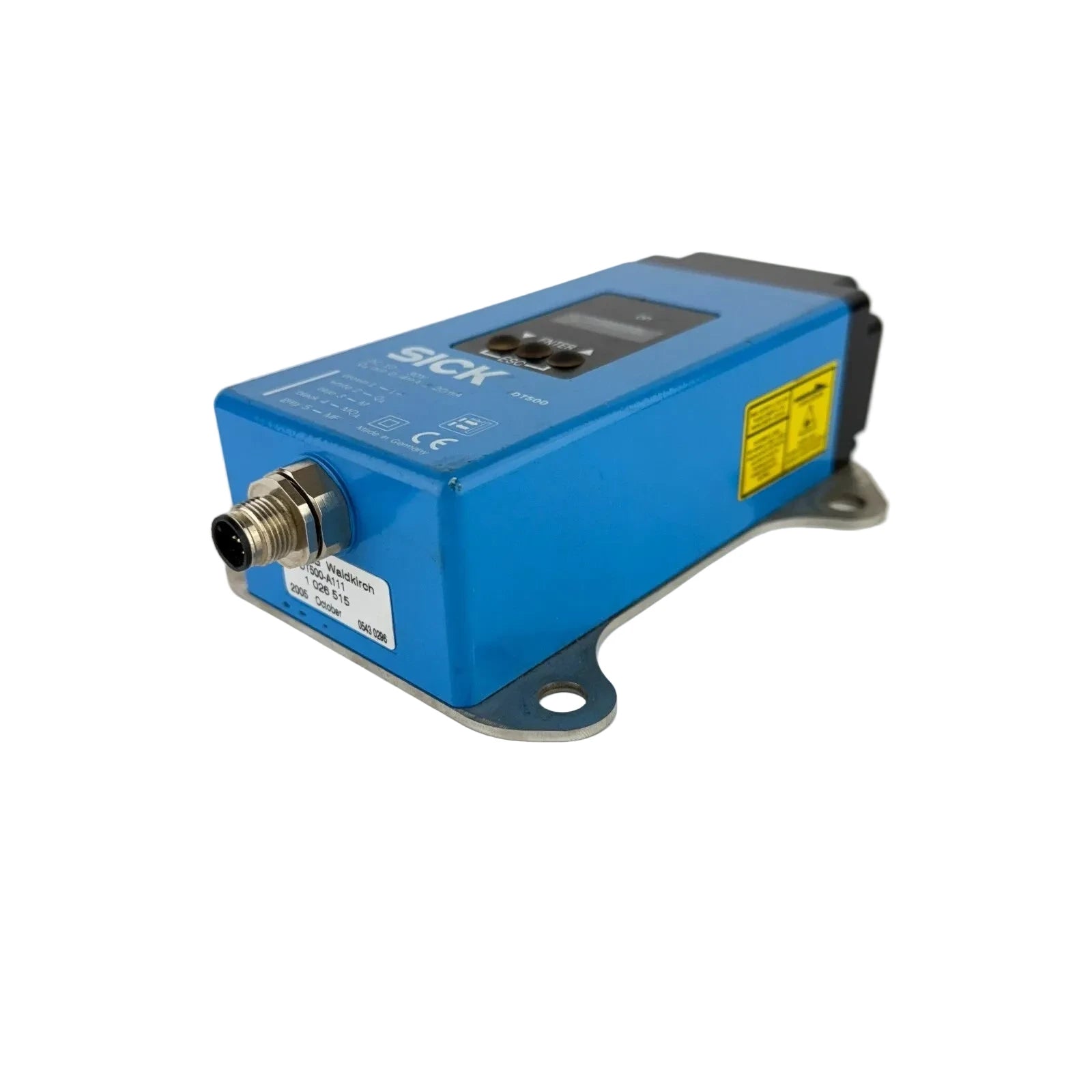

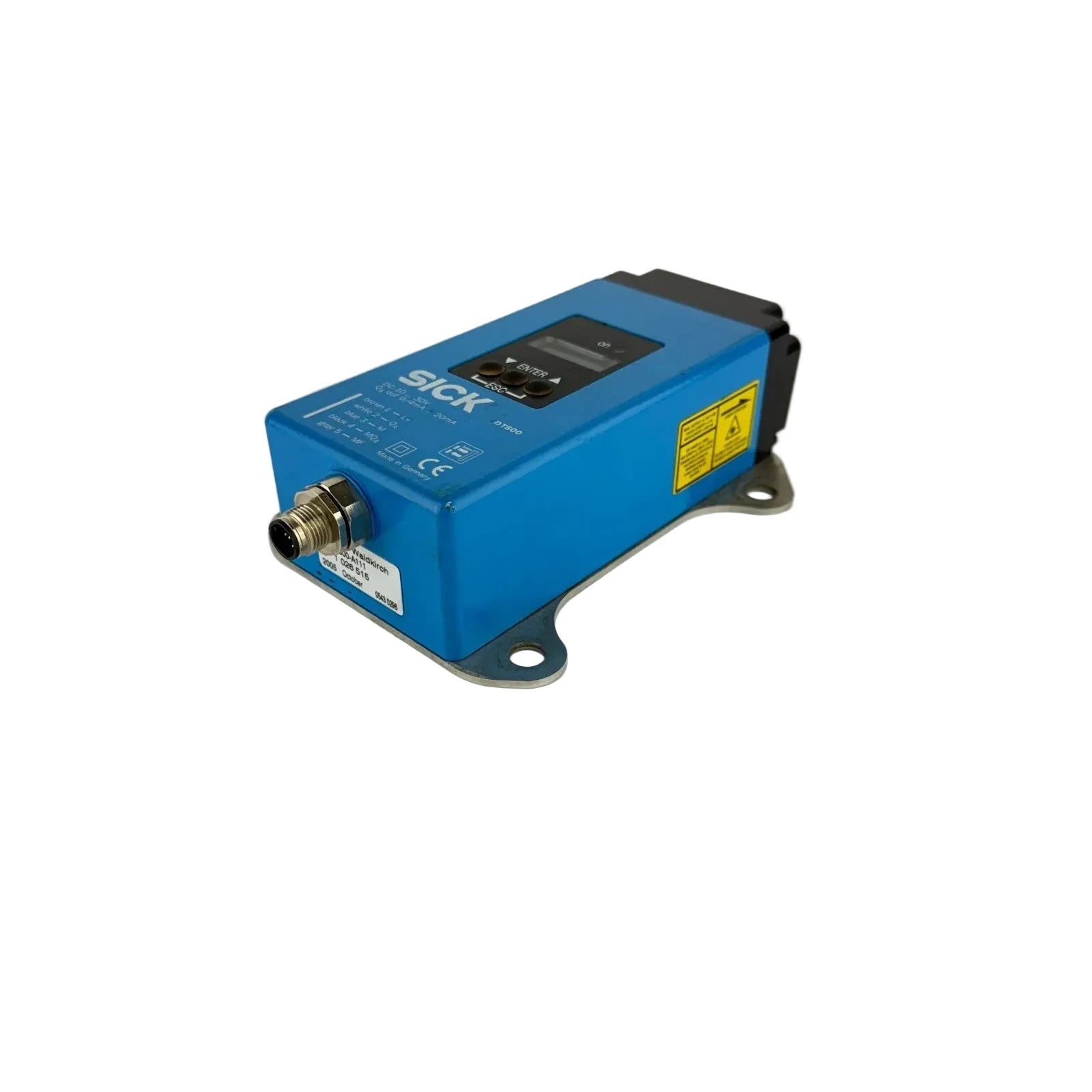

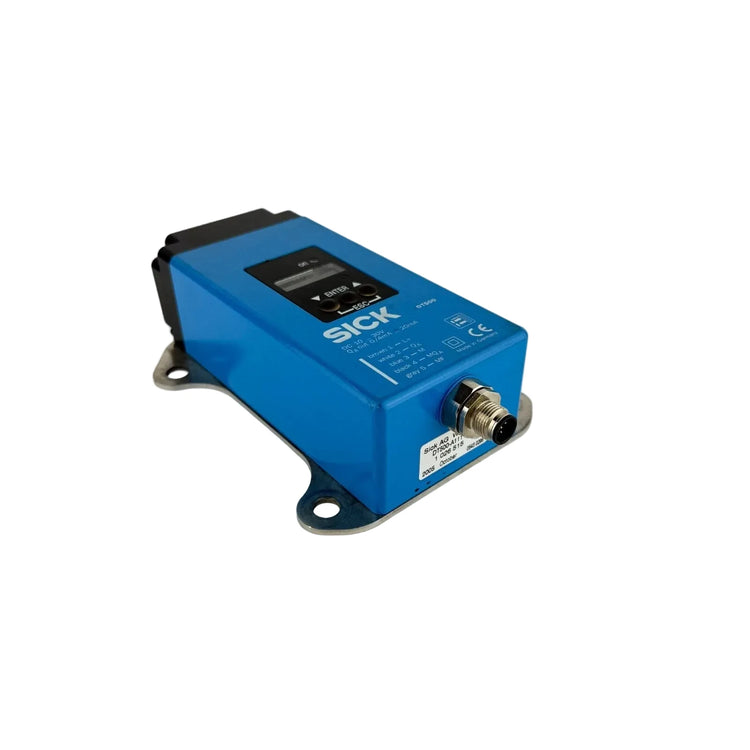

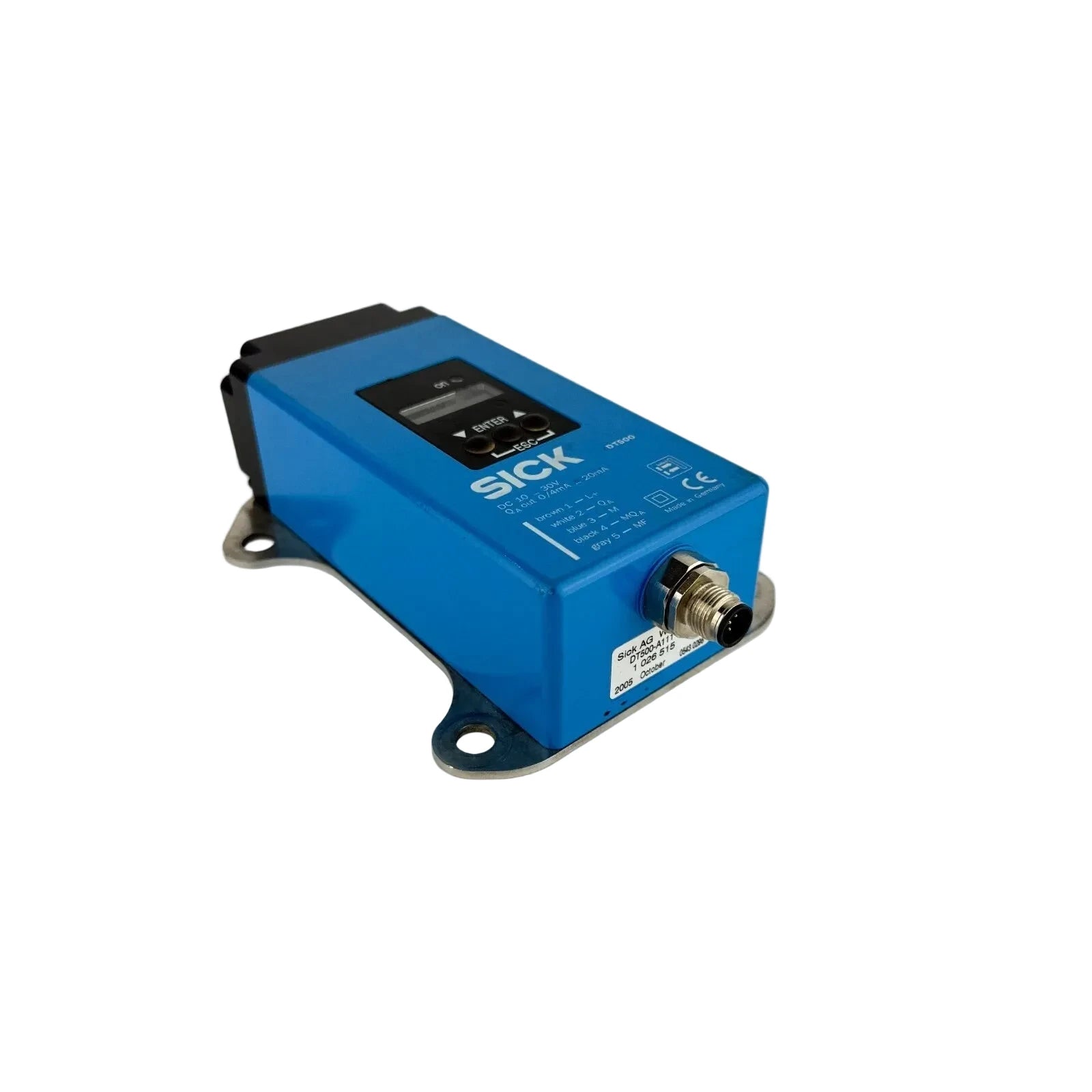

SICK DT500-A111 Long-Range Laser Distance Sensor
- Regular price
- $2,099.00
- Sale price
- $2,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DT500-A111
Description
The SICK DT500-A111 is a long-range laser distance sensor designed for precise, non-contact measurement in industrial automation systems. It uses visible red laser light to measure distances up to 30 m on targets with 90% remission, providing measurement accuracy of ±3 mm and repeatability of 1 mm. The sensor features a 0–20 mA configurable analog output, a 10–30 V DC supply, and an IP65-rated housing.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | DT500-A111 |
| Subcategory | Laser Distance Sensors |
| Product Family | Dx500 |
| Device Type | Long-range laser distance sensor |
| Measurement Principle | Time-of-flight |
| Measuring Range (90% Remission) | 0.2–30 m |
| Measuring Range (6% Remission) | 0.8–15 m |
| Target Type | Natural objects |
| Resolution | 12 bit |
| Measurement Accuracy | ±3 mm |
| Repeatability | 1 mm |
| Response Time | 250 ms |
| Output Time | 250 ms |
| Light Source | Visible red laser |
| Laser Class | Class 2 |
| Analog Output | Configurable 0–20 mA / 4–20 mA |
| Supply Voltage | 10–30 V DC |
| Power Consumption | Typical 3 W |
| Connection Type | 5-pin M12 male connector |
| Housing Material | Die-cast aluminum |
| Optical Window Material | Glass |
| Enclosure Rating | IP65 |
| Operating Temperature | −10 °C to +45 °C |
| Dimensions (W × H × D) | 69 × 50 × 153 mm |
| Manufacturer Article Number | 1026515 |
| Weight | 2.20 lb |
Information About DT500-A111
The DT500-A111 belongs to SICK’s Dx500 family of time-of-flight distance sensors. It measures natural objects without requiring a reflector, with a range of 0.2–30 m at 90% remission and 0.8–15 m at 6% remission. The sensor provides 12-bit resolution and a response time of 250 ms. Its 5-pin M12 connector, die-cast aluminum housing, and glass optical window support integration into industrial measurement and positioning systems.
Key Features:
-
Long-Range Measurement: Measures distances up to 30 m under specified target conditions.
-
Red Laser Source: Uses visible red laser light for straightforward alignment.
-
Measurement Accuracy: Provides accuracy of ±3 mm.
-
Repeatability: Supports repeatable measurements with 1 mm repeatability under specified conditions.
-
Analog Output: Provides a configurable 0–20 mA or 4–20 mA current output.
-
Electrical Supply: Operates with a 10–30 V DC supply.
-
Industrial Housing: Uses a die-cast aluminum enclosure and glass optical window.
-
Environmental Protection: IP65-rated housing helps protect against dust and water jets.
The DT500-A111 delivers the reliability and precision required for long-range distance measurement, material positioning, and industrial process automation.
