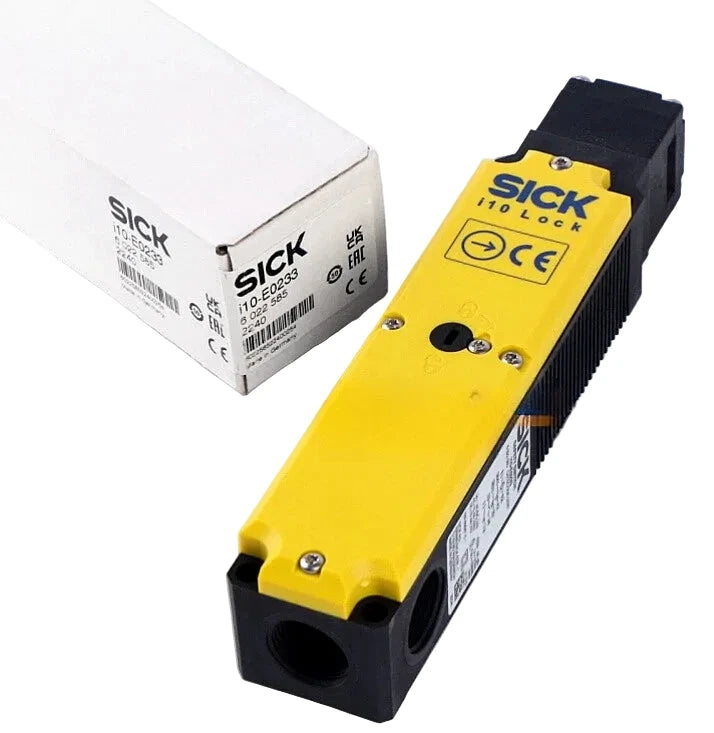

SICK I10-E0233 Electromechanical Safety Locking Switch
- Regular price
- $315.00
- Sale price
- $315.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: I10-E0233
Description
The SICK I10-E0233 is an electromechanical safety locking switch designed to monitor and secure access doors on industrial machinery. It uses a power-to-lock mechanism with a 24 V DC solenoid and mechanical contacts to support machine guarding and access control applications. The switch features three normally closed contacts, one normally open contact, and an IP67-rated enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | I10-E0233 |
| Subcategory | Safety Interlock Switches |
| Product Series | i10 Lock |
| Device Type | Electromechanical safety locking switch |
| Locking Principle | Power to lock |
| Solenoid Operating Voltage | 20.4–26.4 V DC |
| Nominal Solenoid Voltage | 24 V DC |
| Solenoid Monitoring Contacts | 2 NC, 1 NO |
| Door Monitoring Contacts | 1 NC |
| Maximum Locking Force | 1,300 N |
| Rated Locking Force | 1,000 N |
| Rated Operating Current | 4 A at 230 V AC / 24 V DC |
| Rated Insulation Voltage | 250 V |
| Connection Type | 3 × M20 cable entries |
| Housing Material | Glass-fiber-reinforced thermoplastic |
| Enclosure Rating | IP67 |
| Operating Temperature | −20 °C to +55 °C |
| Mechanical Life | 1,000,000 switching cycles |
| Weight | 0.93 lb |
Information About I10-E0233
The I10-E0233 belongs to SICK’s i10 Lock series of electromechanical safety locking devices. Its power-to-lock principle engages the locking mechanism when the solenoid is energized. The device provides a maximum locking force of 1,300 N and a rated locking force of 1,000 N. Its glass-fiber-reinforced thermoplastic housing and three M20 cable entries support industrial installation requirements.
Key Features:
-
Electromechanical Safety Lock: Combines door access control with an electrically operated locking mechanism.
-
Power-to-Lock Operation: Engages the lock when the solenoid receives power.
-
Solenoid Supply: Operates with a 24 V DC nominal supply.
-
Contact Configuration: Includes two positively driven NC solenoid-monitoring contacts and one NO solenoid-monitoring contact.
-
Locking Force: Provides a maximum locking force of 1,300 N and a rated locking force of 1,000 N.
-
Electrical Rating: Supports up to 4 A at 230 V AC or 24 V DC for the specified utilization categories.
-
Enclosure Protection: IP67-rated housing helps protect against dust and water ingress.
-
Cable Entry: Includes three M20 cable-gland entries for wiring.
The I10-E0233 delivers the reliability and precision required for industrial machine guarding, safety-door locking, and equipment access-control applications.
Description
The SICK I10-E0233 is an electromechanical safety locking switch designed to monitor and secure access doors on industrial machinery. It uses a power-to-lock mechanism with a 24 V DC solenoid and mechanical contacts to support machine guarding and access control applications. The switch features three normally closed contacts, one normally open contact, and an IP67-rated enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | I10-E0233 |
| Subcategory | Safety Interlock Switches |
| Product Series | i10 Lock |
| Device Type | Electromechanical safety locking switch |
| Locking Principle | Power to lock |
| Solenoid Operating Voltage | 20.4–26.4 V DC |
| Nominal Solenoid Voltage | 24 V DC |
| Solenoid Monitoring Contacts | 2 NC, 1 NO |
| Door Monitoring Contacts | 1 NC |
| Maximum Locking Force | 1,300 N |
| Rated Locking Force | 1,000 N |
| Rated Operating Current | 4 A at 230 V AC / 24 V DC |
| Rated Insulation Voltage | 250 V |
| Connection Type | 3 × M20 cable entries |
| Housing Material | Glass-fiber-reinforced thermoplastic |
| Enclosure Rating | IP67 |
| Operating Temperature | −20 °C to +55 °C |
| Mechanical Life | 1,000,000 switching cycles |
| Weight | 0.93 lb |
Information About I10-E0233
The I10-E0233 belongs to SICK’s i10 Lock series of electromechanical safety locking devices. Its power-to-lock principle engages the locking mechanism when the solenoid is energized. The device provides a maximum locking force of 1,300 N and a rated locking force of 1,000 N. Its glass-fiber-reinforced thermoplastic housing and three M20 cable entries support industrial installation requirements.
Key Features:
-
Electromechanical Safety Lock: Combines door access control with an electrically operated locking mechanism.
-
Power-to-Lock Operation: Engages the lock when the solenoid receives power.
-
Solenoid Supply: Operates with a 24 V DC nominal supply.
-
Contact Configuration: Includes two positively driven NC solenoid-monitoring contacts and one NO solenoid-monitoring contact.
-
Locking Force: Provides a maximum locking force of 1,300 N and a rated locking force of 1,000 N.
-
Electrical Rating: Supports up to 4 A at 230 V AC or 24 V DC for the specified utilization categories.
-
Enclosure Protection: IP67-rated housing helps protect against dust and water ingress.
-
Cable Entry: Includes three M20 cable-gland entries for wiring.
The I10-E0233 delivers the reliability and precision required for industrial machine guarding, safety-door locking, and equipment access-control applications.
