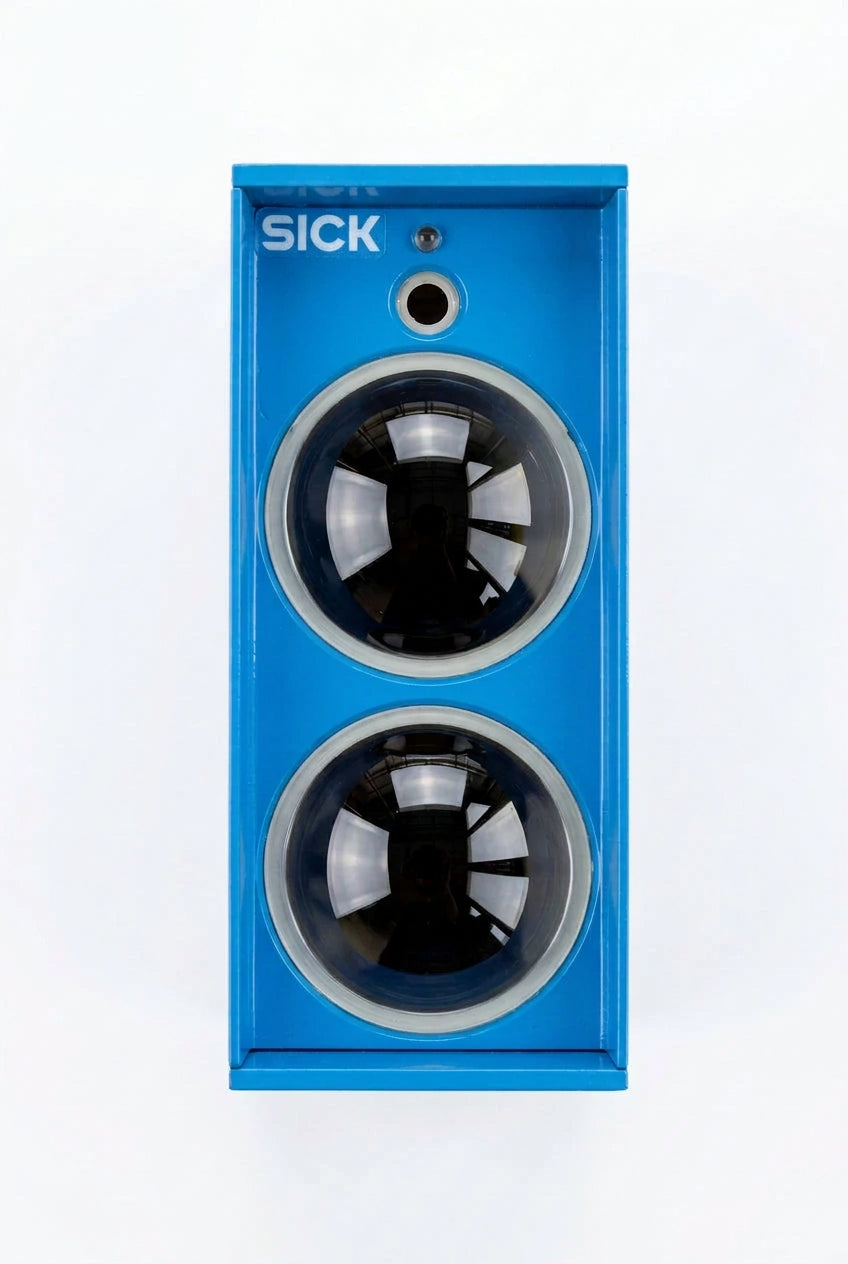

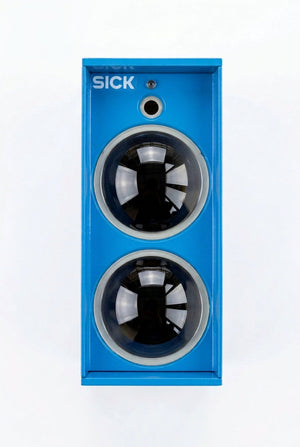

SICK ISD230-4111 Infrared Industrial Data Transmission System
- Regular price
- $2,085.00
- Sale price
- $2,085.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ISD230-4111
Description
The SICK ISD230-4111 is an infrared data transmission unit designed for contactless serial communication between industrial equipment across distances of up to 200 m. It supports selectable RS-232, RS-422, RS-485, and 20 mA current-loop interfaces, making it suitable for transferring data between compatible controllers and equipment where a physical data cable is impractical.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors & Switches |
| Part Number | ISD230-4111 |
| Subcategory | Infrared Data Transmission Systems |
| Manufacturer Part Number | 1017389 |
| Product Type | Infrared data transmission unit |
| Transmission Range | 0.2–200 m |
| Light Source | Infrared LED, 860 nm |
| Data Interfaces | RS-232, RS-422, RS-485, 20 mA current loop |
| Maximum Data Rate | 38.4 kBaud |
| Supply Voltage | 24 V DC; ±20% without heater, +20%/−5% with heater |
| Current Consumption | ≤ 0.4 A without heater; ≤ 2.5 A with heater |
| Connection | 9-pin D-Sub connector |
| Enclosure Rating | IP54 |
| Operating Temperature | 0°C to +55°C without heater; −38°C to +55°C with heater |
| Weight | 1.87 lb |
Information About ISD230-4111
The ISD230-4111 belongs to SICK’s ISD 230 family of infrared data transmission systems for industrial applications. It uses an infrared LED operating at 860 nm and requires optical alignment between communicating units. The interface can be configured for different serial communication standards, with data rates up to 38.4 kBaud. Its metal housing, 9-pin D-Sub connector, and optional heater configuration support installation in industrial environments within the specified temperature limits.
Key Features:
-
Infrared Data Transmission: Transfers serial data optically without a direct electrical data cable between units.
-
Transmission Range: Supports communication over distances from 0.2 m to 200 m.
-
Infrared Light Source: Uses an 860 nm infrared LED.
-
Serial Interfaces: Supports RS-232, RS-422, RS-485, and 20 mA current-loop communication.
-
Data Rate: Supports transmission rates up to 38.4 kBaud.
-
Signal Delay: Provides a specified signal delay of 10 µs or less.
-
Electrical Supply: Operates on 24 V DC, with different voltage tolerances depending on whether the heater is used.
-
Industrial Housing: Features a metal enclosure, IP54 protection rating, and a 9-pin D-Sub connector.
The ISD230-4111 delivers the reliability and precision required for contactless serial data transmission in industrial automation and equipment communication systems.
