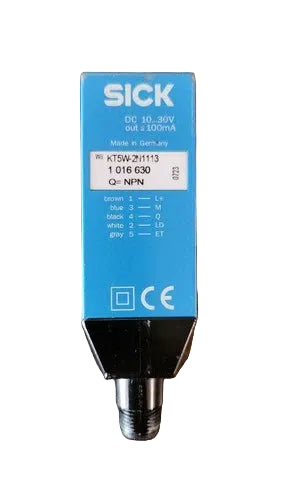

SICK KT5W-2N1113 RGB Contrast Sensor with NPN Output
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KT5W-2N1113
Description
The SICK KT5W-2N1113 is a contrast sensor designed to detect printed marks and differences in surface brightness on moving materials. RGB LED illumination, a 10 kHz switching frequency, and an NPN output support precise mark detection in packaging, printing, and labeling equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors & Switches |
| Part Number | KT5W-2N1113 |
| Subcategory | Photoelectric |
| Series | KT5 |
| Sensor Type | Contrast sensor |
| Light Source | RGB LED |
| Wavelengths | 470 nm, 525 nm, 640 nm |
| Sensing Distance | ≤10 mm from the leading edge of the lens |
| Light Spot | 1.2 × 4.2 mm; vertical relative to the long side of the housing |
| Supply Voltage | 10–30 V DC |
| Current Consumption | <80 mA without load |
| Switching Output | NPN; maximum output current 100 mA |
| Switching Frequency | 10 kHz at a light/dark ratio of 1:1 |
| Response Time | 50 µs |
| Adjustment | Teach-in button; dynamic teach-in |
| Connection Type | M12 plug, 5-pin |
| Housing and Dimensions | Zinc die-cast; 30.4 × 53 × 80 mm (W × H × D) |
| Enclosure Rating | IP67 |
| Weight | 0.88 lbs |
Information About KT5W-2N1113
The KT5W-2N1113 is part of the SICK KT5 series of contrast sensors with a zinc die-cast housing. Its three-color LED system selects a suitable illumination wavelength to distinguish the target mark from its background. Dynamic teach-in allows the switching threshold to be configured while the material moves through the sensing area. A 10–30 V DC supply and an M12 5-pin connector support connection to compatible industrial control systems.
Key Features:
- RGB LED Technology: Uses blue, green, and red illumination to detect contrast between marks and backgrounds.
- Short Sensing Distance: Detects targets up to 10 mm from the leading edge of the lens.
- Fast Switching: A 10 kHz switching frequency supports mark detection on rapidly moving materials.
- Rapid Response: A 50 µs response time enables prompt detection of contrast changes.
- NPN Output: Provides a short-circuit-protected switching output rated for up to 100 mA.
- Dynamic Teach-In: Sets the detection threshold using moving mark and background samples.
- Flexible Light Emission: Exchangeable lens placement allows emission from the long or short side of the housing.
- Protected Metal Housing: Combines zinc die-cast construction with IP67 protection for industrial use.
The KT5W-2N1113 delivers the reliability and precision required for contrast mark detection in automated printing and packaging processes.
