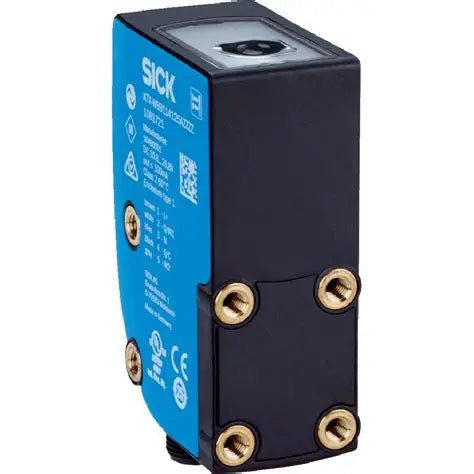

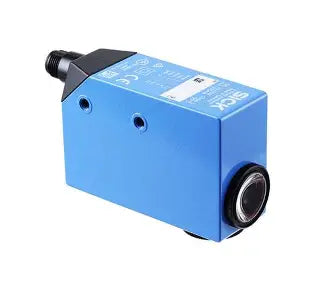

SICK KT5W-2P1116D RGB Contrast Sensor, 10 mm Range, PNP Output, IP67
- Regular price
- $935.00
- Sale price
- $935.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KT5W-2P1116D
Description
The SICK KT5W-2P1116D is a contrast sensor designed to detect differences in color or contrast on labels, packaging, printed materials, and other production-line targets. It uses RGB LED illumination and a short 10 mm sensing distance to reliably identify contrast marks for registration, positioning, and automated packaging applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation |
| Part Number | KT5W-2P1116D |
| Subcategory | Contrast Sensors |
| Manufacturer Part Number | 1026538 |
| Product Type | Contrast sensor |
| Sensing Distance | 10 mm |
| Light Source | RGB LED, 470 / 525 / 640 nm |
| Output / Supply Voltage | PNP; 10–30 VDC |
| Connection / Protection | M12 5-pin; IP67 |
| Dimensions (W × H × D) | 62 × 106 × 46.6 mm |
| Performance Level | PL d, EN ISO 13849 |
| Safety Category | Category 3, EN ISO 13849 |
| Supply Voltage | 24 VDC nominal; 16.8–28.8 VDC |
| Power Consumption | 0.8 A without output load; up to 2.3 A at maximum output load |
| Communication Interface | RS-422 measured-data output; SICK EFI communication |
| Laser Class | Class 1 |
| Enclosure Rating | IP65 |
| Operating Temperature | −10 to +50 °C |
| Storage Temperature | −25 to +50 °C |
| Dimensions (W × H × D) | 155 × 185 × 160 mm |
| Housing Material | Die-cast aluminum |
| Front Screen Material | Polycarbonate with external scratch-resistant coating |
| System Plug | Not included; compatible system plug required |
| Weight | 340 g |
Information About KT5W-2P1116D
The KT5W-2P1116D belongs to SICK’s KT5 series of contrast sensors and features a compact rectangular housing for industrial installation. Its RGB light source operates at wavelengths of 470 nm, 525 nm, and 640 nm to support detection of different contrast combinations. The sensor uses static two-point teach-in with manual fine adjustment and provides a PNP switching output for connection to compatible automation controllers. A rotatable five-pin M12 connector and IP67 protection support flexible installation in industrial environments.
Key Features:
-
RGB LED Illumination: Uses blue, green, and red wavelengths to detect contrast differences.
-
10 mm Sensing Distance: Supports close-range detection of registration marks and printed features.
-
Fast Switching: Provides a response time of 50 µs and switching frequency up to 10 kHz.
-
PNP Switching Output: Interfaces with compatible PLCs and industrial control equipment.
-
Teach-In Adjustment: Enables static two-point setup with manual fine adjustment.
-
Flexible Light Emission: Light can be emitted from the long or short side of the housing.
-
M12 Connector: Uses a five-pin connector that can be rotated up to 90 degrees.
-
IP67 Protection: Supports operation in environments exposed to dust and moisture.
The KT5W-2P1116D delivers the reliability and precision required for print-mark detection, packaging registration, and automated production control.
