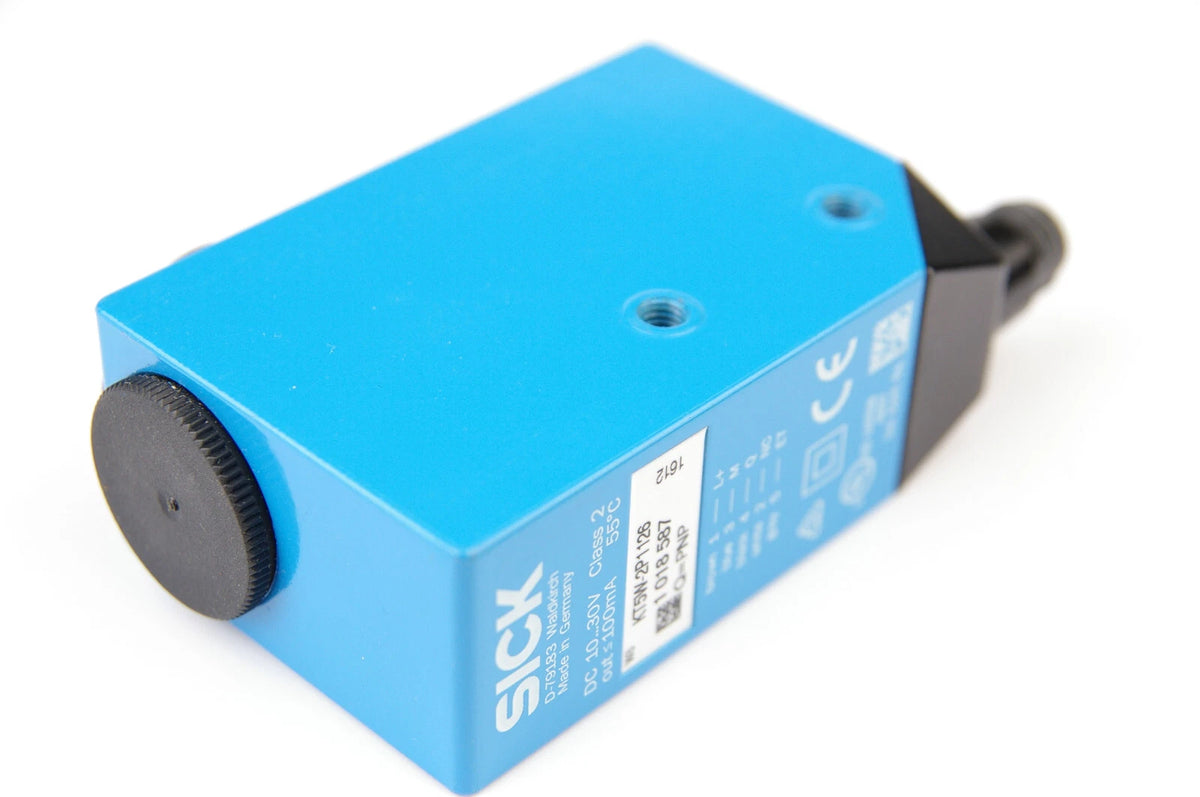

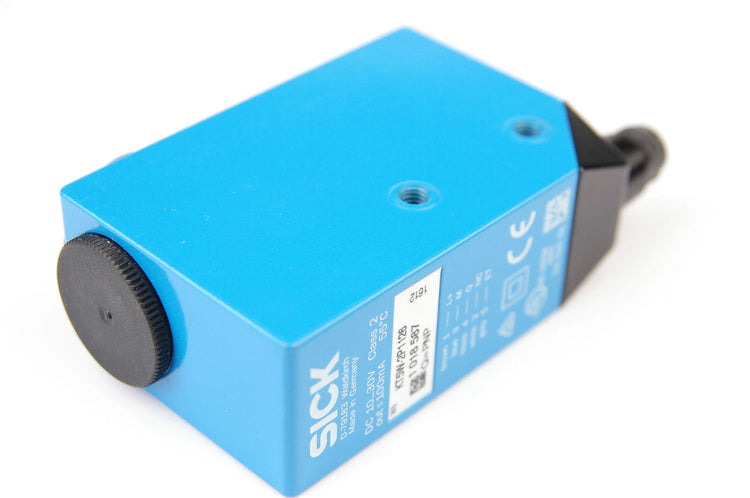

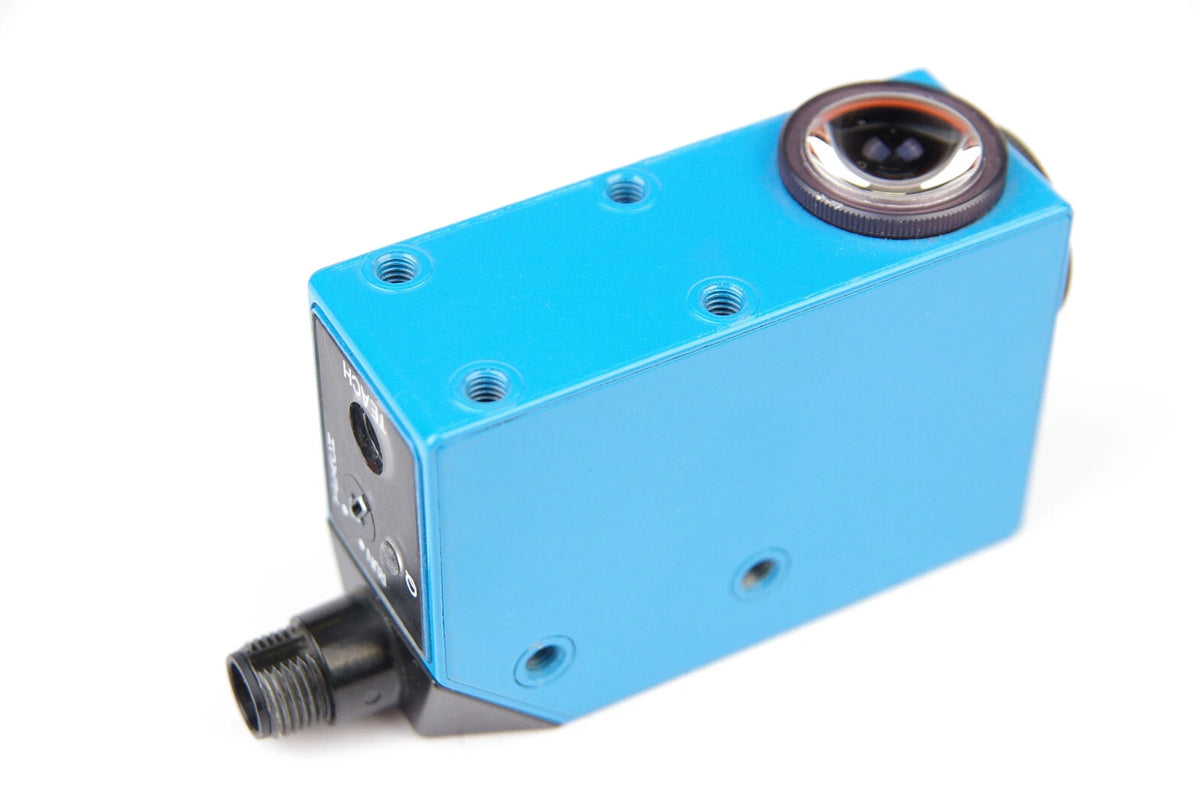

SICK KT5W-2P1126 RGB LED Contrast Sensor for Registration Mark Detection
- Regular price
- $825.00
- Sale price
- $825.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KT5W-2P1126
Description
The SICK KT5W-2P1126 is a contrast sensor designed to detect printed marks and differences in surface contrast on packaging materials and production lines. It uses RGB LED technology with selectable red, green, and blue illumination to identify contrast variations at a nominal sensing distance of 10 mm.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | KT5W-2P1126 |
| Subcategory | Contrast Sensors |
| Product Series | KT5 |
| Manufacturer Article Number | 1018587 |
| Sensor Type | Optical contrast sensor |
| Sensing Distance | 10 mm ± 3 mm |
| Light Source | RGB LED |
| Wavelengths | 470 nm, 525 nm, 640 nm |
| Light Spot Size | 1.2 × 4.2 mm |
| Light Spot Direction | Vertical |
| Adjustment Method | Teach-in button |
| Teach-In Mode | Static two-point teach-in |
| Switching Frequency | 10 kHz |
| Response Time | 50 µs |
| Switching Output | PNP |
| Maximum Output Current | 100 mA |
| Supply Voltage | 10–30 VDC |
| Current Consumption | Less than 80 mA, without load |
| Connection Type | M12 male connector, 5-pin |
| Housing Material | Zinc die-cast metal |
| Protection Rating | IP67 |
| Dimensions (W × H × D) | 30.4 × 53 × 80 mm |
| Operating Temperature | −10°C to +55°C |
| Weight | 0.88 lb |
Information About KT5W-2P1126
The KT5W-2P1126 belongs to SICK's KT5 series of contrast sensors developed for registration-mark detection and precise positioning during packaging and printing processes. Its RGB light source operates at wavelengths of 470 nm, 525 nm, and 640 nm to support detection across different color combinations. Static two-point teach-in allows the sensor to learn contrasting reference values, while the PNP switching output communicates detected marks to compatible machine controllers. The compact zinc die-cast metal housing, five-pin M12 connector, and IP67 enclosure rating support installation in industrial production environments.
Key Features:
-
RGB LED Technology: Uses red, green, and blue illumination to detect contrast differences across various print and surface colors.
-
Sensing Distance: Operates at a nominal distance of 10 mm with a tolerance of ±3 mm.
-
Fast Switching Frequency: Supports switching frequencies up to 10 kHz for high-speed production processes.
-
Rapid Response: Provides a response time of 50 µs under specified operating conditions.
-
PNP Switching Output: Sends digital switching signals to compatible industrial controllers.
-

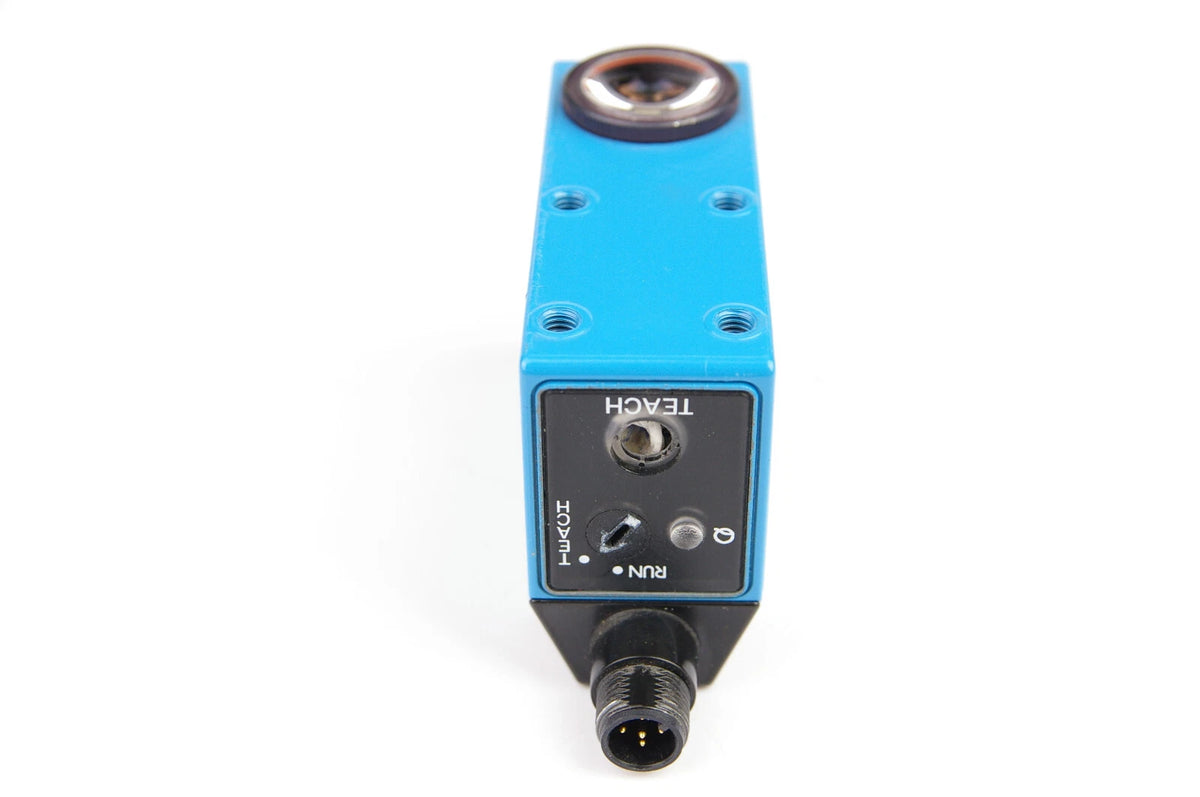

Static Two-Point Teach-In: Learns reference contrast values through a simple setup procedure.
-
Adjustable Light Emission: Supports light emission from the long or short side of the housing.
-
Industrial Protection: Features a zinc die-cast metal housing and IP67 protection against dust and temporary immersion.
The KT5W-2P1126 delivers the reliability and precision required for registration-mark detection, packaging control, and high-speed printing applications.
