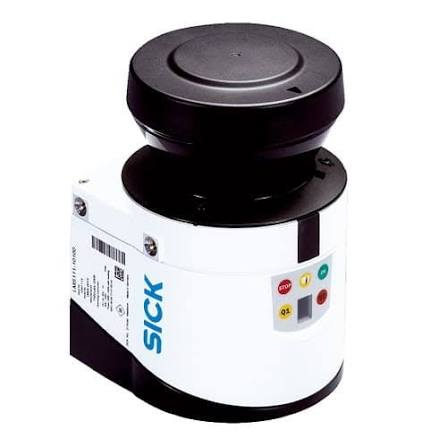

Sick LMS151-10100 Outdoor 2D LiDAR Sensor with Integrated Heating and Field Evaluation
- Regular price
- $2,699.00
- Sale price
- $2,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LMS151-10100
Description
The Sick LMS151-10100 is a 2D LiDAR sensor that measures object distances across a 270° horizontal scan field. Its 0.5–50 m working range, integrated heating, and dual-echo evaluation support outdoor object detection, profile measurement, and industrial field monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Sick |
| Category | Industrial Sensing |
| Part Number | LMS151-10100 |
| Subcategory | 2D LiDAR Sensors |
| Manufacturer Article Number | 1047607 |
| Product Family | LMS1xx |
| Working Range | 0.5–50 m |
| Range by Target Remission | 18 m at 10%; 50 m at 90% |
| Horizontal Field of View | 270° |
| Scanning Frequency | 25 / 50 Hz |
| Angular Resolution | 0.25° / 0.5° |
| Light Source / Laser Class | Infrared, 905 nm / Class 1 |
| Echo Evaluation / Fog Correction | Two evaluated echoes / supported |
| Integrated Application | Field evaluation; ten fields and ten simultaneous evaluation cases |
| Communication Interfaces | Ethernet TCP/IP, RS-232, and CAN for output extension |
| Digital I/O | Four digital inputs, two suitable for encoders; three outputs |
| Supply / Typical Power Consumption | 10.8–30 VDC; 8 W sensor consumption plus 35 W heating |
| Environmental Ratings | IP67; operating temperature −30°C to +50°C |
| Dimensions | 105 × 102 × 162 mm (L × W × H) |
| Weight | 1.1 kg (2.43 lb) |
Information About LMS151-10100
The LMS151-10100 is part of Sick’s LMS1xx sensor family and carries manufacturer article number 1047607. Its compact gray housing incorporates an optical scanning assembly and IP67 enclosure protection. Built-in field evaluation assesses configured detection areas, while Ethernet and RS-232 interfaces provide data to connected equipment. CAN supports output extension, and fog correction helps process measurements under challenging atmospheric conditions.
Key Features:
- Wide Scan Coverage: Provides a 270° horizontal field of view for monitoring broad detection areas.
- Extended Working Range: Measures from 0.5 to 50 m, depending on target remission.
- Dual-Echo Evaluation: Evaluates two returns to help distinguish objects along the measurement path.
- Integrated Heating: Supports operation in cold outdoor environments.
- Configurable Scanning: Offers 25 Hz and 50 Hz scanning with 0.25° or 0.5° angular resolution.
- Field Evaluation: Supports ten detection fields and ten simultaneous evaluation cases.
- Data Interfaces: Provides Ethernet and RS-232 communication for host integration.
- IP67 Enclosure: Protects the sensor housing against dust ingress and temporary immersion under specified conditions.
The LMS151-10100 delivers the reliability and precision required for non-contact distance measurement and configurable area monitoring in industrial installations.
