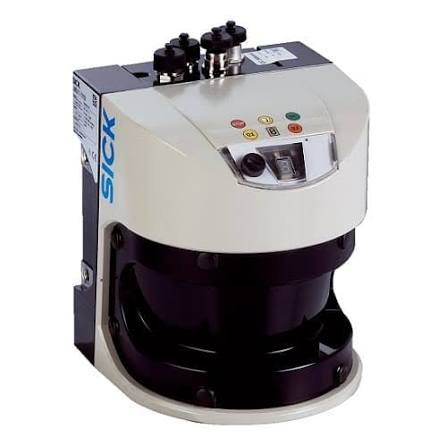

Sick LMS511-10100 PRO Outdoor 2D LiDAR Sensor with Multi-Echo Evaluation and Integrated Heating
- Regular price
- $6,999.00
- Sale price
- $6,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LMS511-10100
Description
The Sick LMS511-10100 is a 2D LiDAR sensor that measures object distances and profiles across a 190° horizontal scan field. It supports measurement ranges up to 80 m, with integrated heating and multi-echo evaluation for outdoor monitoring, object detection, and industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Sick |
| Category | Industrial Sensing |
| Part Number | LMS511-10100 |
| Subcategory | 2D LiDAR Sensors |
| Series / Variant | LMS5xx / PRO, standard resolution |
| Working Range | 0.2–80 m |
| Range at 10% Remission | 40 m |
| Horizontal Field of View | 190° |
| Scanning Frequencies | 25 / 35 / 50 / 75 / 100 Hz |
| Angular Resolution | 0.1667° / 0.25° / 0.333° / 0.5° / 0.667° / 1°; availability depends on scan configuration |
| Evaluated Echoes | Up to 5 |
| Light Source / Laser Class | Infrared, 905 nm / Class 1 |
| Integrated Applications | Field evaluation and measurement data output |
| Communication Interfaces | Ethernet, RS-232, RS-422, CAN, and Mini-USB service interface |
| Digital I/O | 4 inputs and 6 outputs |
| Electrical Connections | Four M12 round connectors |
| Supply / Power Consumption | 24 VDC ±20%; 22 W plus 55 W heating, typical |
| Environmental Ratings | IP65 / IP67; operating temperature −30°C to +50°C |
| Dimensions | 160 × 155 × 185 mm (L × W × H) |
| Weight | 3.7 kg (8.16 lb) |
Information About LMS511-10100
The LMS511-10100 is part of Sick’s LMS5xx family and corresponds to the PRO variant with standard resolution. Its housing incorporates four M12 connections for power, communication, and control signals. Built-in field evaluation allows configured detection areas to be assessed while measurement data is supplied to connected equipment. Ethernet and serial interfaces support integration with host systems, while CAN provides output extension and Mini-USB supports servicing.
Key Features:
- Extended Measurement Range: Covers distances from 0.2 to 80 m, with up to 40 m range at 10% remission.
- Wide Scan Field: Measures across a 190° horizontal angle for broad area coverage.
- Multi-Echo Evaluation: Evaluates up to five echoes to distinguish multiple returns along a measurement direction.
- Selectable Scan Frequency: Offers 25, 35, 50, 75, and 100 Hz settings to suit application requirements.
- Integrated Heating: Supports operation in cold environments down to −30°C.
- Field Evaluation: Processes configured detection fields and provides outputs for application control.
- Environmental Filtering: Includes echo, fog, and particle filters for measurement processing.
- Protected Housing: Provides IP65 and IP67 enclosure ratings for demanding installation environments.
The LMS511-10100 delivers the reliability and precision required for distance measurement, object profiling, and field monitoring in industrial environments.
