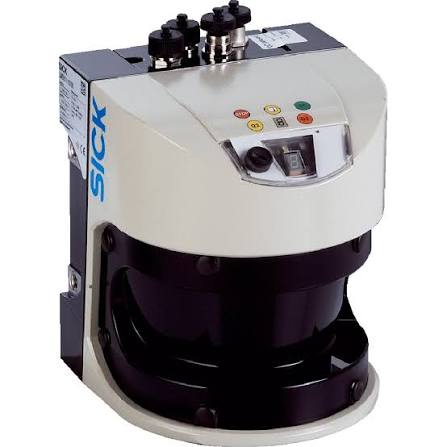

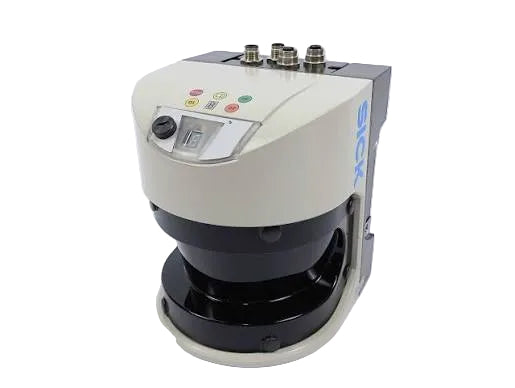

SICK LMS511-20100 PRO 2D LiDAR Laser Measurement Scanner
- Regular price
- $6,035.00
- Sale price
- $6,035.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LMS511-20100
Description
The SICK LMS511-20100 is a 2D LiDAR laser measurement scanner designed for outdoor distance measurement, object detection, and area monitoring. It uses infrared laser technology at 905 nm to scan a horizontal field of 190° and measure distances up to 80 m under suitable conditions. Integrated heating, multi-echo evaluation, and fog correction support operation in challenging outdoor environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | LMS511-20100 |
| Subcategory | 2D LiDAR Sensors |
| Product Family | LMS5xx |
| Device Type | 2D LiDAR laser measurement scanner |
| Variant | PRO |
| Application | Outdoor measurement and monitoring |
| Light Source | Infrared laser, 905 nm |
| Laser Class | Class 1 |
| Maximum Operating Range | 80 m |
| Range at 10% Remission | 26 m |
| Horizontal Scanning Angle | 190° |
| Scanning Frequency | 25, 35, 50, 75, 100 Hz |
| Angular Resolution | 0.167°–1°, depending on mode |
| Measurement Accuracy | ±12 mm |
| Response Time | ≥10 ms |
| Evaluated Echoes | Up to 5 |
| Supply Voltage | 24 V DC ±20% |
| Power Consumption | 22 W, plus 55 W for heating (typical) |
| Communication Interfaces | Ethernet, RS-232, RS-422, CAN, Mini-USB |
| Digital Inputs | 4 |
| Digital Outputs | 6 |
| Housing Material | Aluminum alloy AlSi12 |
| Enclosure Rating | IP65 / IP67 |
| Operating Temperature | −30 °C to +50 °C |
| Dimensions (L × W × H) | 160 × 155 × 185 mm |
| Manufacturer Part Number | 1047782 |
| Weight | 8.16 lb |
Information About LMS511-20100
The LMS511-20100 belongs to SICK’s LMS5xx family of 2D LiDAR sensors and corresponds to the LMS511-20100 PRO variant. It provides a maximum operating range of 80 m, with a range of up to 26 m for objects with 10% remission. The scanner supports Ethernet communication, RS-232, RS-422, and CAN interfaces for integration with industrial systems. Its aluminum housing, integrated heating, and IP65/IP67 protection support outdoor installation.
Key Features:
-
2D LiDAR Scanning: Measures distances and detects objects across a wide scanning area.
-
Long Measurement Range: Supports scanning distances up to 80 m under suitable conditions.
-
Wide Field of View: Provides a 190° horizontal scanning angle.
-
Infrared Laser: Uses 905 nm infrared light with Class 1 laser safety classification.
-
Multi-Echo Evaluation: Evaluates up to five echoes to help process complex measurement conditions.
-
Environmental Compensation: Includes fog correction and integrated heating.
-
Industrial Interfaces: Supports Ethernet, RS-232, RS-422, CAN, and Mini-USB.
-
Outdoor Protection: Provides IP65/IP67-rated protection depending on the applicable configuration.
The LMS511-20100 delivers the reliability and precision required for outdoor object detection, industrial measurement, perimeter monitoring, and automated volume measurement.
