SICK MICS3-ACAZ40PZ1 microScan3 Core PROFINET Safety Laser Scanner
- Regular price
- $5,199.00
- Sale price
- $5,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MICS3-ACAZ40PZ1
Description

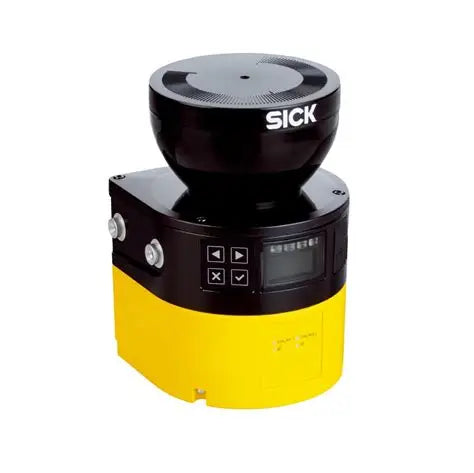

The SICK MICS3-ACAZ40PZ1 is a microScan3 Core safety laser scanner designed to monitor hazardous areas and protect personnel around industrial machinery and automated equipment. It provides a 4 m protective field range, a 40 m warning field range, and a 275° scanning angle, with PROFINET and PROFIsafe communication for integration into compatible industrial safety control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Safety Systems |
| Part Number | MICS3-ACAZ40PZ1 |
| Subcategory | Safety Laser Scanner |
| Series | microScan3 Core - PROFINET |
| Model Configuration | Sensor without system plug |
| Protective Field Range | 4 m |
| Warning Field Range | 40 m |
| Scanning Angle | 275° |
| Configurable Resolution | 30, 40, 50, 70, 150, 200 mm |
| Response Time | 95 ms |
| Communication Interface | PROFINET with PROFIsafe |
| Supply Voltage | 24 V DC (16.8–30 V DC) |
| Power Consumption | 7.2 W typical |
| Enclosure Rating | IP65 |
| Weight | 1.00 lb |
Information About MICS3-ACAZ40PZ1
The MICS3-ACAZ40PZ1 belongs to SICK’s microScan3 Core - PROFINET series and is intended for indoor industrial applications. This version is supplied as a sensor without a system plug, so the appropriate connection hardware must be selected separately for the installation. It supports configurable detection resolutions, multiple monitoring cases, and simultaneous monitoring of up to four fields. Configuration and diagnostics are performed using SICK Safety Designer software through supported USB or Ethernet interfaces.
Key Features:
-
Protective Field Range: Detects objects and personnel within a protective field of up to 4 m.
-
Warning Field Range: Supports warning-field monitoring up to 40 m.
-
Scanning Angle: Provides a 275° scanning field for broad-area monitoring.
-
Configurable Resolution: Supports 30, 40, 50, 70, 150, and 200 mm detection settings.
-
PROFINET Communication: Integrates with compatible industrial networks using PROFINET and PROFIsafe.
-
Multiple Field Monitoring: Supports up to four simultaneously monitored fields, with eight configurable fields and eight monitoring cases.
-
Safety Classification: Meets Type 3, SIL 2, Category 3, and Performance Level d safety classifications.
-
Industrial Housing: Features an aluminum housing with an IP65 enclosure rating.
The MICS3-ACAZ40PZ1 delivers the reliability and precision required for machine guarding, hazardous-area monitoring, and personnel protection in automated industrial environments.
