SICK MICS3-CBAZ90PZ1P01 microScan3 Pro Safety Laser Scanner
- Regular price
- $4,699.00
- Sale price
- $4,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MICS3-CBAZ90PZ1P01
Description

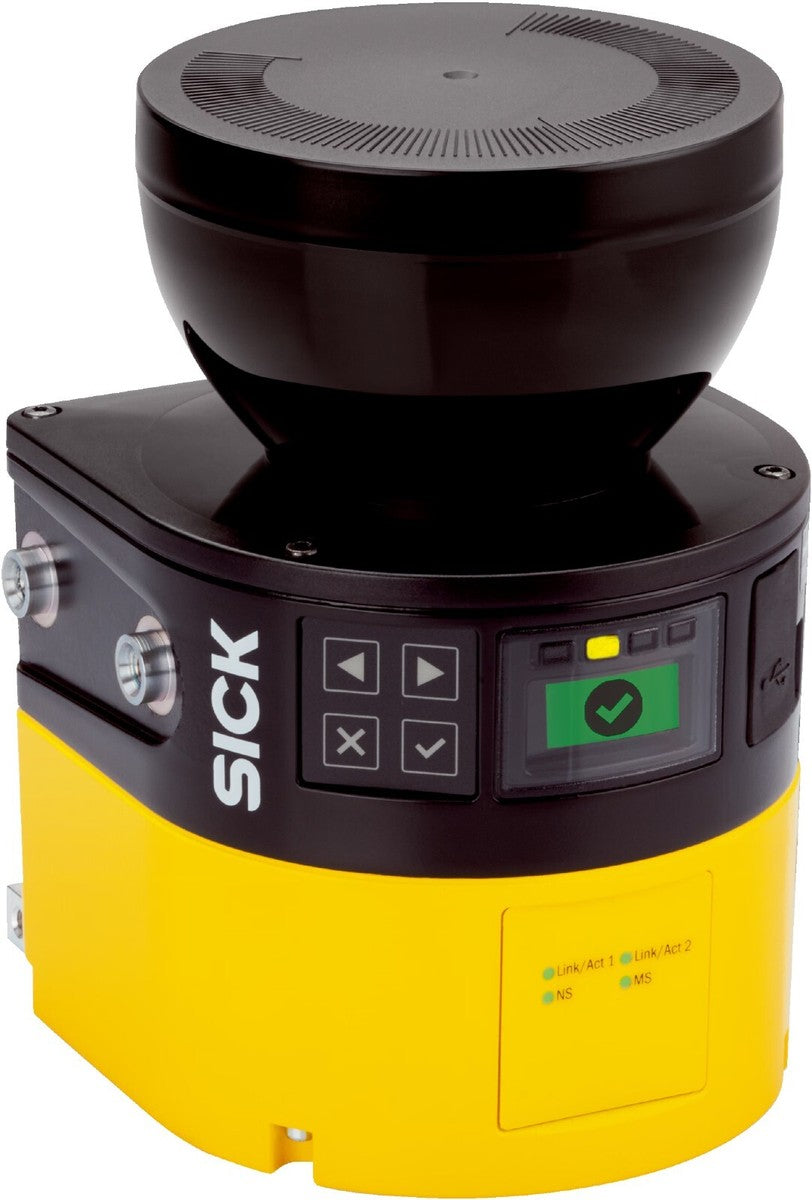

The SICK MICS3-CBAZ90PZ1P01 is a microScan3 Pro safety laser scanner designed to monitor hazardous areas around industrial machinery and automated mobile equipment. It provides a 9 m protective field range, a 275° scanning angle, and PROFINET/PROFIsafe communication for integration with industrial safety control systems. The scanner includes a system plug and supports configurable protective fields for flexible machine safeguarding.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | MICS3-CBAZ90PZ1P01 |
| Subcategory | Safety Laser Scanners |
| Product Family | microScan3 Pro |
| Device Type | Safety laser scanner |
| Communication Interface | PROFINET / PROFIsafe |
| Protective Field Range | 9 m |
| Collision Protection Range | 19 m on reference target |
| Scanning Angle | 275° |
| Configurable Fields | Up to 128 |
| Monitoring Cases | Up to 128 |
| Angular Resolution | 0.1° |
| Response Time | 115 ms |
| Supply Voltage | 24 V DC (16.8–30 V DC) |
| Typical Power Consumption | 7.2 W |
| Connection Type | M12 connectors; system plug included |
| Configuration Interface | USB 2.0, Mini-USB, Ethernet |
| Safety Rating | Category 3, PL d, SIL 2 |
| Enclosure Rating | IP65 |
| Housing Material | Aluminum |
| Dimensions (W × H × D) | 112 × 150.7 × 111.1 mm, without system plug |
| Operating Temperature | −10 °C to +50 °C |
| Manufacturer Article Number | 1094463 |
| Weight | 3.20 lb |
Information About MICS3-CBAZ90PZ1P01
The MICS3-CBAZ90PZ1P01 belongs to SICK’s microScan3 Pro safety laser scanner family. Its safeHDDM® scanning technology supports reliable detection under challenging conditions, including ambient light and dust. The device supports up to 128 configurable fields and 128 monitoring cases, with a protective field range of 9 m and a collision protection range of up to 19 m on a reference target. It is designed for Category 3, Performance Level d, and SIL 2 safety applications.
Key Features:
-
Safety Laser Scanning: Monitors hazardous areas around machinery and automated equipment.
-
Protective Field Range: Detects intrusions within a protective field of up to 9 m.
-
Wide Scanning Angle: Provides 275° area coverage.
-
PROFINET/PROFIsafe: Supports integration with compatible industrial safety networks.
-
Configurable Fields: Supports up to 128 configurable fields and 128 monitoring cases.
-
Safety Performance: Designed for Category 3, PL d, and SIL 2 applications.
-
Industrial Protection: Features an IP65-rated aluminum housing.
-
Configuration Interface: Supports configuration and diagnostics using SICK Safety Designer software.
The MICS3-CBAZ90PZ1P01 delivers the reliability and precision required for industrial machine guarding, automated guided vehicles, and hazardous-area protection.
