Sick NANS3-CAAZ30AN1 nanoScan3 Pro I/O Safety Laser Scanner without System Connector
- Regular price
- $2,199.00
- Sale price
- $2,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NANS3-CAAZ30AN1
Description
The Sick NANS3-CAAZ30AN1 is a nanoScan3 Pro I/O safety laser scanner for protective area monitoring in indoor machinery and mobile automation. It provides a 3 m protective field and 275° scanning coverage, with configurable fields that adapt to different operating conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Sick |
| Category | Machine Safety |
| Part Number | NANS3-CAAZ30AN1 |
| Subcategory | Safety Laser Scanners |
| Product Version / Variant | nanoScan3 Pro I/O / sensor without system connector |
| Application Environment | Indoor |
| Protective / Warning Field Range | 3 m / 10 m |
| Distance Measuring Range | 40 m |
| Scanning Angle / Angular Resolution | 275° / 0.17° |
| Configurable Detection Resolution | 20 / 30 / 40 / 50 / 60 / 70 / 150 / 200 mm |
| Field Configuration | 128 fields; 128 monitoring cases; up to eight fields monitored simultaneously |
| Response Time / Field Supplement | 70 ms listed response time / 65 mm protective field supplement |
| Safety Classification | Type 3, SIL 2, PL d, Category 3 |
| Safety Outputs | Two OSSD pairs; availability depends on I/O configuration |
| Supply / Typical Power Consumption | 24 VDC nominal, 16.8–30 VDC range / 3.9 W without output load |
| Configuration / Data Interfaces | Safety Designer; USB 2.0 micro-USB; Ethernet |
| Environmental Ratings | IP65; operating temperature −10°C to +50°C |
| Dimensions | 106.6 × 80 × 117.5 mm (W × H × D), including system connector |
| Weight | 0.67 kg (1.48 lb) |
Information About NANS3-CAAZ30AN1

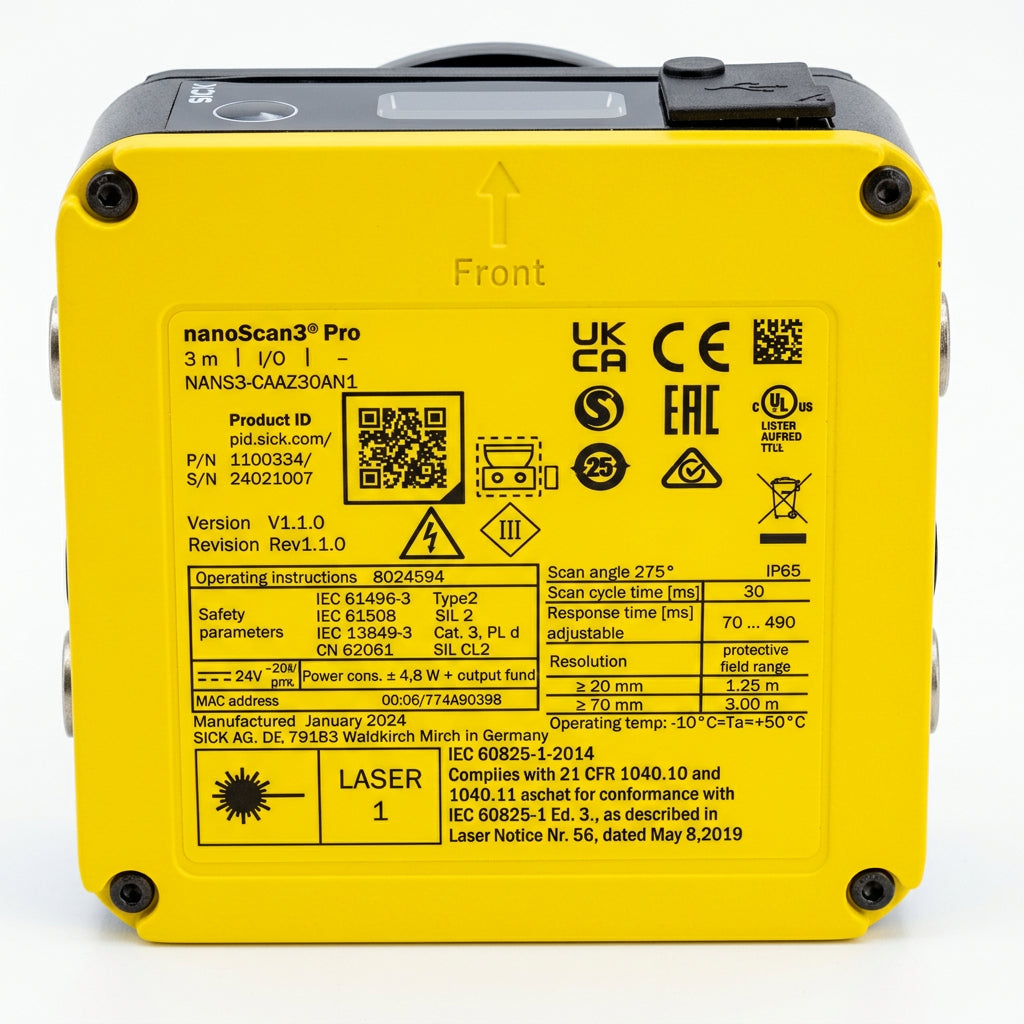

The NANS3-CAAZ30AN1 is identified by Sick article number 1100334 and is supplied as a sensor without the system connector. Its aluminum housing incorporates a polycarbonate optical cover and a color graphic display. Local inputs and outputs support integration with compatible safety controls, while Safety Designer software provides configuration and diagnostics. The nanoScan3 platform uses safeHDDM scanning technology for protective monitoring and measurement data acquisition.
Key Features:
- Protective Area Monitoring: Provides a protective field range of up to 3 m for configured indoor safety applications.
- Broad Scan Coverage: Monitors a 275° sector around the scanner.
- Configurable Field Library: Supports 128 fields and 128 monitoring cases.
- Simultaneous Evaluation: Monitors up to eight fields, subject to field type and available safety output configuration.
- Dual OSSD Pairs: Supports two safety output pairs, with availability dependent on I/O configuration.
- Adjustable Detection Resolution: Offers settings from 20 to 200 mm for application-specific object detection.
- Configuration and Diagnostics: Uses Safety Designer software with USB and Ethernet interfaces.
- Local Status Display: Shows operating and diagnostic information through a color display and LEDs.
The NANS3-CAAZ30AN1 delivers the reliability and precision required for configured protective field monitoring in indoor industrial safety systems.
