SICK S30A-6011CA S3000 Advanced Safety Laser Scanner
- Regular price
- $3,899.00
- Sale price
- $3,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: S30A-6011CA
Description

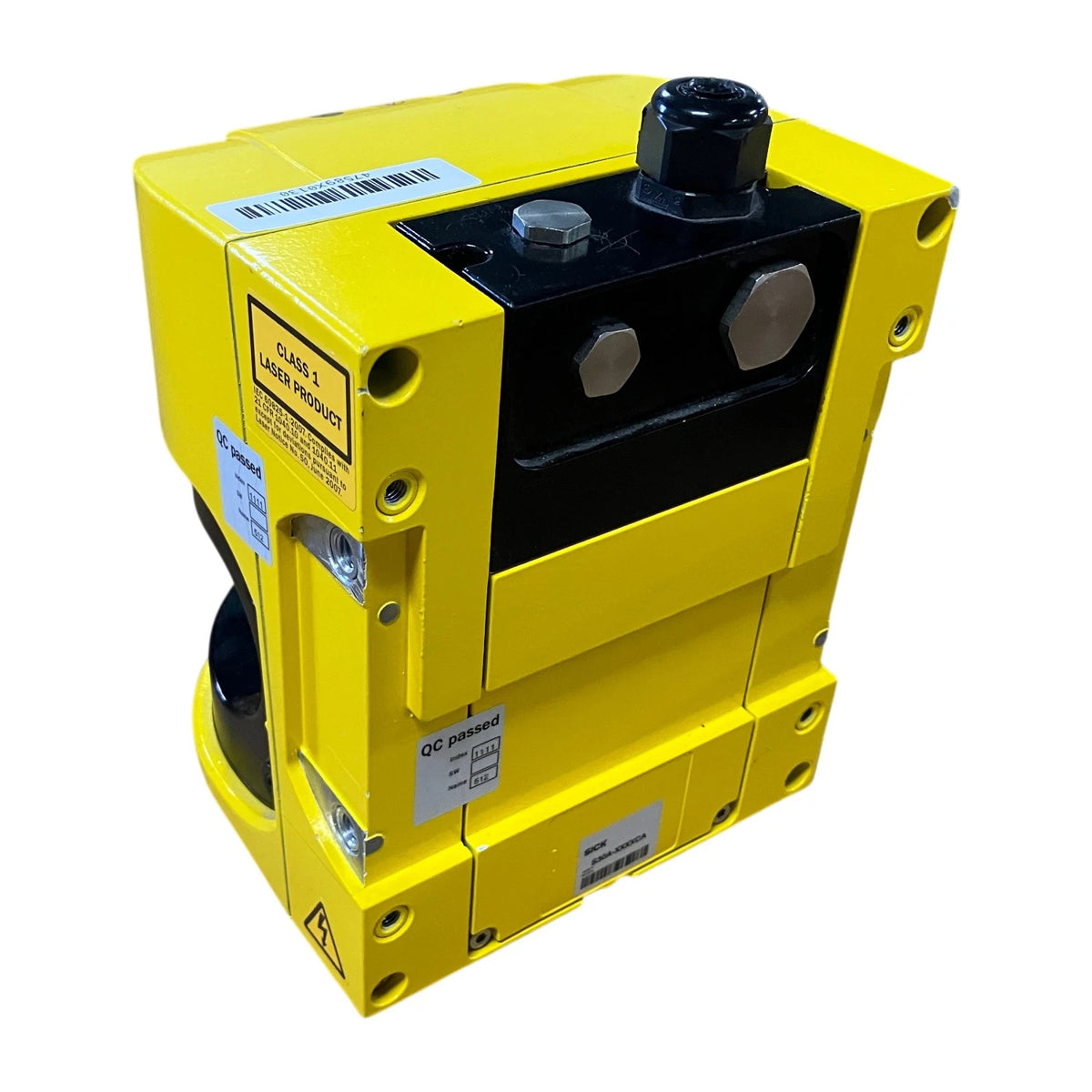

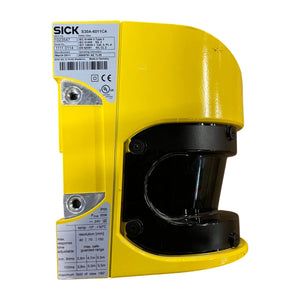

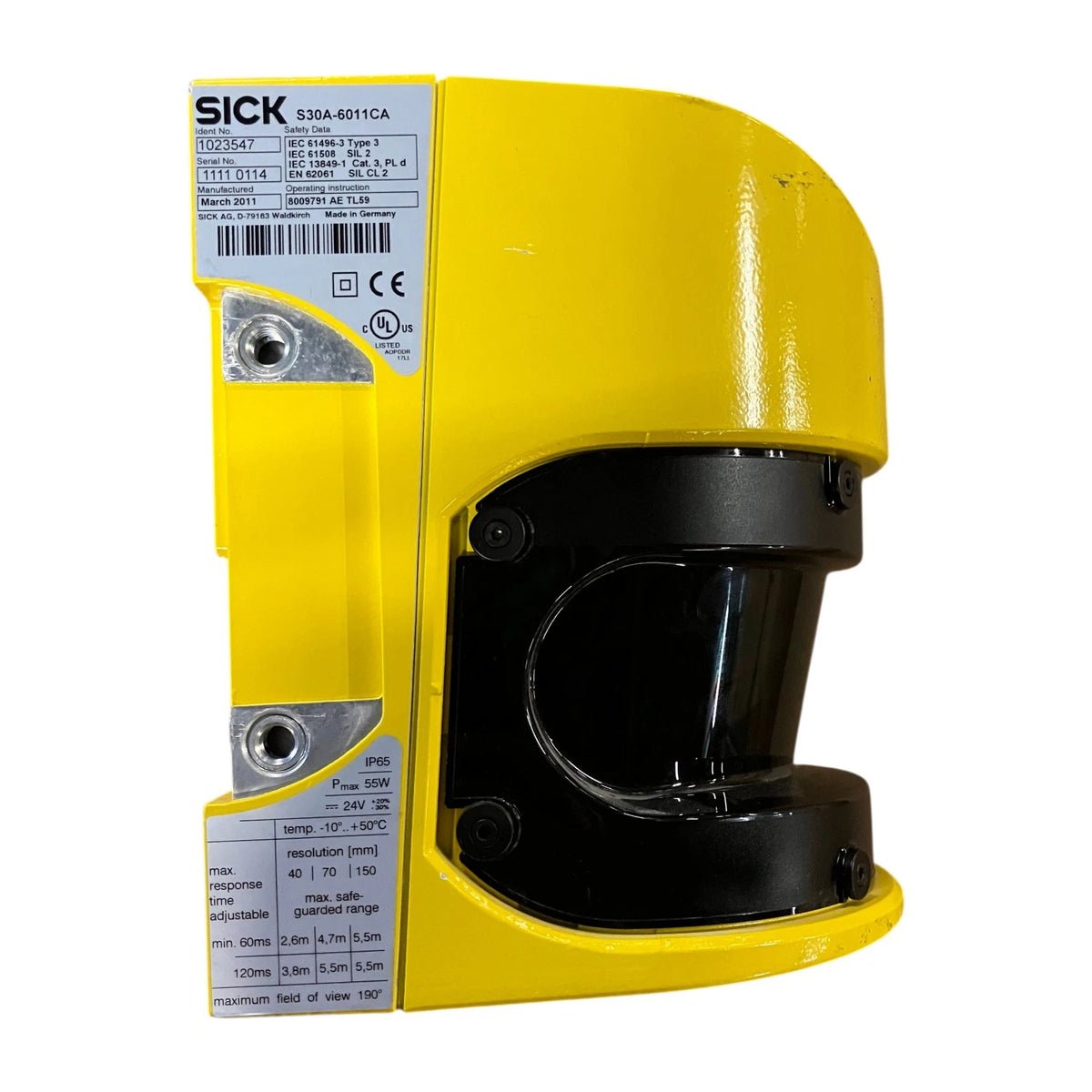

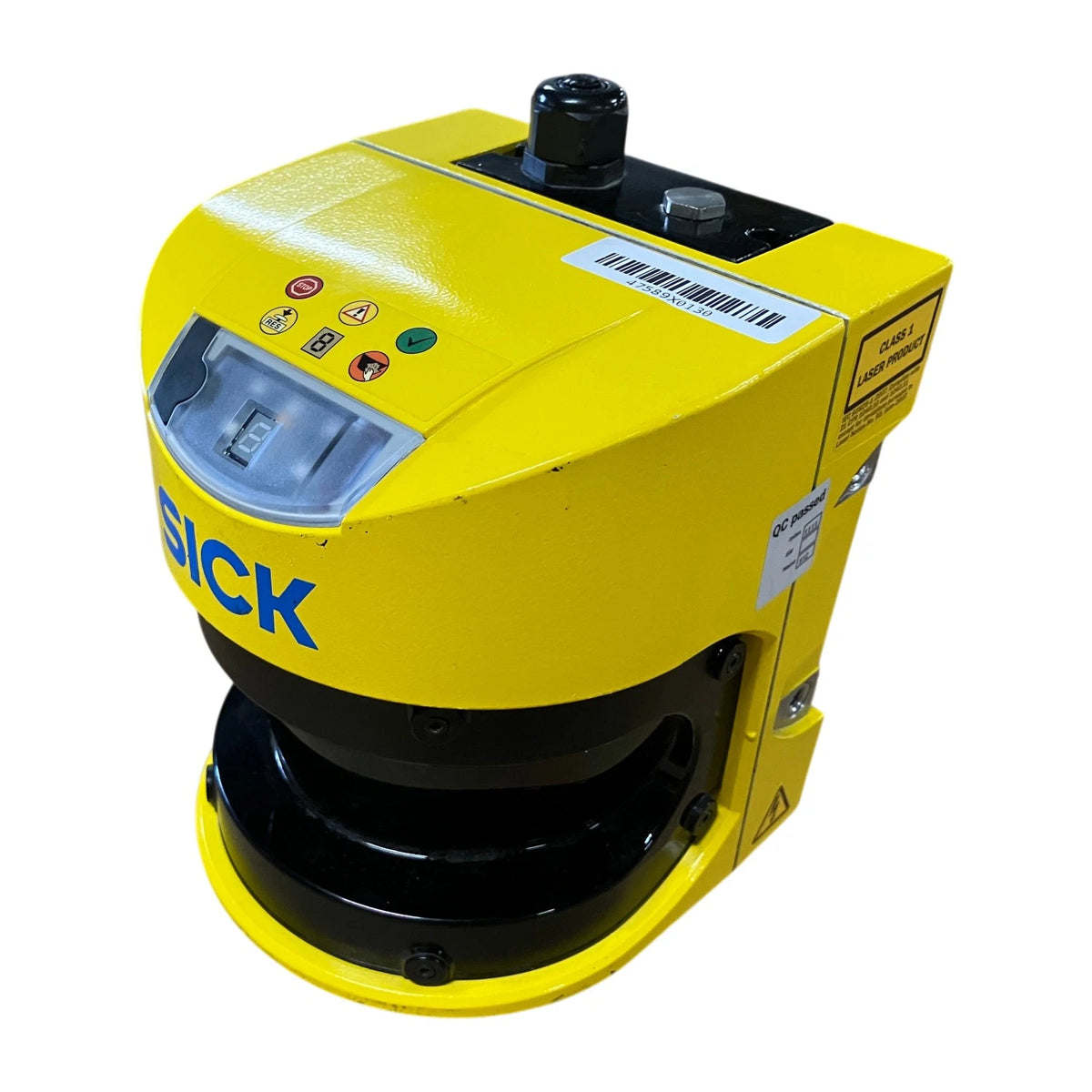

The SICK S30A-6011CA is an S3000 Advanced safety laser scanner designed to protect personnel around automated machinery and industrial equipment. It monitors configurable protective and warning fields across a 190-degree scanning angle, detecting objects and triggering safety outputs when defined field limits are breached.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Safety Equipment |
| Part Number | S30A-6011CA |
| Subcategory | Safety Laser Scanners |
| Product Series | S3000 Advanced |
| Manufacturer Article Number | 1023547 |
| Device Type | Safety laser scanner |
| Application | Indoor machine and personnel protection |
| Protective Field Range | Up to 5.5 m |
| Warning Field Range | Up to 49 m |
| Scanning Angle | 190° |
| Configurable Resolution | 30, 40, 50, 70, 150 mm |
| Response Time | From 60 ms, depending on configuration |
| Safety Outputs | 2 × OSSD, 500 mA each |
| Diagnostic Outputs | 3 × 100 mA |
| Supply Voltage | 24 VDC |
| Operating Voltage Range | 16.8–28.8 VDC |
| Safety Integrity Level | SIL 2 |
| Performance Level | PL d |
| Safety Category | Category 3 |
| Communication Interface | RS-422; EFI device communication |
| Housing Material | Die-cast aluminum |
| Front Screen Material | Polycarbonate |
| Protection Rating | IP65 |
| Dimensions (W × H × D) | 155 × 185 × 160 mm |
| Operating Temperature | −10°C to +50°C |
| Weight | 7.28 lb |
Information About S30A-6011CA
The S30A-6011CA belongs to SICK's S3000 Advanced family of safety laser scanners for industrial machine guarding and automated material handling applications. This version is supplied as a sensor without a system plug and supports indoor installation, with a protective field range of up to 5.5 meters and a warning field range of up to 49 meters under specified conditions. Its configurable field sets, monitoring cases, restart interlock, and external device monitoring support flexible safety-system integration. The scanner is rated for Category 3, Performance Level d, and SIL 2 applications when correctly installed and configured according to applicable safety requirements.
Key Features:
-
Safety Laser Scanning: Monitors defined protective zones around industrial machinery and automated equipment.
-
Protective Field Range: Provides a configurable protective field of up to 5.5 m.
-
Warning Field Range: Supports warning fields up to 49 m, depending on target reflectivity and conditions.
-
Wide Scanning Angle: Covers a 190-degree scanning field for area monitoring.
-
Configurable Resolution: Supports object detection resolutions of 30, 40, 50, 70, and 150 mm.
-
Dual Safety Outputs: Includes two OSSD safety outputs rated at 500 mA each.
-
Safety Certifications: Designed for Category 3, PL d, and SIL 2 applications.
-
Industrial Construction: Features a die-cast aluminum housing, polycarbonate front screen, and IP65 protection.
The S30A-6011CA delivers the reliability and precision required for personnel protection, machine guarding, and industrial automation safety applications.
