SICK S30A-6011DA S3000 Professional Safety Laser Scanner
- Regular price
- $4,799.00
- Sale price
- $4,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: S30A-6011DA
Description

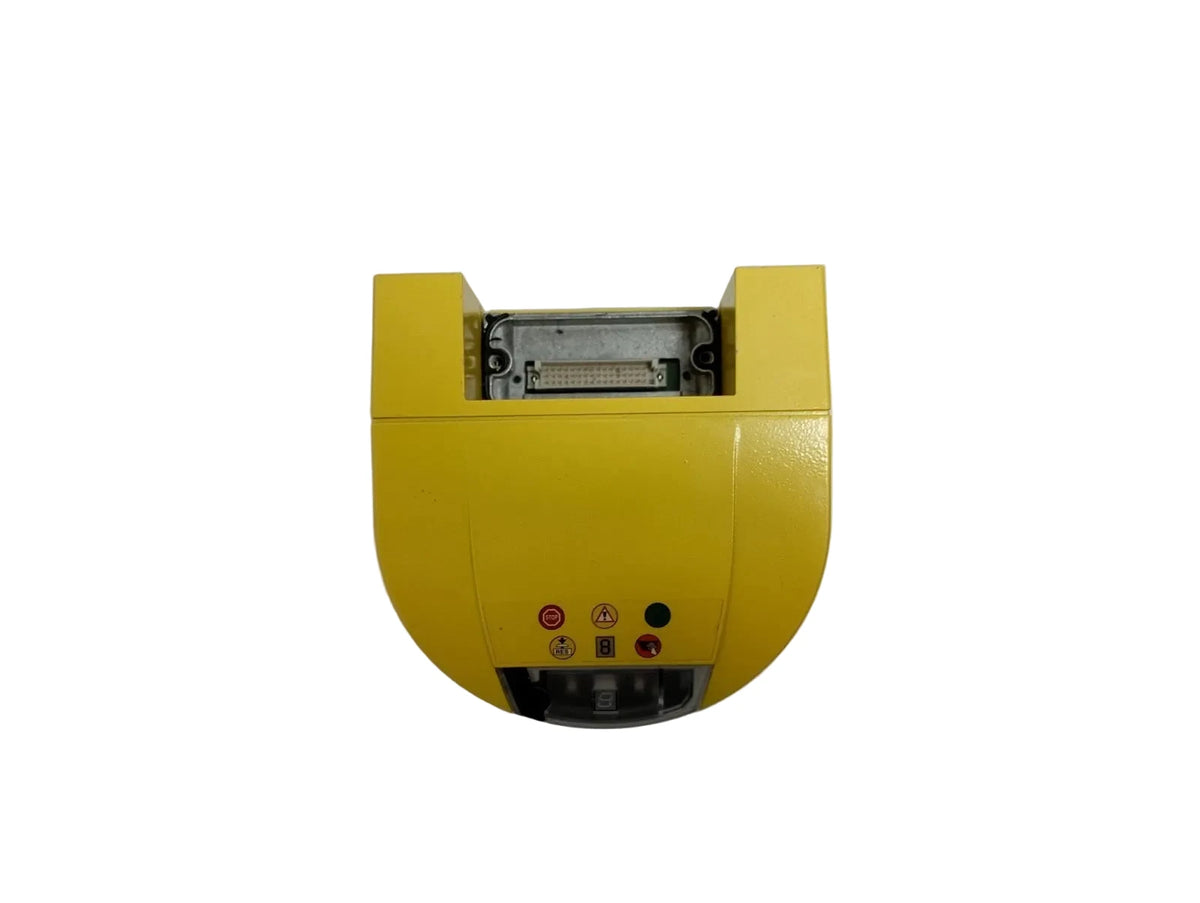

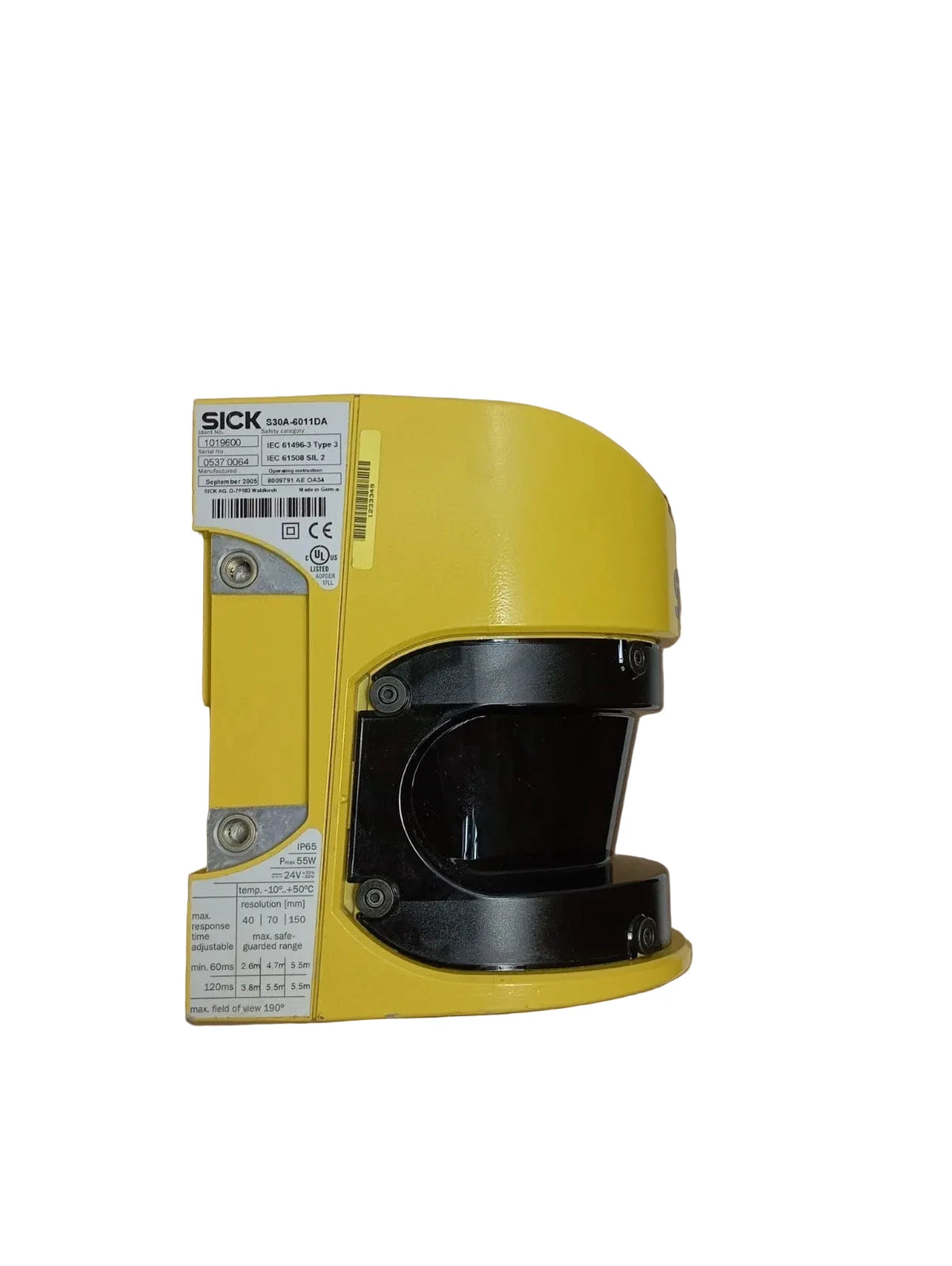

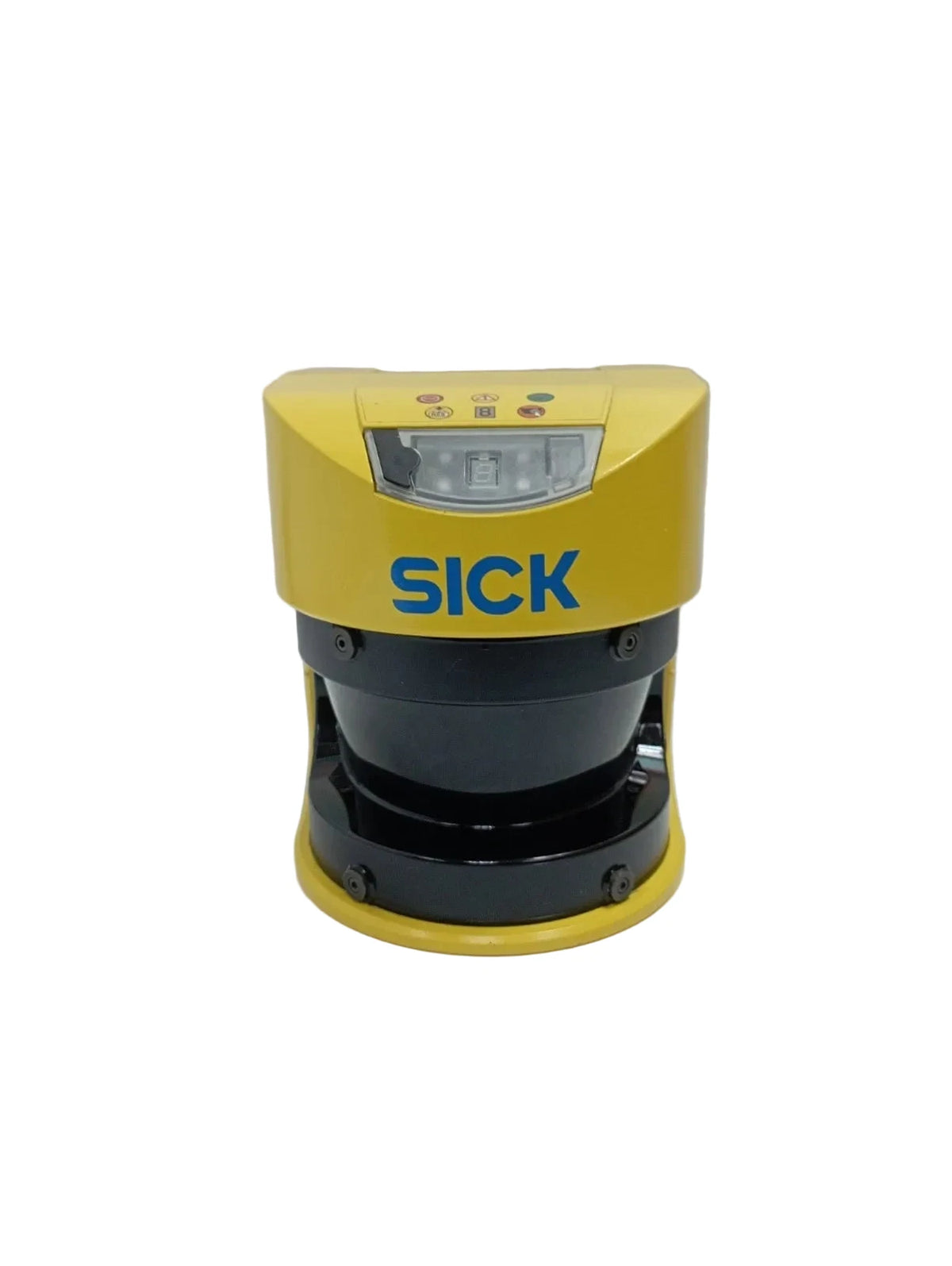

The SICK S30A-6011DA is a safety laser scanner from the S3000 Professional series, designed to monitor hazardous areas around industrial machinery and automated equipment. It provides a 190° scanning angle, a protective field range of up to 5.5 m, and configurable object resolution for machine safeguarding. The scanner operates on 24 V DC and supports safety-related outputs for connection to compatible machine control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | S30A-6011DA |
| Subcategory | Safety Laser Scanners |
| Product Series | S3000 Professional |
| Device Type | Safety laser scanner |
| Application | Indoor machine safeguarding |
| Protective Field Range | 5.5 m |
| Warning Field Range | 49 m (20 m at 20% reflectivity) |
| Scanning Angle | 190° |
| Configurable Object Resolution | 30, 40, 50, 70, 150 mm |
| Angular Resolution | 0.25° or 0.5°, depending on configuration |
| Response Time | 60 ms minimum, depending on configuration |
| Laser Wavelength | 905 nm |
| Laser Type | Pulsed laser diode |
| Supply Voltage | 24 V DC (16.8–28.8 V DC) |
| Safety Outputs | 2 × OSSD, 500 mA each |
| Diagnostic Outputs | 3 × 100 mA |
| Monitoring Cases | Up to 16 |
| Number of Fields | Up to 24 |
| Safety Rating | Type 3, SIL 2, Category 3, PL d |
| Housing Material | Die-cast aluminum |
| Front Screen Material | Polycarbonate |
| Enclosure Rating | IP65 |
| Operating Temperature | −10 °C to +50 °C |
| Dimensions (W × H × D) | 155 × 185 × 160 mm |
| Manufacturer Article Number | 1019600 |
| Weight | 7.28 lb |
Information About S30A-6011DA
The S30A-6011DA is part of SICK’s S3000 Professional family of safety laser scanners. It uses pulsed laser light at 905 nm to detect objects within configured protective and warning fields. The scanner supports up to 24 fields, 16 monitoring cases, and multiple safety functions, including restart interlock and external device monitoring. Its safety performance meets Type 3, SIL 2, Category 3, and Performance Level d requirements.
Key Features:
-
Safety Laser Scanning: Monitors hazardous areas around industrial machinery.
-
Protective Field Range: Detects intrusions within a protective field of up to 5.5 m.
-
Wide Scanning Angle: Provides 190° area coverage.
-
Configurable Resolution: Supports object resolutions of 30, 40, 50, 70, and 150 mm.
-
Safety Outputs: Includes two OSSD safety outputs rated at 500 mA each.
-
Monitoring Functions: Supports restart interlock, external device monitoring, and multiple sampling.
-
Industrial Construction: Features a die-cast aluminum housing and polycarbonate front screen.
-
Safety Certification: Meets Type 3, SIL 2, Category 3, and PL d requirements.
The S30A-6011DA delivers the reliability and precision required for industrial machine guarding, hazardous-area monitoring, and automated equipment safety.
