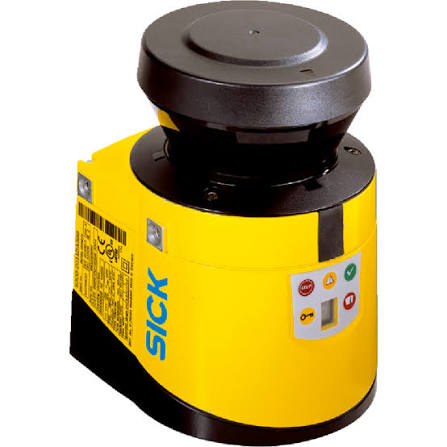

SICK S30A-7011BA S3000 Standard Safety Laser Scanner, 7 m Protective Field, 190° Scan
- Regular price
- $4,099.00
- Sale price
- $4,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: S30A-7011BA
Description
The SICK S30A-7011BA is a safety laser scanner designed to protect personnel and hazardous areas around automated machinery, industrial work cells, and material-handling systems. Part of the S3000 Standard series, it provides a configurable protective field with a range of up to 7 m and a 190° scanning angle, detecting intrusions and issuing safety-related signals to compatible machine-control equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation |
| Part Number | S30A-7011BA |
| Subcategory | Safety Laser Scanners |
| Manufacturer Part Number | 1023890 |
| Product Type | Safety laser scanner |
| Series | S3000 Standard |
| Model Configuration | Sensor without system plug |
| Application | Indoor machine and hazardous-area protection |
| Protective Field Range | 7 m |
| Warning Field Range | 49 m; 20 m at 20% reflectivity |
| Distance Measuring Range | 49 m |
| Scanning Angle | 190° |
| Configurable Resolution | 30, 40, 50, 70, or 150 mm |
| Angular Resolution | 0.5° or 0.25°, depending on range and resolution |
| Response Time | 60 ms, depending on basic response time and multiple sampling |
| Number of Fields | 4 |
| Safety Classification | Type 3, IEC 61496 |
| Supply Voltage | 24 VDC nominal; 16.8–28.8 VDC |
| Laser Class | Class 1 |
| Enclosure Rating | IP65 |
| Operating Temperature | −10 to +50 °C |
| Storage Temperature | −25 to +50 °C |
| Weight | 3.3 kg |
Information About S30A-7011BA
The S30A-7011BA uses a pulsed 905 nm laser diode to scan its surroundings and monitor configured protective and warning fields. It supports Type 3 safety classification, SIL 2, and Performance Level PL d when correctly integrated into a suitable safety system. The scanner includes two safety outputs (OSSDs), three configurable diagnostic outputs, and an RS-422 interface for measured data, with SICK EFI communication available for compatible devices. This model is supplied without a system plug, so the appropriate system plug, cabling, configuration, and safety validation must be selected for the intended installation.
Key Features:
-
7 m Protective Field: Monitors a configurable safety zone around machinery and hazardous areas.
-
190° Scanning Angle: Covers a broad scanning area for perimeter and access protection.
-
Configurable Detection Resolution: Supports 30, 40, 50, 70, and 150 mm object-resolution settings.
-
Safety-Rated Outputs: Includes two OSSD safety outputs rated at up to 500 mA each.
-
Diagnostic Outputs: Provides three configurable outputs for warning-field status, contamination, reset requirements, or other diagnostic signals.
-
Integrated Configuration Memory: Supports faster replacement when used with a compatible system plug containing stored configuration.
-
Multiple Sampling: Allows configurable multiple sampling from 2 to 16 to help reduce nuisance stops.
-
Industrial Protection: Features an IP65 enclosure, die-cast aluminum housing, and a scratch-resistant polycarbonate front screen.
The S30A-7011BA delivers the reliability and precision required for personnel protection, hazardous-area monitoring, and safety integration in automated industrial systems.
