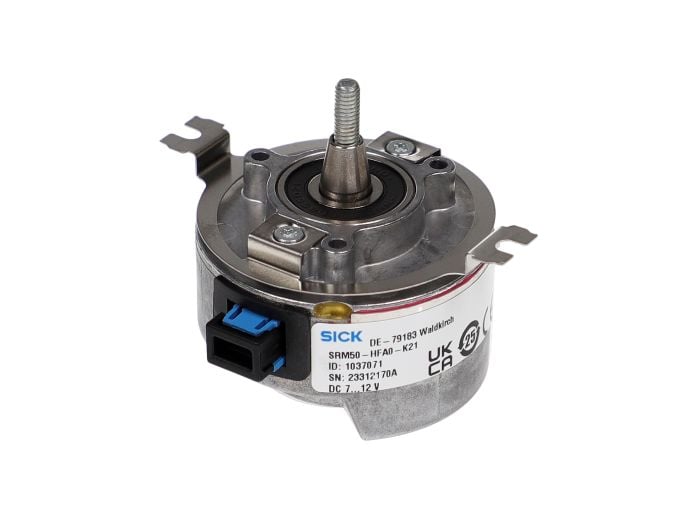

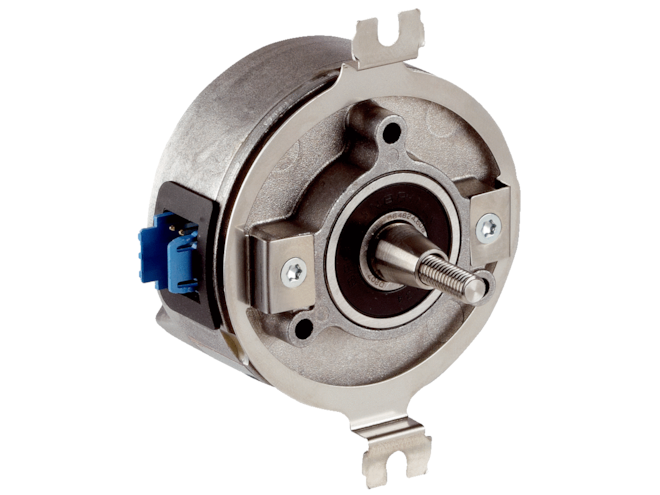

Sick SRM50-HFA0-K21 Absolute Multiturn Motor Feedback Encoder with HIPERFACE Interface
- Regular price
- $617.00
- Sale price
- $617.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SRM50-HFA0-K21
Description
The Sick SRM50-HFA0-K21 is an absolute multiturn motor feedback encoder that provides shaft position information for compatible servo drive systems. It combines optical sensing, HIPERFACE® communication, and 1,024 sine/cosine periods per revolution to support motor position and speed regulation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Sick |
| Category | Motion Control |
| Part Number | SRM50-HFA0-K21 |
| Subcategory | Motor Feedback Encoders |
| Manufacturer Article Number | 1037071 |
| Product Family | SRS/SRM50 |
| Encoder Type | Absolute multiturn; for integration |
| Measurement Technology | Optical |
| Communication Interface | HIPERFACE® |
| Sine/Cosine Periods per Revolution | 1,024 |
| Absolute Multiturn Range | 4,096 revolutions |
| Total Absolute Position Steps | 134,217,728 |
| System Accuracy | ±52 arcseconds |
| Absolute Position Operating Speed | ≤6,000 rpm |
| Supply Voltage | 7–12 VDC; recommended 8 VDC |
| Connection Type | Male connector, 8-pin, radial |
| Mechanical Interface | Tapered shaft with spring mounting plate |
| Available Memory | 128 bytes |
| Operating Temperature | −30°C to +115°C |
| Weight | 0.20 kg (0.44 lb) |
Information About SRM50-HFA0-K21
The SRM50-HFA0-K21 is part of the Sick SRS/SRM50 motor feedback family and carries manufacturer part number 1037071. Its integration design uses a tapered shaft and spring mounting plate for installation within the motor assembly. A radial 8-pin male connector connects the power supply, analog feedback signals, and serial communication channel. This version provides standard motor feedback and is not designated as a safety component.
Key Features:
- Absolute Multiturn Position: Identifies shaft position across 4,096 revolutions.
- Sine/Cosine Feedback: Generates 1,024 signal periods per revolution for evaluation by compatible drive electronics.
- HIPERFACE Interface: Combines analog process signals with serial position and parameter communication.
- Optical Measurement: Uses optical sensing technology to determine rotational position.
- Integrated Mounting: Incorporates a tapered shaft and spring mounting plate for motor installation.
- Radial Connector: Provides an 8-pin male connection for power and feedback signals.
- Extended Temperature Range: Supports operation from −30°C to +115°C.
- Available Data Memory: Provides 128 bytes of accessible memory for application data.
The SRM50-HFA0-K21 delivers the reliability and precision required for motor position feedback and servo regulation in industrial motion systems.
