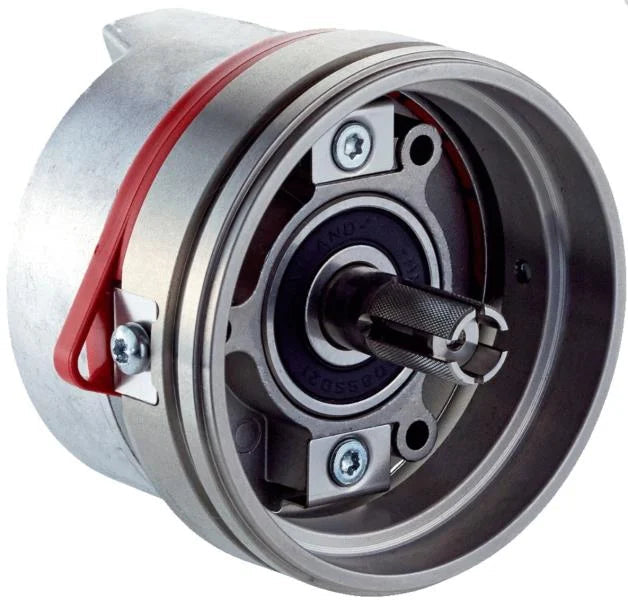

SICK SRM50-HZZ0-S21 Rotary Motor Feedback Encoder
- Regular price
- $2,699.00
- Sale price
- $2,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SRM50-HZZ0-S21
Description
The SICK SRM50-HZZ0-S21 is a rotary motor feedback encoder designed to provide precise position and speed feedback for industrial servo drive systems. It uses HIPERFACE® communication and sine/cosine signals to support accurate motion monitoring and motor control. The encoder features an expanding shaft, an 8-pin radial connector, and a compact design for integration into compatible motor assemblies.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | SRM50-HZZ0-S21 |
| Subcategory | Rotary Encoders |
| Product Series | SRS/SRM50 |
| Device Type | Rotary motor feedback encoder |
| Communication Interface | HIPERFACE® |
| Signal Type | Sine/cosine |
| Sine/Cosine Periods per Revolution | 1,024 |
| Absolute Measurement | Single-turn |
| Total Resolution | 32,768 steps |
| Supply Voltage | 7–12 V DC |
| Recommended Supply Voltage | 8 V DC |
| Current Consumption | 80 mA |
| Connection Type | 8-pin radial male connector |
| Shaft Design | Expanding shaft with slot |
| Flange / Stator Coupling | Spring mounting plate |
| Maximum Operating Speed | 12,000 rpm |
| Operating Temperature | −30 °C to +115 °C |
| Enclosure Rating | IP40 with mating connector inserted |
| Manufacturer Article Number | 1065735 |
| Weight | 0.44 lb |
Information About SRM50-HZZ0-S21
The SRM50-HZZ0-S21 belongs to SICK’s SRS/SRM50 motor feedback system family. It provides 1,024 sine/cosine periods per revolution and single-turn absolute position information with 32,768 total steps. The encoder operates from a 7–12 V DC supply and has a recommended supply voltage of 8 V DC. Its spring mounting plate and expanding shaft with a slot support mechanical integration into compatible drive systems.
Key Features:
-
Rotary Feedback: Provides position and motion feedback for motor control systems.
-
HIPERFACE® Interface: Supports communication with compatible drive controllers.
-
Sine/Cosine Signals: Generates 1,024 signal periods per revolution.
-
Absolute Position: Provides single-turn absolute position information.
-
Resolution: Offers 32,768 total steps per revolution.
-
Electrical Supply: Operates with a 7–12 V DC supply.
-
Mechanical Design: Features an expanding shaft with a slot and spring mounting plate.
-
Industrial Operation: Supports operating temperatures from −30 °C to +115 °C.
The SRM50-HZZ0-S21 delivers the reliability and precision required for servo motor feedback, industrial motion control, and automated positioning applications.
