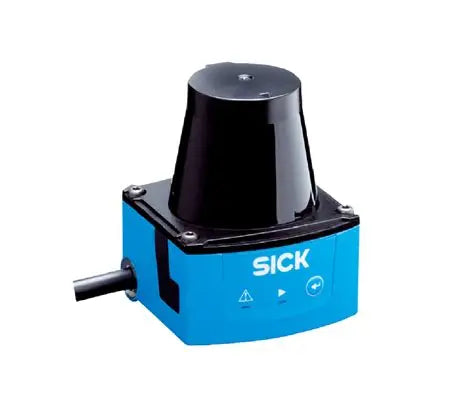

SICK TIM320-1131000 2D LiDAR Sensor for Indoor Object Detection and Positioning
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TIM320-1131000
Description
The SICK TIM320-1131000 is a compact 2D LiDAR sensor designed for indoor object detection, distance measurement, and positioning in industrial automation systems. Using SICK’s HDDM+ measurement technology, it scans a 270° field of view with a working range of 0.05 to 4 meters, making it suitable for monitoring objects, detecting obstacles, and evaluating configurable detection fields.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors & Switches |
| Part Number | TIM320-1131000 |
| Subcategory | 2D LiDAR Sensors |
| Manufacturer Order Number | 1062219 |
| Product Family | TiM |
| Measurement Principle | HDDM+ |
| Application | Indoor |
| Light Source | Infrared, 850 nm |
| Laser Class | Class 1 |
| Horizontal Scanning Angle | 270° |
| Scanning Frequency | 15 Hz |
| Working Range | 0.05–4 m |
| Scanning Range at 10% Remission | 2 m |
| Response Time | Typically 67 ms per scan |
| Supply Voltage | 9–28 V DC |
| Digital Inputs | 4 |
| Digital Outputs | 3 PNP outputs, plus 1 device-ready output |
| Communication / Service Interface | Micro USB |
| Electrical Connection | 12-pin M12 male connector, 0.8 m cable |
| Enclosure Rating | IP65 |
| Weight | 150 g |
Information About TIM320-1131000
The TIM320-1131000 belongs to SICK’s TiM family of compact 2D LiDAR sensors and has manufacturer order number 1062219. It uses infrared light at 850 nm and a Class 1 laser source for non-contact distance measurement. Its integrated field evaluation supports 16 sets of three fields, allowing detection zones to be configured for different monitoring tasks. The sensor connects through a 12-pin M12 male connector with a 0.8 m cable and includes a Micro USB service interface for parameterization.
Key Features:
-
2D LiDAR Measurement: Uses HDDM+ technology for non-contact distance sensing and object detection.
-
270° Scanning Angle: Covers a wide horizontal area for indoor monitoring and positioning.
-
4 m Working Range: Measures within a specified range of 0.05 to 4 meters.
-
15 Hz Scanning Frequency: Performs 15 scans per second for regular environmental updates.
-
1° Angular Resolution: Provides angular sampling for detecting objects across the scanning field.
-
Configurable Detection Fields: Supports 16 field sets, with three fields per set.
-
Class 1 Infrared Laser: Uses an 850 nm infrared source classified according to applicable laser safety standards.
-
Compact, Protected Housing: Measures 60 × 60 × 79 mm and provides IP65 protection.
The TIM320-1131000 delivers compact, wide-angle sensing for indoor automation, obstacle detection, object monitoring, and industrial positioning applications.
