SICK UFN3-70B413 Ultrasonic Fork Sensor for Label Detection
- Regular price
- $435.00
- Sale price
- $435.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UFN3-70B413
Description

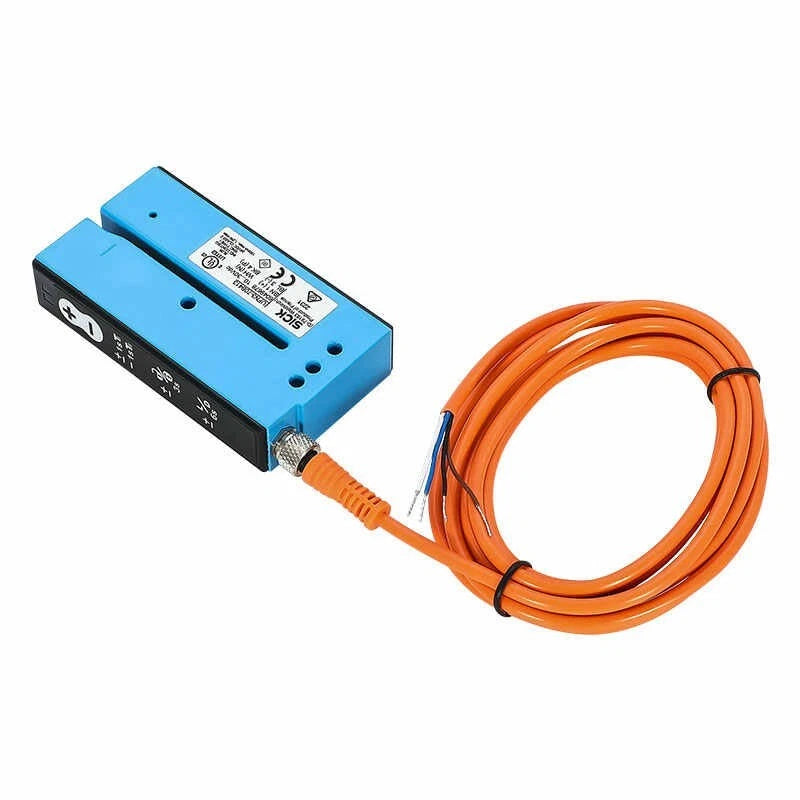

The SICK UFN3-70B413 is an ultrasonic fork sensor designed for detecting labels and materials in industrial packaging and automation systems. Its ultrasonic detection principle enables reliable identification of transparent, opaque, and printed labels regardless of their color or surface appearance. The sensor features a 3 mm fork width, PNP/NPN switching outputs, and a compact aluminum housing with IP65 protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | UFN3-70B413 |
| Subcategory | Fork Sensors |
| Product Series | UF |
| Sensor Type | Ultrasonic fork sensor |
| Detection Principle | Ultrasonic |
| Fork Width | 3 mm |
| Fork Depth | 69 mm |
| Minimum Detectable Label Gap | 2 mm |
| Supply Voltage | 10–30 V DC |
| Current Consumption | 40 mA |
| Switching Output | PNP / NPN |
| Switching Mode | Light/dark switching |
| Switching Frequency | 1.5 kHz |
| Response Time | 250 μs |
| Maximum Output Current | 100 mA |
| Initialization Time | 100 ms |
| Connection Type | 4-pin M8 male connector |
| Housing Material | Aluminum |
| Enclosure Rating | IP65 |
| Operating Temperature | +5 °C to +55 °C |
| Dimensions (W × H × D) | 18 × 47.5 × 92.5 mm |
| Manufacturer Article Number | 6049678 |
| Weight | 0.21 lb |
Information About UFN3-70B413
The UFN3-70B413 belongs to SICK’s UF series of ultrasonic fork sensors. It detects labels by measuring how the material affects the ultrasonic signal passing through the fork. The sensor supports 10–30 V DC operation, adjustable light/dark switching, and teach-in configuration using onboard buttons. Its 4-pin M8 connector and compact construction allow integration into automated label inspection and packaging equipment.
Key Features:
-
Ultrasonic Detection: Detects labels and materials independently of printed design or transparency.
-
Fork Design: Provides a 3 mm fork width and 69 mm fork depth.
-
Minimum Detectable Label Gap: Detects label gaps or label sizes of approximately 2 mm.
-
Dual Switching Outputs: Supports both PNP and NPN output configurations.
-
Adjustable Switching: Allows light/dark switching and sensitivity adjustment.
-
Fast Response: Provides a response time of 250 μs.
-
Electrical Supply: Operates with a 10–30 V DC supply.
-
Industrial Protection: Features an aluminum housing and IP65 enclosure rating.
The UFN3-70B413 delivers the reliability and precision required for label detection, packaging lines, and automated material inspection applications.
