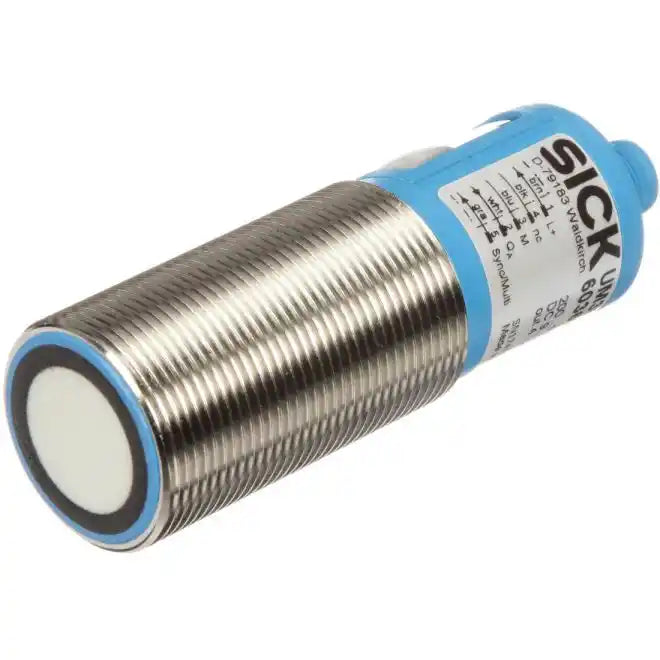

Sick UM30-213113 Ultrasonic Distance Sensor with Configurable Analog Current or Voltage Output
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UM30-213113
Description
The Sick UM30-213113 is an ultrasonic distance sensor that provides an analog signal proportional to the distance of a detected object. Its 200–1,300 mm operating range, temperature compensation, and configurable output scaling support non-contact position and level monitoring in industrial equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Sick |
| Category | Industrial Sensing |
| Part Number | UM30-213113 |
| Subcategory | Ultrasonic Distance Sensors |
| Manufacturer Article Number | 6036918 |
| Series | UM30 |
| Operating / Limiting Range | 200–1,300 mm / 2,000 mm |
| Ultrasonic Frequency | Typically 200 kHz |
| Resolution | ≥0.18 mm; analog output resolution 12 bit |
| Measurement Accuracy | ±1% of the current measured value, under specified conditions |
| Response / Output Time | 92 ms / 23 ms; analog smoothing can extend response time |
| Analog Output | One output; automatic current or voltage selection according to load |
| Current Output | 4–20 mA; load ≤500 Ω, reduced to ≤100 Ω at supply ≤20 V |
| Voltage Output | 0–10 V; load ≥100 kΩ |
| Supply Voltage | 9–30 VDC; 15–30 VDC required for voltage output |
| Power Consumption | ≤2.4 W without load |
| Connection / Mounting | M12 five-pin male connector / M30 × 1.5 thread |
| Housing / Dimensions | Nickel-plated brass and PBT / 30 × 30 × 84 mm |
| Environmental Ratings | IP65 / IP67; operating temperature −25°C to +70°C |
| Weight | 150 g (0.33 lb) |
Information About UM30-213113
The UM30-213113 is part of Sick’s UM30 family and carries manufacturer article number 6036918. Its cylindrical housing uses nickel-plated brass and an M30 × 1.5 mounting thread for installation in machine brackets. The analog interface automatically selects current or voltage output according to the connected load. Teach-in, output inversion, and synchronization functions allow the sensor to be configured for the application and surrounding sensors.
Key Features:
- Ultrasonic Measurement: Uses sound pulses to detect object distance without relying on optical reflectivity.
- Defined Operating Range: Provides a 200–1,300 mm operating range with a limiting range of 2,000 mm.
- Analog Output: Supplies either a 4–20 mA current signal or a 0–10 V voltage signal.
- Automatic Output Selection: Detects the connected load to select current or voltage operation.
- Configurable Scaling: Supports teach-in and inversion of the analog measurement span.
- Temperature Compensation: Adjusts measurement processing to account for temperature-related changes in sound velocity.
- Sensor Coordination: Supports synchronization and multiplex operation to reduce interference between nearby sensors.
- Local Indication: Includes an LED display and two LEDs for setup and operating feedback.
The UM30-213113 delivers the reliability and precision required for non-contact distance and level monitoring in industrial automation systems.
