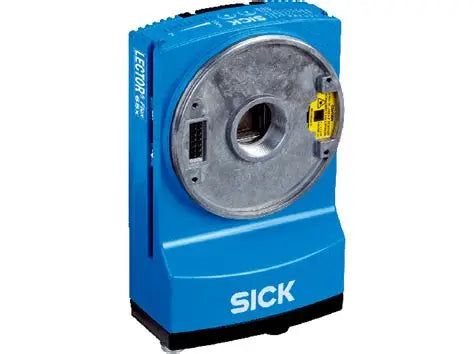

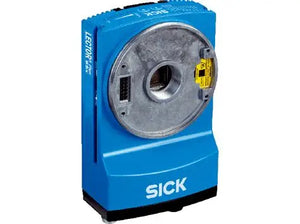

SICK V2D654R-MCXXA6 Lector65x 4.2 MP Industrial Image-Based Code Reader
- Regular price
- $5,999.00
- Sale price
- $5,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: V2D654R-MCXXA6
Description
The SICK V2D654R-MCXXA6 is a Lector65x image-based code reader designed for high-resolution identification of 1D barcodes, stacked codes, and 2D codes in industrial automation environments. It features a 4.2-megapixel CMOS sensor, manually adjustable focus, and multiple communication interfaces to support reliable code reading, product tracking, and inspection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Identification & Vision Systems |
| Part Number | V2D654R-MCXXA6 |
| Subcategory | Image-Based Code Readers |
| Manufacturer Order Number | 1060892 |
| Product Family | Lector65x |
| Device Variant | Main unit |
| Sensor Type | CMOS matrix sensor, grayscale |
| Sensor Resolution | 2,048 × 2,048 pixels (4.2 MP) |
| Scanning Frequency | 40 Hz at 4-megapixel resolution |
| Focus Adjustment | Manual |
| Reading Distance | 300–2,200 mm, depending on lens |
| Lens Mount | C-mount |
| Optical Format | 1 inch |
| Supported Code Types | 1D, stacked, and 2D codes |
| Communication Interfaces | Ethernet, PROFINET, EtherNet/IP, RS-232/RS-422, CAN |
| Supply Voltage | 24 V DC ±20% |
| Typical Power Consumption | 20 W ±20% |
| Enclosure Rating | IP65 |
| Housing Material | Aluminum die cast |
| Weight | 6.57 lb |
Information About V2D654R-MCXXA6
The V2D654R-MCXXA6 is the main-unit version of SICK’s Lector65x image-based code-reading system, with manufacturer order number 1060892. Its 2,048 × 2,048-pixel sensor captures grayscale images for code analysis at a scanning frequency of up to 40 Hz at 4-megapixel resolution. The unit supports a C-mount lens and separate illumination accessories, allowing the optics and lighting to be selected for the application. Ethernet, PROFINET, EtherNet/IP, serial, and CAN interfaces provide integration options for industrial identification systems.
Key Features:
-
High-Resolution Imaging: Uses a 4.2-megapixel CMOS matrix sensor with a resolution of 2,048 × 2,048 pixels.
-
Multi-Code Reading: Supports 1D barcodes, stacked codes, and 2D codes, including Data Matrix and QR codes.
-
Adjustable Focus: Offers manual optical focus adjustment to suit different reading distances and applications.
-
Flexible Reading Distance: Supports a working range of 300–2,200 mm, depending on the lens and field of view.
-
Industrial Communication: Supports Ethernet TCP/IP, PROFINET, EtherNet/IP, RS-232/RS-422 serial communication, and CAN.
-
Integrated Aiming Laser: Uses a visible red aiming laser with a wavelength of 630–680 nm.
-
Image Storage: Includes 512 MB of internal image storage for image-related data handling.
-
Industrial Protection: Features an IP65-rated housing and an aluminum die-cast enclosure.
The V2D654R-MCXXA6 delivers the imaging performance and connectivity required for automated traceability, packaging inspection, logistics, and production-line identification.
