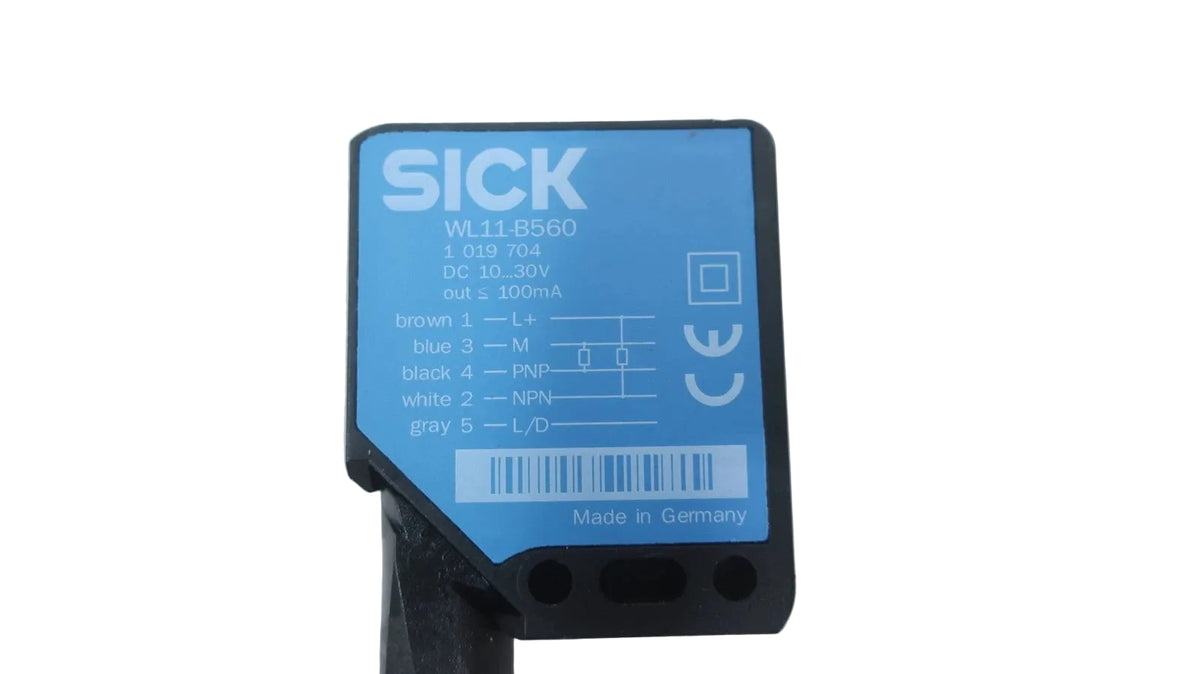

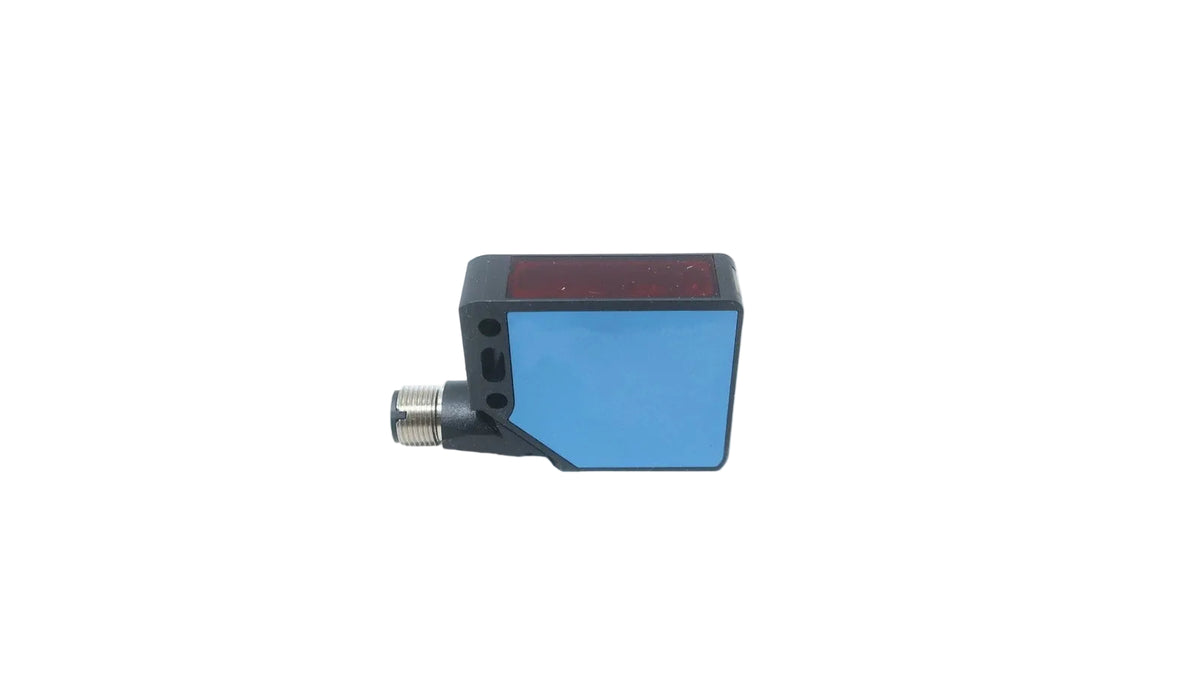

Sick WL11-B560 Retro-Reflective Photoelectric Sensor
- Regular price
- $645.00
- Sale price
- $645.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WL11-B560
Description
The Sick WL11-B560 is a retro-reflective photoelectric sensor designed for non-contact object detection in industrial automation and material handling systems. It uses visible red LED light to detect objects with a compatible reflector at distances of up to 4 m, making it suitable for conveyor systems and automated production equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Sick |
| Category | Industrial Automation |
| Part Number | WL11-B560 |
| Manufacturer Part Number | 1019704 |
| Subcategory | Retro-Reflective Photoelectric Sensors |
| Sensor Type | Photoelectric Retro-Reflective Sensor |
| Recommended Operating Range | Up to 3.5 m with PL80A reflector |
| Light Source | LED |
| Light Type | Visible Red Light |
| Supply Voltage | 10–30 V DC |
| Current Consumption | Up to 30 mA |
| Switching Outputs | PNP and NPN transistor outputs |
| Switching Mode | Light-on / Dark-on, selectable |
| Maximum Output Current | 100 mA |
| Response Time | Less than 625 µs |
| Switching Frequency | 800 Hz |
| Sensitivity Adjustment | Potentiometer |

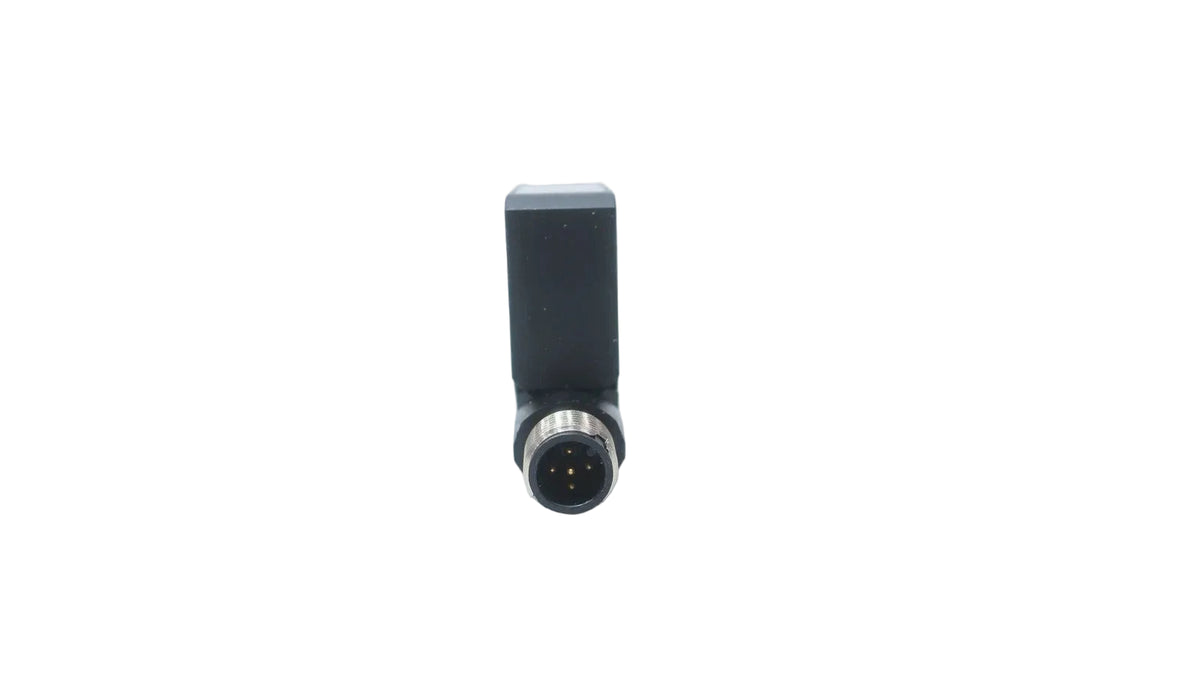

| Connection Type | M12, 5-pin male connector |
| Housing Material | ABS Plastic |
| Dimensions (W × H × D) | 15.2 × 51 × 43.5 mm |
| Operating Temperature | −20°C to +60°C |
| Storage Temperature | −20°C to +75°C |
| Weight | 32 g |
Information About WL11-B560
The WL11-B560 belongs to the Sick W11 series of photoelectric sensors and operates using a retro-reflective detection principle. The sensor emits visible red light toward a reflector and detects the returned light to determine whether an object interrupts the optical path. It supports both PNP and NPN switching outputs, with selectable light-on and dark-on switching modes. Sensitivity can be adjusted using the built-in potentiometer, while the five-pin M12 connector simplifies integration into compatible industrial control systems.
Key Features:
- Retro-Reflective Detection: Detects objects by monitoring light returned from a compatible reflector.
- Sensing Range: Provides a maximum typical sensing range of 4 m with the specified PL80A reflector.
- Visible Red Light: Uses an LED light source for straightforward optical alignment.
- Dual Switching Outputs: Supports PNP and NPN output configurations.
- Selectable Switching Modes: Supports light-on and dark-on operation.
- Industrial Protection: Features an IP65-rated enclosure and an ABS plastic housing.
The Sick WL11-B560 provides fast, adjustable object detection for industrial automation, packaging, and material handling applications.
