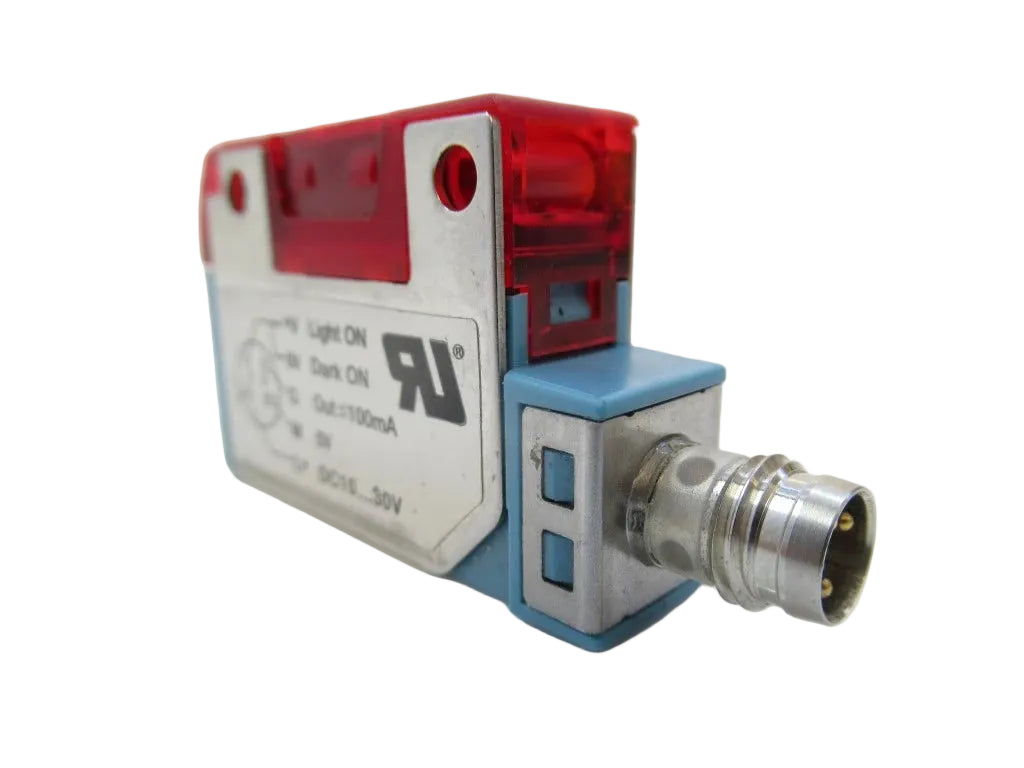

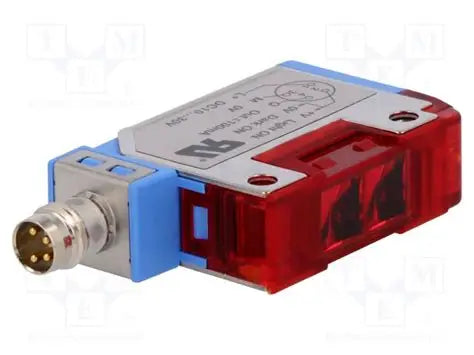

SICK WL170-P420 Photoelectric Retro-Reflective Sensor 10–30 V DC
- Regular price
- $149.00
- Sale price
- $149.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WL170-P420
Description
The SICK WL170-P420 is a photoelectric retro-reflective sensor designed to detect objects by evaluating reflected red LED light. It operates on a 10–30 V DC supply and features a PNP switching output, fast response time, and IP67 protection for use in industrial automation and object-detection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors |
| Part Number | WL170-P420 |
| Subcategory | Photoelectric Sensors |
| Sensor Type | Retro-reflective |
| Sensing Range | 0.1–0.8 m |
| Light Source | Visible red LED |
| Supply Voltage | 10–30 V DC |
| Switching Mode | Light-on / dark-on |
| Response Time | ≤ 0.7 ms |
| Connection | M8, 4-pin male |
| Housing Material | Stainless steel / ABS |
| Operating Temp. | -25 to +55°C |
| Dimensions | 12 × 37 × 28.6 mm |
| Weight | 66 g |
Information About WL170-P420
The WL170-P420 belongs to the SICK W170 series of photoelectric sensors and is identified by manufacturer part number 6010186. Its retro-reflective detection principle uses a reflector to return emitted light to the sensor, allowing it to detect objects interrupting the optical path. The sensor provides a PNP switching output and selectable light-on/dark-on operation through its control cable. Its compact rectangular housing, four-pin M8 connector, and IP67 enclosure rating support integration into compatible industrial automation systems.
Key Features:
- Retro-Reflective Detection: Detects objects by monitoring the light returned from a compatible reflector.
- Red LED Light Source: Uses visible red light for optical detection.
- Adjustable Switching Logic: Supports light-on and dark-on switching through the L/D control cable.
- PNP Output: Provides a PNP switching signal for compatible control systems.
- Fast Response: Offers a response time of up to 0.7 ms.
- Wide Supply Range: Operates on 10–30 V DC.
- M8 Connector: Uses a four-pin male connector for electrical connection.
The WL170-P420 provides fast, reliable photoelectric object detection for compatible industrial automation, material handling, and machine-control applications.
