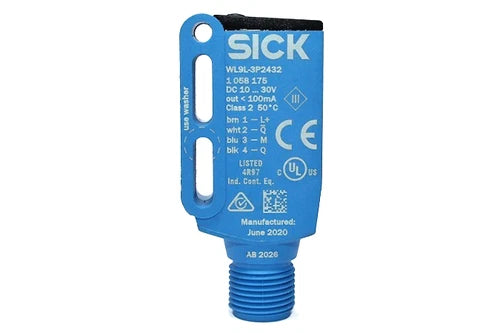

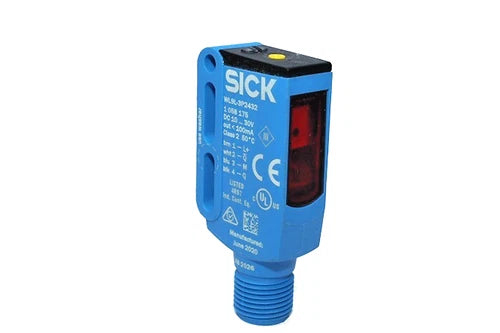

Sick WL9L-3P2432 Laser Retroreflective Photoelectric Sensor with Complementary PNP Outputs
- Regular price
- $259.00
- Sale price
- $259.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WL9L-3P2432
Description
The Sick WL9L-3P2432 is a laser retroreflective photoelectric sensor that detects objects interrupting the beam between the sensor and a compatible reflector. Its narrow visible red laser spot and complementary PNP outputs support small-object detection and presence monitoring in automated machinery.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Sick |
| Category | Industrial Sensing |
| Part Number | WL9L-3P2432 |
| Subcategory | Laser Retroreflective Sensors |
| Product Family | W9 / W9L-3 Laser |
| Detection Principle | Retroreflective sensing with autocollimation/coaxial optics |
| Specified Sensing Range | 0–8 m with PL80A reflector |
| Maximum Sensing Range | 0–12 m with PL80A reflector |
| Light Source / Wavelength | Visible red laser / 650 nm |
| Laser Class | Class 1 |
| Light Spot Size | Ø1 mm at 500 mm |
| Adjustment | Single teach-in button |
| Supply / Current Consumption | 10–30 VDC / 30 mA without load |
| Output Configuration | Complementary PNP outputs; light/dark switching |
| Maximum Output Current | 100 mA |
| Response / Switching Frequency | ≤0.5 ms / 1,000 Hz |
| Connection / Mounting | Four-pin M12 male connector / M3 mounting holes |
| Housing / Dimensions | VISTAL plastic / 12.2 × 52.2 × 23.6 mm (W × H × D) |
| Weight | 13 g (0.029 lb) |
Information About WL9L-3P2432
The WL9L-3P2432 is part of Sick’s W9L-3 laser sensor range and carries manufacturer article number 1058175. Its rectangular VISTAL housing incorporates PMMA optics and M3 mounting holes. Coaxial autocollimation optics allow operation without a minimum reflector distance. A single teach-in button sets the detection threshold, while the four-pin M12 connector links the sensor to compatible machine controls.
Key Features:
- Retroreflective Detection: Detects beam interruption using a compatible reflector opposite the sensor.
- Coaxial Optics: Allows the reflector to be positioned without a minimum separation distance.
- Fine Laser Spot: Produces a Ø1 mm spot at 500 mm for detecting small targets.
- Complementary PNP Outputs: Provides opposing light and dark switching signals.
- Single-Button Teach-In: Sets the sensing threshold through one local button.
- Fast Switching: Supports 1,000 Hz operation with a response time of ≤0.5 ms.
- Compact Mounting: Uses M3 mounting holes for installation in limited machine spaces.
- Protected Housing: Provides IP66, IP67, and IP69K enclosure ratings.
The WL9L-3P2432 delivers the reliability and precision required for small-object detection and beam-interruption monitoring in industrial automation.
