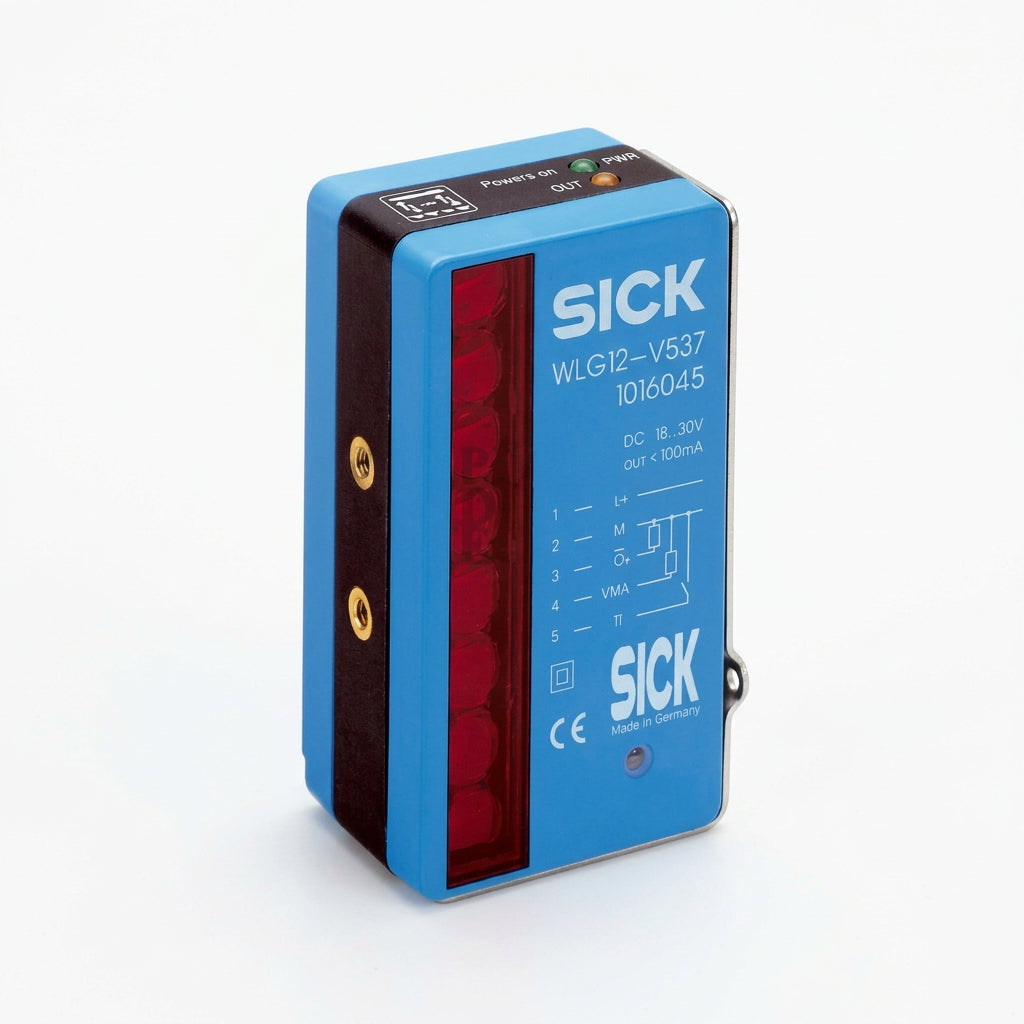

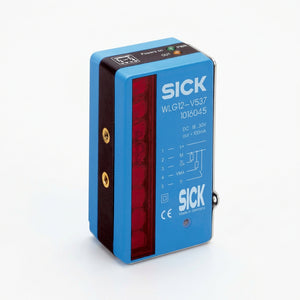

SICK WLG12-P537 Retro-Reflective Light Grid Sensor, 8 Beams, 1.5 m Range, IP67
- Regular price
- $1,085.00
- Sale price
- $1,085.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WLG12-P537
Description
The SICK WLG12-P537 is a retro-reflective automation light grid designed to detect small objects and interruptions in a monitored area. With eight parallel beams, adjustable detection resolution, and a sensing range of up to 1.5 m, it supports high-speed object detection and inspection on automated production lines.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation |
| Part Number | WLG12-P537 |
| Subcategory | Photoelectric Sensors |
| Manufacturer Part Number | 1015798 |
| Product Type | Retro-reflective automation light grid |
| Series | WLG12 |
| Number of Beams | 8 |
| Detection Height | 87.5 mm |
| Detection Range | Up to 1.5 m |
| Supply Voltage | 18–30 VDC |
| Response Time | Approx. 0.6 ms |
| Connection | M12 male connector, 5-pin |
| Protection Rating | IP67 |
| Housing Material | Plastic |
| Dimensions (W × H × D) | 62 × 106 × 46.6 mm |
| Performance Level | PL d, EN ISO 13849 |
| Safety Category | Category 3, EN ISO 13849 |
| Supply Voltage | 24 VDC nominal; 16.8–28.8 VDC |
| Power Consumption | 0.8 A without output load; up to 2.3 A at maximum output load |
| Communication Interface | RS-422 measured-data output; SICK EFI communication |
| Laser Class | Class 1 |
| Enclosure Rating | IP65 |
| Operating Temperature | −10 to +50 °C |
| Storage Temperature | −25 to +50 °C |
| Dimensions (W × H × D) | 155 × 185 × 160 mm |
| Housing Material | Die-cast aluminum |
| Front Screen Material | Polycarbonate with external scratch-resistant coating |
| System Plug | Not included; compatible system plug required |
| Weight | 230 g |
Information About WLG12-P537
The WLG12-P537 belongs to SICK’s WLG12 series of switching automation light grids and uses red visible light at a wavelength of 650 nm. Its eight beams provide an 87.5 mm detection height, with adjustable resolution depending on the operating range and reflector configuration. The sensor features two PNP switching outputs, an M12 five-pin connector, and a teach-in input for setup. Its IP67-rated plastic housing supports use in industrial environments where dust and moisture protection are required.
Key Features:
-
Eight-Beam Detection: Monitors an 87.5 mm detection height for object detection and inspection.
-
Adjustable Resolution: Supports detection of objects approximately 6–12.5 mm in size, depending on range.
-
1.5 m Operating Range: Enables detection over distances up to 1.5 m with the specified reflector setup.
-
Fast Response: Provides a response time of approximately 0.6 ms with a resistive load.
-
Dual PNP Outputs: Supplies switching signals for compatible PLCs and automation controllers.
-
Teach-In Setup: Supports sensitivity adjustment for different detection conditions.
-
M12 Connector: Uses a five-pin male connector for electrical integration.
-
IP67 Protection: Provides dust-tight construction and protection against temporary immersion under specified conditions.
The WLG12-P537 delivers the reliability and precision required for small-object detection, automated inspection, and production-line monitoring.
