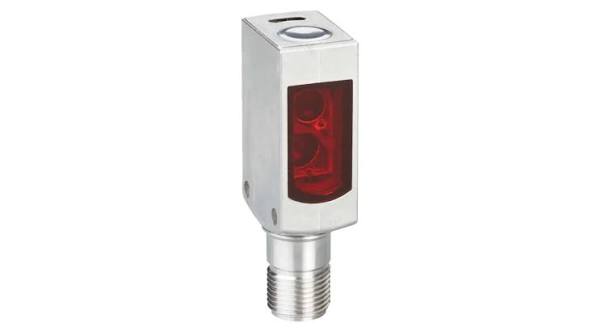

SICK WLG4S-3P2234VS06 Retro-Reflective Sensor for Transparent Objects
- Regular price
- $502.00
- Sale price
- $502.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WLG4S-3P2234VS06
Description
The SICK WLG4S-3P2234VS06 is a photoelectric retro-reflective sensor designed to detect transparent objects in hygienic and washdown environments. Its stainless steel housing, visible red PinPoint LED, and PNP output support non-contact detection in packaging and processing equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors & Switches |
| Part Number | DT50-P1113 |
| Subcategory | Proximity Switch |
| Series | Dx50 |
| Manufacturer Part Number | 1044369 |
| Measurement Technology | Time-of-flight (ToF) |
| Measuring Range | 200–10,000 mm at 90% remission; 200–6,500 mm at 18%; 200–4,000 mm at 6% |
| Resolution | 1 mm |
| Measurement Accuracy | ±10 mm at 90% remission |
| Light Source | Visible red laser, Class 2 |
| Supply Voltage | 10–30 V DC |
| Digital Output | 1 PNP switching output |
| Analog Output | Scalable 4–20 mA current output |
| Response Time | 20 ms / 30 ms, depending on averaging setting |
| Connection Type | M12 male connector, 5-pin |
| Housing Material | Zinc die-cast metal |
| Enclosure Rating | IP65 |
| Display | LC display with 2 LED indicators |
| Weight | 0.44 lbs |
Information About WLG4S-3P2234VS06
The WLG4S-3P2234VS06 is an autocollimation-based sensor with polarization filters for retro-reflective detection. It provides an operating sensing range up to 3 m and a maximum range up to 5 m. A single teach-in button and an external teach input on pin 2 allow sensitivity adjustment during installation or machine setup. Its slim V4A stainless steel housing and M8 4-pin connector support installation where space and material suitability are key considerations.
Key Features:
- Transparent Object Detection: Detects clear objects in packaging and processing lines.
- Autocollimation Technology: Uses an autocollimation optical arrangement for retro-reflective sensing.
- Polarization Filters: Includes polarization filtering for detection with a reflector.
- PinPoint LED: Emits visible red light at 650 nm to support sensor alignment.
- PNP Output: Provides a switching output rated for a maximum current of 100 mA.
- Fast Detection: Combines a response time below 0.5 ms with a 1,000 Hz switching frequency.
- Teach-In Adjustment: Supports configuration through a single button or an external teach input on pin 2.
- Stainless Steel Housing: Uses V4A stainless steel for applications in hygienic and washdown zones.
The WLG4S-3P2234VS06 delivers the reliability and precision required for transparent object detection in automated packaging and processing equipment.
