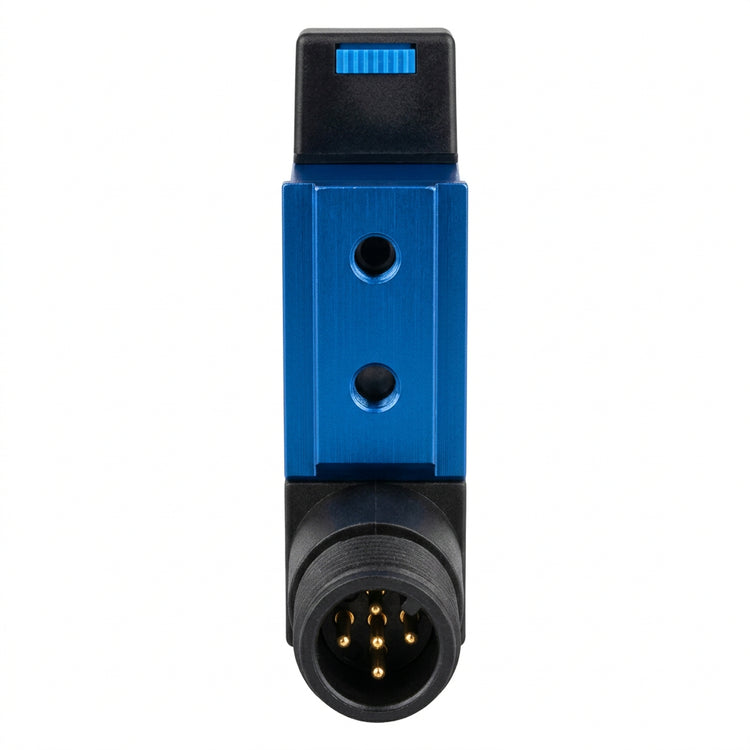

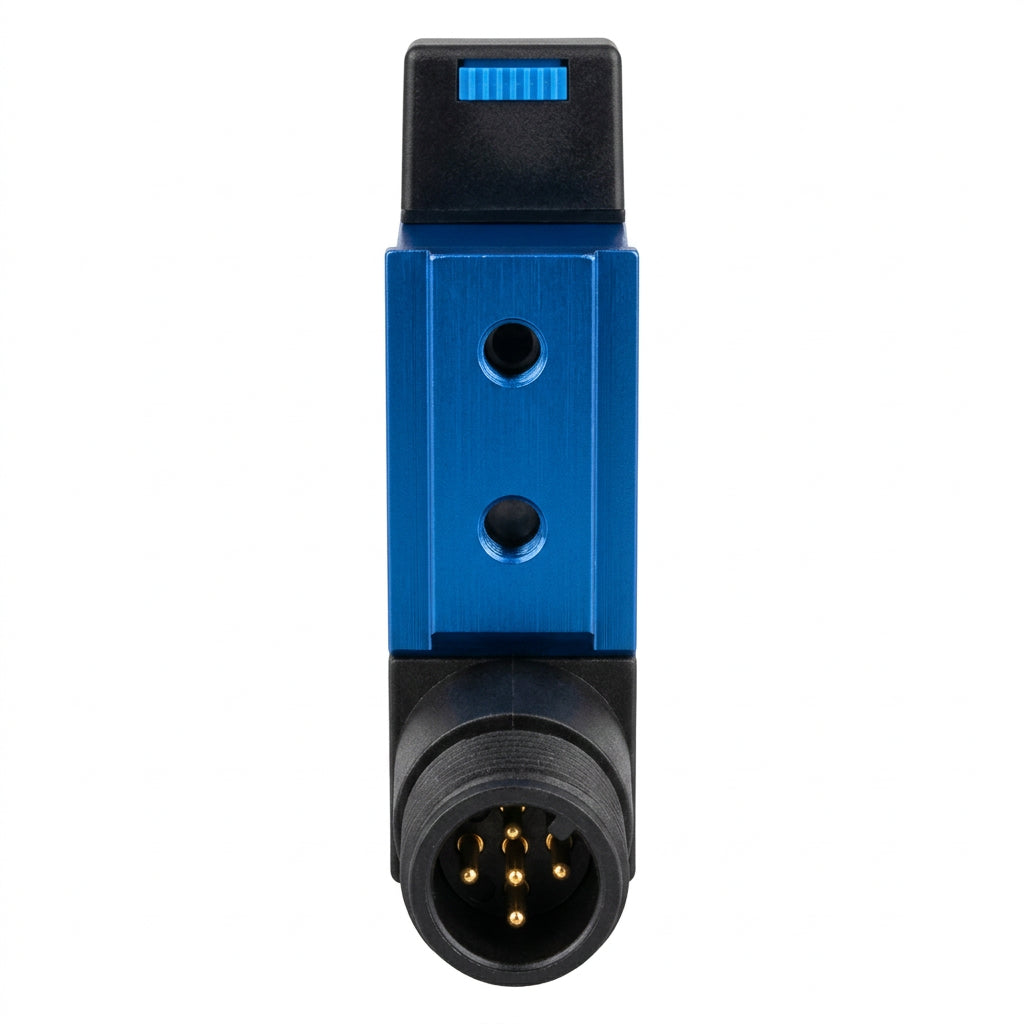

Sick WLL12-B5181 Fiber Optic Photoelectric Sensor Amplifier with PNP and NPN Outputs
- Regular price
- $592.00
- Sale price
- $592.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WLL12-B5181
Description
The Sick WLL12-B5181 is a photoelectric sensor amplifier for compatible fiber optic cables, used to detect objects where a remote sensing head is required. It provides PNP and NPN outputs, adjustable sensitivity, and a response time of ≤360 µs for machine automation and object detection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Sick |
| Category | Industrial Sensing |
| Part Number | WLL12-B5181 |
| Subcategory | Fiber Optic Sensor Amplifiers |
| Product Group | W12-2 |
| Detection System | Photoelectric sensing with compatible fiber optic cables |
| Specified Sensing Range | 0–280 mm; for a target with 90% remission and suitable fiber configuration |
| Light Source | Visible red LED |
| Adjustment | Sensitivity potentiometer |
| Supply Voltage | 10–30 VDC |
| Current Consumption | 35 mA without load |
| Switching Outputs | PNP and NPN |
| Switching Mode | Selectable light/dark switching |
| Maximum Output Current | 100 mA |
| Response / Switching Frequency | ≤360 µs / 1,300 Hz |
| Electrical Connection | M12 male connector, five-pin |
| Housing / Dimensions | Zinc die-cast; 15 × 49 × 53 mm (W × H × D) |
| Environmental Ratings | IP67; operating temperature −25°C to +60°C |
| Weight | 130 g (0.287 lb) |
Information About WLL12-B5181

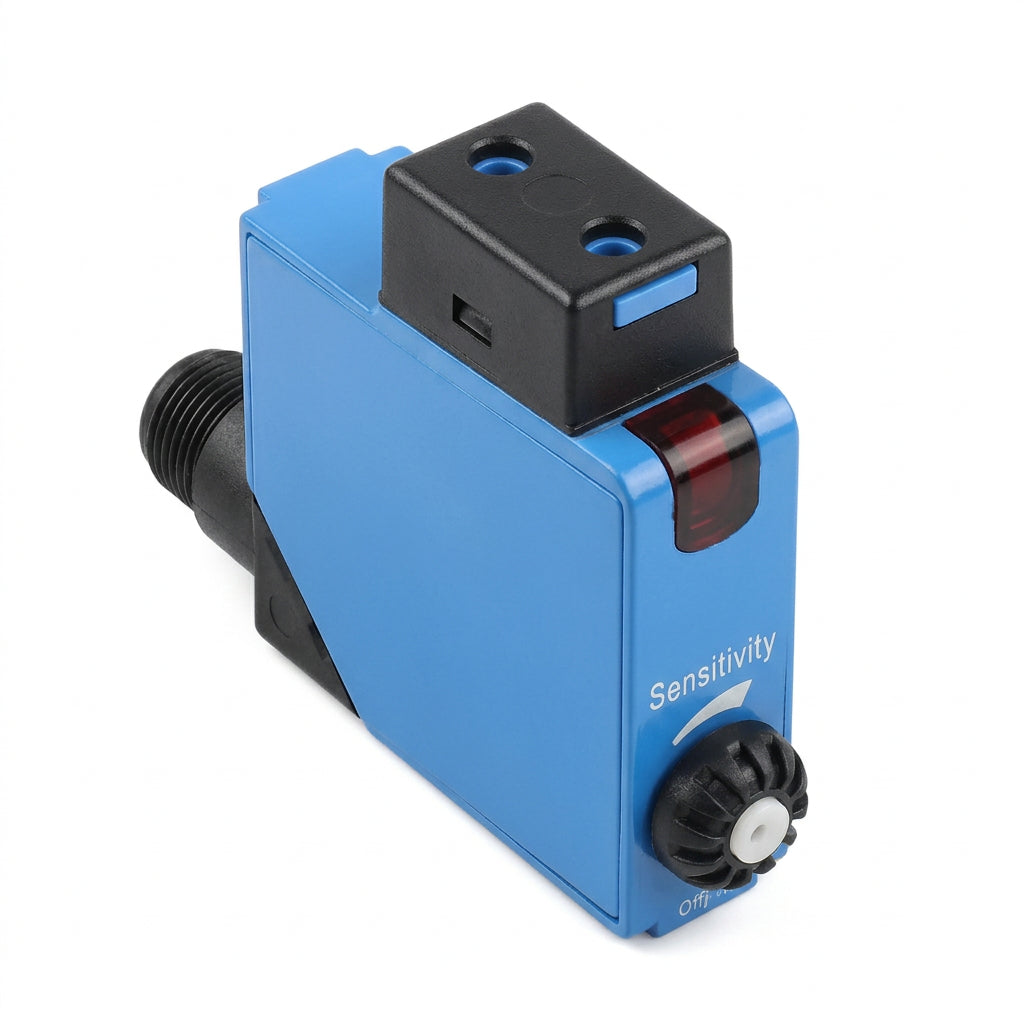

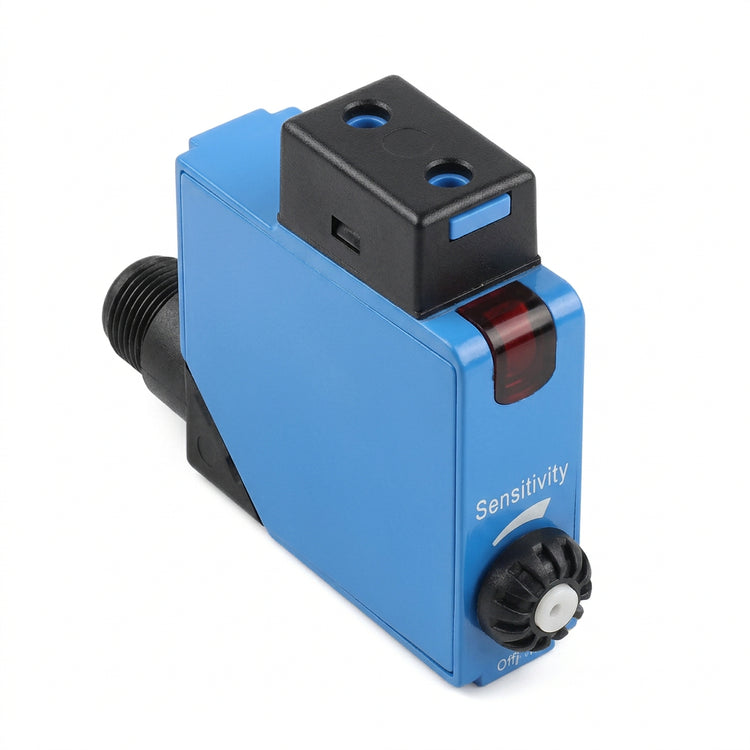

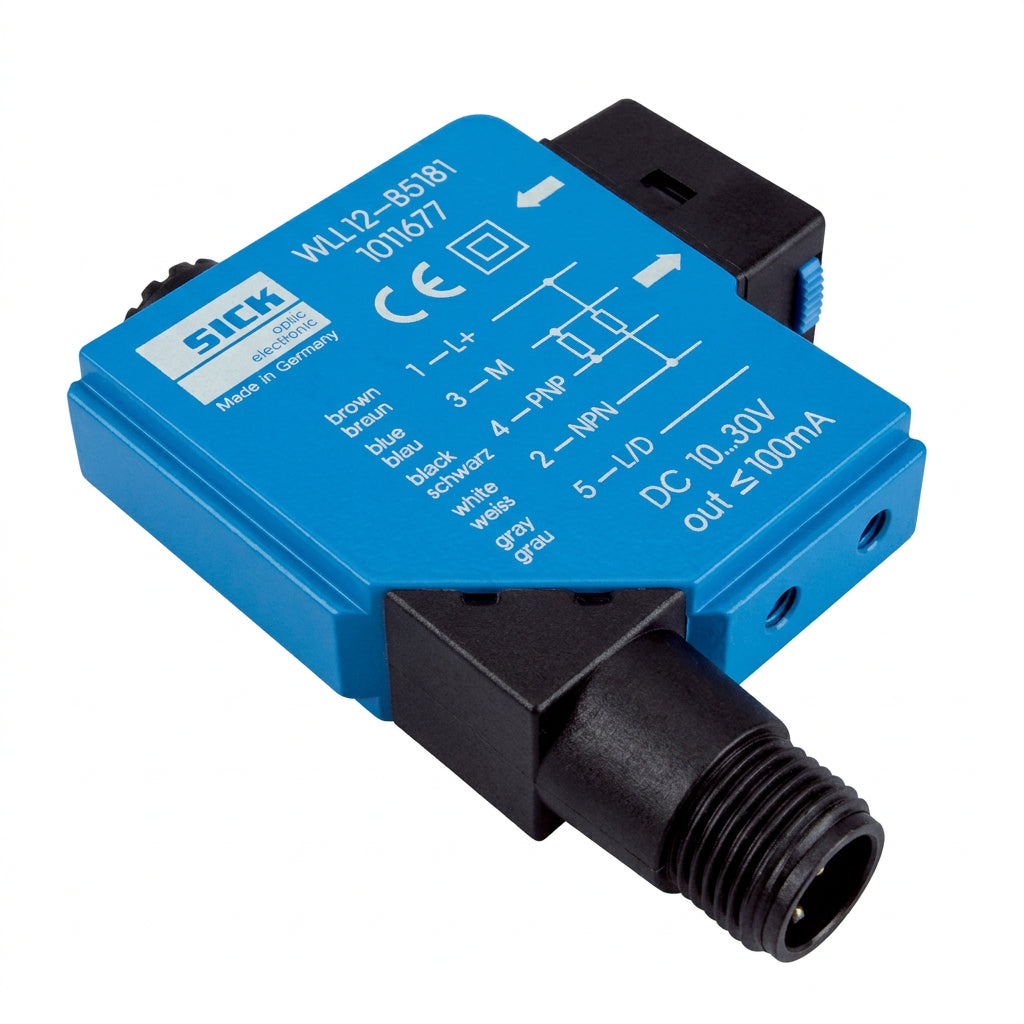

The WLL12-B5181 is associated with Sick’s W12-2 product group and carries manufacturer article number 1011677. Its rectangular zinc die-cast housing contains the light source, evaluation electronics, and sensitivity control. Compatible fiber optic cables carry light between the amplifier and the detection location, with achievable range depending on the selected fiber arrangement and target. A five-pin M12 male connector provides the supply, output, and light/dark selection connections.
Key Features:
- Fiber Optic Operation: Works with compatible fiber optic cables to position the sensing head separately from the amplifier.
- PNP/NPN Outputs: Provides output connections for compatible sourcing and sinking control inputs.
- Adjustable Sensitivity: Uses a potentiometer to set the detection threshold.
- Light/Dark Switching: Supports selection of the required output switching behavior.
- Fast Response: Evaluates received light with a response time of ≤360 µs.
- Visible Red LED: Supplies red light through the connected fiber optic system.
- M12 Connection: Uses a five-pin male connector for electrical integration.
- Metal Housing: Combines a zinc die-cast body with an IP67 enclosure rating.
The WLL12-B5181 delivers the reliability and precision required for fiber optic object detection and automated machine sequencing.
