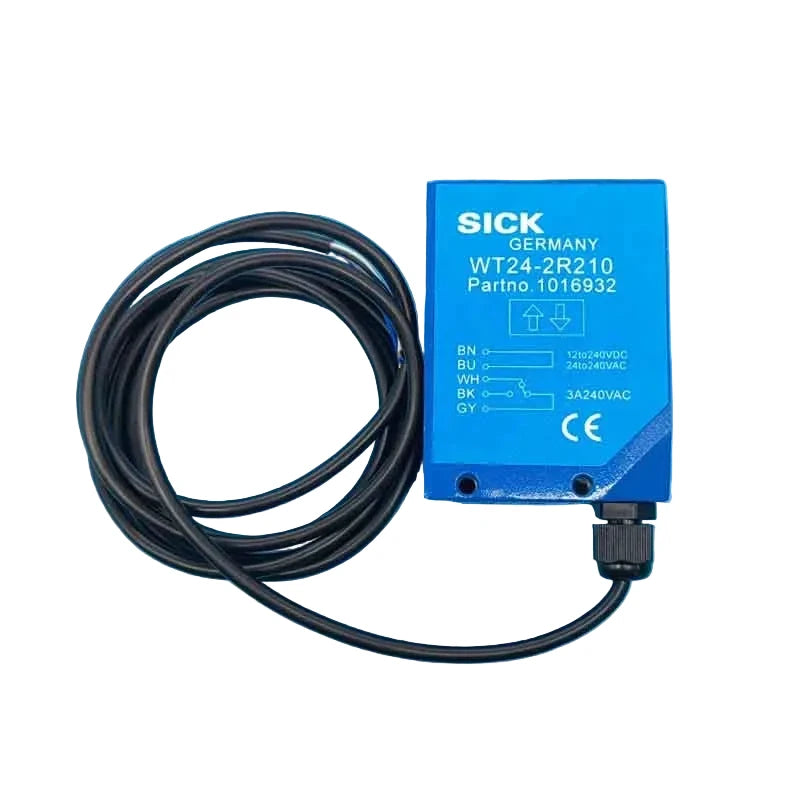

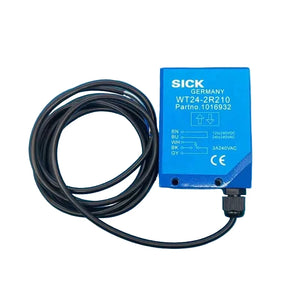

SICK WT24-2R210 Photoelectric Proximity Sensor with Background Suppression
- Regular price
- $159.00
- Sale price
- $159.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WT24-2R210
Description
The SICK WT24-2R210 is a compact photoelectric proximity sensor designed for reliable object detection in industrial automation systems. It uses infrared light and background suppression to detect objects at distances of up to 2.5 m. The sensor features a relay output, adjustable light/dark switching, and a durable metal housing for industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | WT24-2R210 |
| Subcategory | Photoelectric Sensors |
| Product Series | W24-2 |
| Sensor Type | Photoelectric proximity sensor |
| Detection Principle | Background suppression |
| Light Source | Infrared LED |
| Sensing Range | 100 mm–2,500 mm |
| Supply Voltage | 10–30 V DC |
| Output Type | Relay |
| Output Function | Changeover contacts |
| Switching Mode | Selectable light/dark switching |
| Response Time | ≤ 10 ms |
| Switching Frequency | 10 Hz |
| Connection Type | Terminal connection with M16 gland |
| Housing Material | Zinc die-cast metal |
| Optics Material | PMMA plastic |
| Dimensions (W × H × D) | 27 × 87.5 × 65 mm |
| Enclosure Rating | IP67 |
| Operating Temperature | −40 °C to +60 °C |
| Protection Class | II |
| Weight | 0.73 lb |
Information About WT24-2R210
The WT24-2R210 belongs to SICK’s W24-2 series of photoelectric sensors. Its background suppression detection principle helps distinguish target objects from their surroundings. The sensor operates with a 10–30 V DC supply and provides electrically isolated changeover contacts for switching. Its IP67 enclosure and wide operating temperature range support installation in demanding industrial environments.
Key Features:
-
Photoelectric Detection: Detects objects using infrared light.
-
Background Suppression: Helps reduce interference from background surfaces.
-
Sensing Range: Adjustable detection range from 100 mm to 2,500 mm.
-
Relay Output: Provides electrically isolated changeover contacts.
-
Supply Voltage: Supports 10–30 V DC operation.
-
Switching Performance: Response time of 10 ms with a switching frequency of 10 Hz.
-
Industrial Housing: Zinc die-cast metal housing with plastic PMMA optics.
-
Environmental Protection: IP67-rated enclosure for protection against dust and water ingress.
The WT24-2R210 delivers the reliability and precision required for industrial object detection, conveyor monitoring, and automated material handling applications.
